Photo 1 of 5

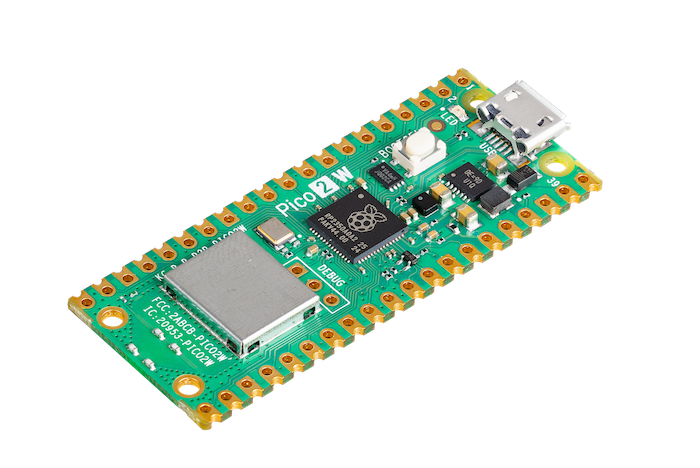

Raspberry Pi Pico 2 W · Raspberry Pi official documentation photograph; complete supplied canvas, background and native alpha retained.
Raspberry Pi · Pico
Pico 2 W
Raspberry Pi Pico 2 with 2.4GHz Wi-Fi and Bluetooth added, a microcontroller board with two 150MHz Arm Cortex-M33 or Hazard3 RISC-V cores, 520 KB of SRAM and 4 MB of flash, for connected projects rather than running Linux.
- Processor
- Raspberry Pi RP2350 (Arm Cortex-M33 or Hazard3 RISC-V)
- Clock
- 0.15 GHz
- Memory
- 520 KB
- Wi-Fi
- Yes
Specifications
Report a wrong or missing specPerformance
- Processor
- Raspberry Pi RP2350 (Arm Cortex-M33 or Hazard3 RISC-V)
- CPU cores
- 2
- Clock
- 0.15 GHz
- Memory
- 520 KB
- CPU
- Dual Arm Cortex-M33 or dual Hazard3 RISC-V cores at up to 150MHz; Arm TrustZone for Cortex-M, signed boot, 8KB antifuse OTP, SHA-256 acceleration, hardware TRNG
- Memory
- 520KB on-chip SRAM
- Storage
- 4MB on-board QSPI flash
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- No
- USB ports
- 1
- Display outputs
- 0
- GPIO pins
- 40
- PCIe
- No
- Ports
- Micro USB for power and data (USB 1.1 controller and PHY with host and device support); 2 × UART, 2 × SPI, 2 × I2C, 16 × PWM channels, 12 × PIO state machines
- Wi-Fi and Bluetooth
- Infineon CYW43439; single-band 2.4GHz Wi-Fi 4 (802.11n) with WPA3 and SoftAP for up to 4 clients; Bluetooth 5.2 with LE Central and Peripheral roles and Bluetooth Classic; on-board antenna
- GPIO
- 40-pin 0.1″ through-hole pads with castellated edges; 26 multi-purpose GPIO, 3 of which can be used for ADC; header not fitted unless bought with headers
Design
- Size
- 21 × 51 mm
- Power
- 1.8–5.5V DC
- Size
- 21 × 51 × 1 mm
- Operating temperature
- −20°C to +70°C
Pros and cons
Pros
- 802.11n Wi-Fi with WPA3 and Bluetooth 5.2 on board
- Twice the SRAM and flash of Pico W, and a faster 150MHz clock
- Arm TrustZone, signed boot and SHA-256 acceleration
Cons
- Microcontroller, not a Linux computer; 520KB of SRAM
- Rated to 70°C, against 85°C for Pico 2
- Micro USB, USB 1.1 only
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Raspberry Pi RP2350 (Arm Cortex-M33 or Hazard3 RISC-V) | 0.15 GHz | 520 KB | No | Aug 2024 | |
| Raspberry Pi RP2040 (Arm Cortex-M0+) | 0.133 GHz | 264 KB | Yes | Jun 2022 | |
| Raspberry Pi RP2040 (Arm Cortex-M0+) | 0.133 GHz | 264 KB | No | Jan 2021 |
Previous model: Pico W.
Sources
- pip-assets.raspberrypi.com/categories/1088-raspberry-pi-pico-2-w/documents/RP-0…
- pip-assets.raspberrypi.com/categories/1088-raspberry-pi-pico-2-w/documents/RP-0…
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- raspberrypi.com/news/raspberry-pi-pico-2-w-on-sale-now

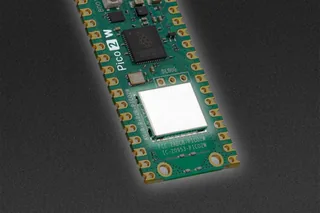

- Raspberry Pi Pico 2 W board on a dark studio background: Raspberry Pi official product gallery; complete supplied canvas, background and native alpha retained.

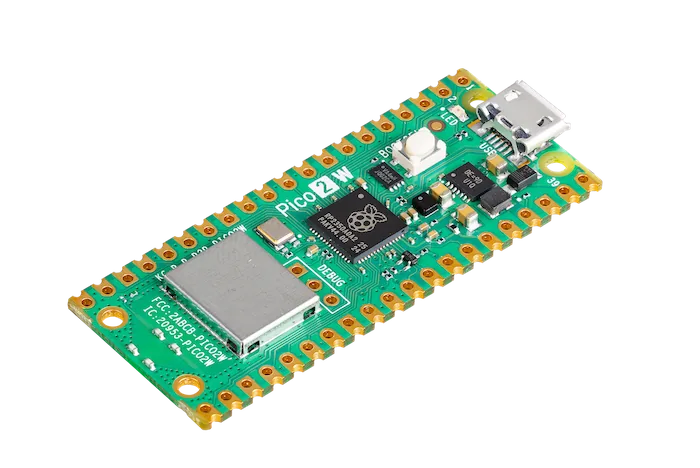

- Raspberry Pi Pico 2 W board, studio angle photograph: Raspberry Pi official launch photograph; complete supplied canvas, background and native alpha retained.

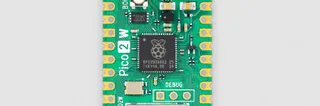

- Raspberry Pi Pico 2 W RP2350 and debug contacts, supplied board close-up: Raspberry Pi official launch photograph; complete supplied canvas, background and native alpha retained.

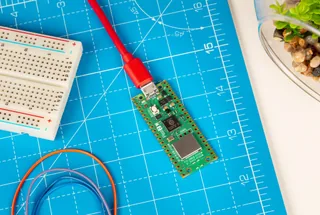

- Raspberry Pi Pico 2 W connected on a blue work mat: Raspberry Pi official launch photograph; complete supplied canvas, background and native alpha retained.
