Microlife · BP
BP AG1-30

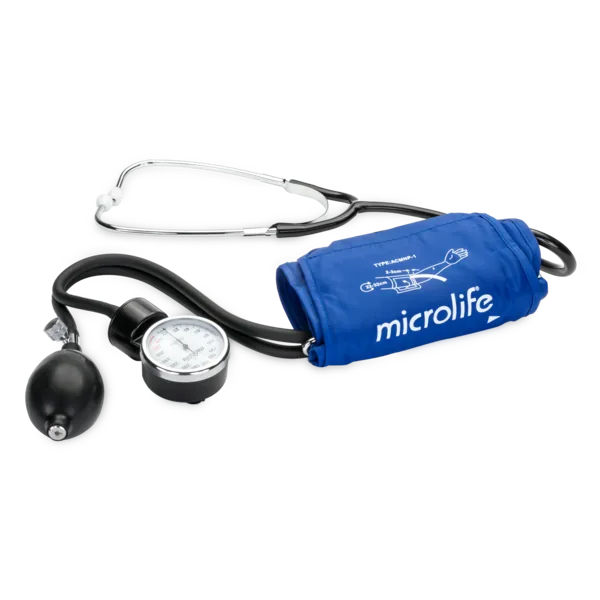

A manual upper-arm blood pressure kit with an aneroid gauge, hand pump, 22–32 cm cuff and built-in stethoscope.
- Type
- Upper arm
- Users
- –
- App
- No
- Validated
- –
Product links
Specifications
Report a wrong or missing specMeasuring
- Type
- Upper arm
- Irregular heartbeat detection
- No
- AFib detection or ECG
- No
- Method
- Fully manual auscultatory upper-arm measurement using stethoscope and aneroid gauge. Hand inflation and screw-controlled deflation; readings interpreted by the operator. Current guide specifies trained auscultatory users and adults over 18, at home or in healthcare environments. Actual first retail date unresolved
- Accuracy
- June 2025 exact guide gives 0–300 mmHg range, 2 mmHg scale divisions, static accuracy within ±3 mmHg and air leakage under ±4 mmHg/min. Same guide has at-least-six-month recalibration wording and a two-month accuracy-testing interval; these differing maintenance statements are not combined into a single interval
- Clinical validation
- Current guide cites EN ISO 81060-1 and Class Im compliance with EU Medical Device Regulation. Regulatory compliance is separate from independent clinical validation; exact independent validation unresolved and headline omitted
- Features
- Mechanical dial, pump ball and adjustable deflation valve. Ukrainian maker identifies built-in stethoscope. No automatic pressure or pulse calculation, irregular-heartbeat screening, AFib detection or ECG
Cuff
- Cuff fits
- 22–32 cm
- Cuff
- Supplied soft M 22–32 cm cuff established by current global guide and Asia-Pacific product page; Ukrainian maker specifies a cuff ring
Connections and memory
- Bluetooth and app
- No
- Memory
- No electronic storage; readings, date and time recorded separately by the operator
- App
- No Bluetooth, USB or phone app
- Power
- Mechanical operation without batteries or mains power
Design
- Display details
- Analogue manometer with pointer; no LCD
- Size
- 175 × 70 × 103 mm and 450 g in global support and Asia-Pacific product page. Current exact guide states weight up to 450 g; component weights not separated
- In the box
- Asia-Pacific maker lists sphygmomanometer, stethoscope, M22–32 cuff, bulb and valve, and soft bag. Current guide identifies manometer, cuff, pump ball, valve, stethoscope, chestpiece and earpieces
Pros and cons
Pros
- No batteries required
- Built-in stethoscope
- Soft carrying bag supplied
Cons
- Requires manual listening and reading
- No electronic memory or app
- Manual inflation and deflation
