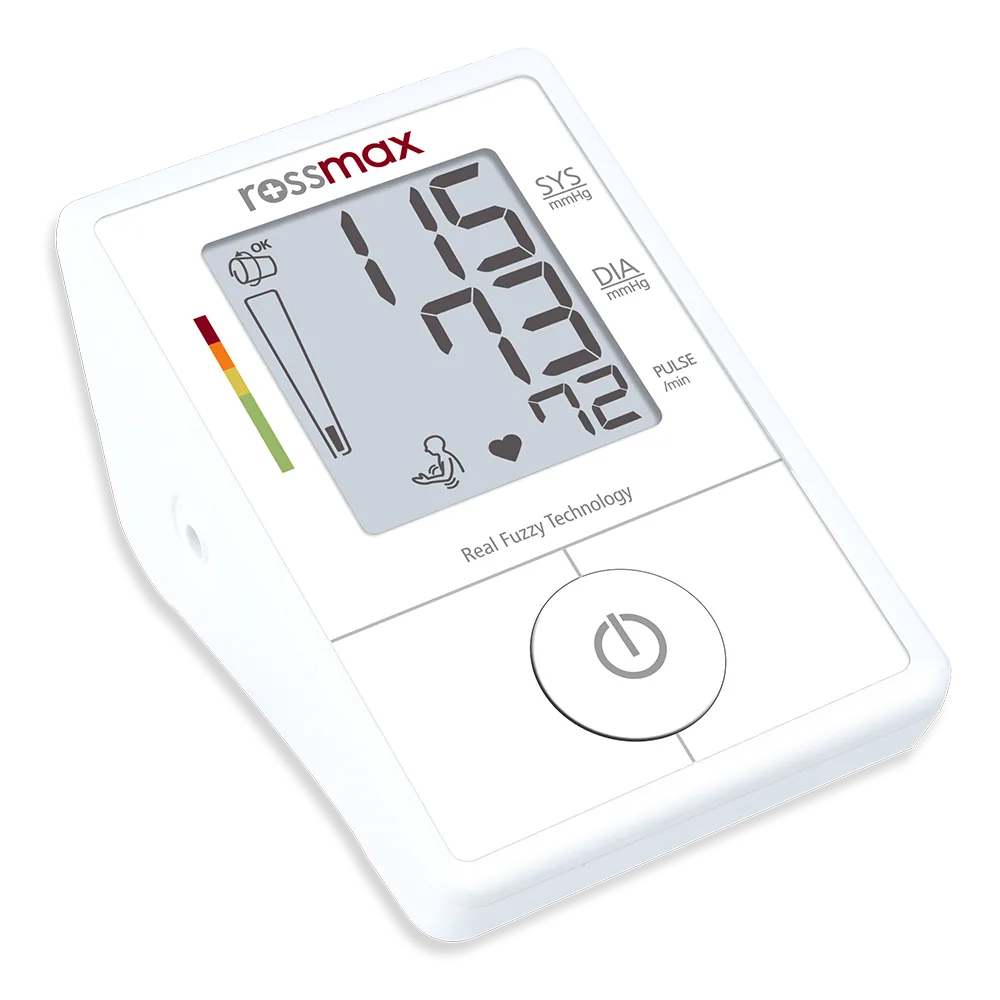

Rossmax X1 · Photo source
X1
An automatic upper-arm monitor with cuff-fit and movement indicators and recall of the latest reading.
- Type
- Upper arm
- Users
- 1
- App
- No
- Validated
- –
Product links
Specifications
Report a wrong or missing specMeasuring
- Type
- Upper arm
- Irregular heartbeat detection
- Yes
- AFib detection or ECG
- No
- Method
- Automatic oscillometric upper-arm measurement during deflation, with semiconductor pressure sensor. First-sale date unresolved
- Accuracy
- Pressure 30–260 mmHg; pulse 40–199 bpm. Maker accuracy ±3 mmHg pressure and ±5% pulse
- Clinical validation
- Maker claims ESH approval. Medaval distinguishes X1 revisions; V1 equivalence evidence is unpublished and V2 has no recovered peer-reviewed validation. Exact hardware mapping unresolved; headline validation omitted
- Features
- Cuff-fit and movement detection, hypertension risk indicator and generic irregular-heartbeat indication, not specific AFib detection or ECG
Cuff
- Cuff fits
- 24–40 cm
- Cuff
- Latex-free Universal Cone Cuff, 24–40 cm
Connections and memory
- Users
- 1
- Readings stored
- 1
- Bluetooth and app
- No
- Memory
- Last reading appears for two seconds at start-up. No dated history or separate users
- App
- No Bluetooth. Current guide labels a data-link socket but does not establish a usable PC-transfer function
- Power
- Four AAA cells, DC 6 V; optional DC 6 V adaptor rated at least 600 mA. Automatic shutdown after one minute without key operation
Design
- Display details
- 55 × 63 mm LCD in maker product page. IP21
- Size
- 85 × 129.8 × 68.2 mm (L × W × H); 226 g without batteries
- In the box
- Maker lists batteries, Universal Cone Cuff, instruction manual and string bag. Mains adaptor optional
Pros and cons
Pros
- Cuff-fit and movement indicators
- Optional mains power
- Latex-free cone cuff
Cons
- Stores only the latest reading
- No separate user histories
- No Bluetooth
Closest rivals
Model | Type | Users | App | Validated | Released |
|---|---|---|---|---|---|
| Upper arm | – | No | – | – | |
| Upper arm | – | No | – | – | |
| Upper arm | – | No | – | – |
Sources
- rossmax.com/en/products/monitoring/blood-pressure-monitors.html
- rossmax.com/images/downloads/OBM_IB_X12NA9_V19_SWCMC_ver2403.pdf
- rossmax.com/downloads/IBs/OBM_IB_X1%282%29_V9_SW.pdf
- medaval.ie/resources/EN/devices/Rossmax-X1-V1.php
- medaval.ie/resources/EN/devices/Rossmax-X1-V2.html
- rossmax.com/downloads/Epaper/Epaper_X1_EN.pdf
Photo: rossmax.com

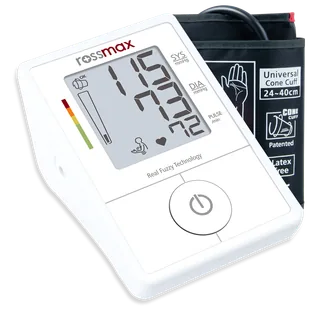

- Rossmax X1 with its 24–40 cm Universal Cone Cuff: rossmax.com/images/products/X1/X1_PP_002.png

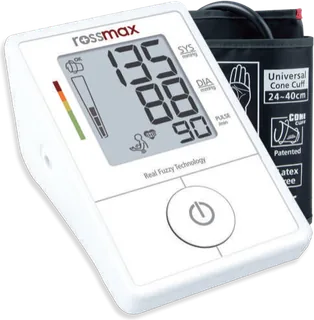

- Rossmax X1 with cuff and the illustrative display shown in the fifth-generation maker brochure: rossmax.com/downloads/Flyer/OBM_OP_5thBPM_EN.pdf

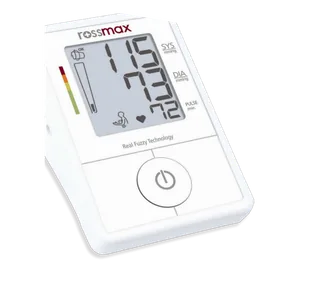

- Rossmax X1 monitor, upright device-only photograph from the maker epaper: Rossmax exact-model epaper complete embedded product photograph; supplied canvas and native alpha preserved.
