Photo 1 of 6

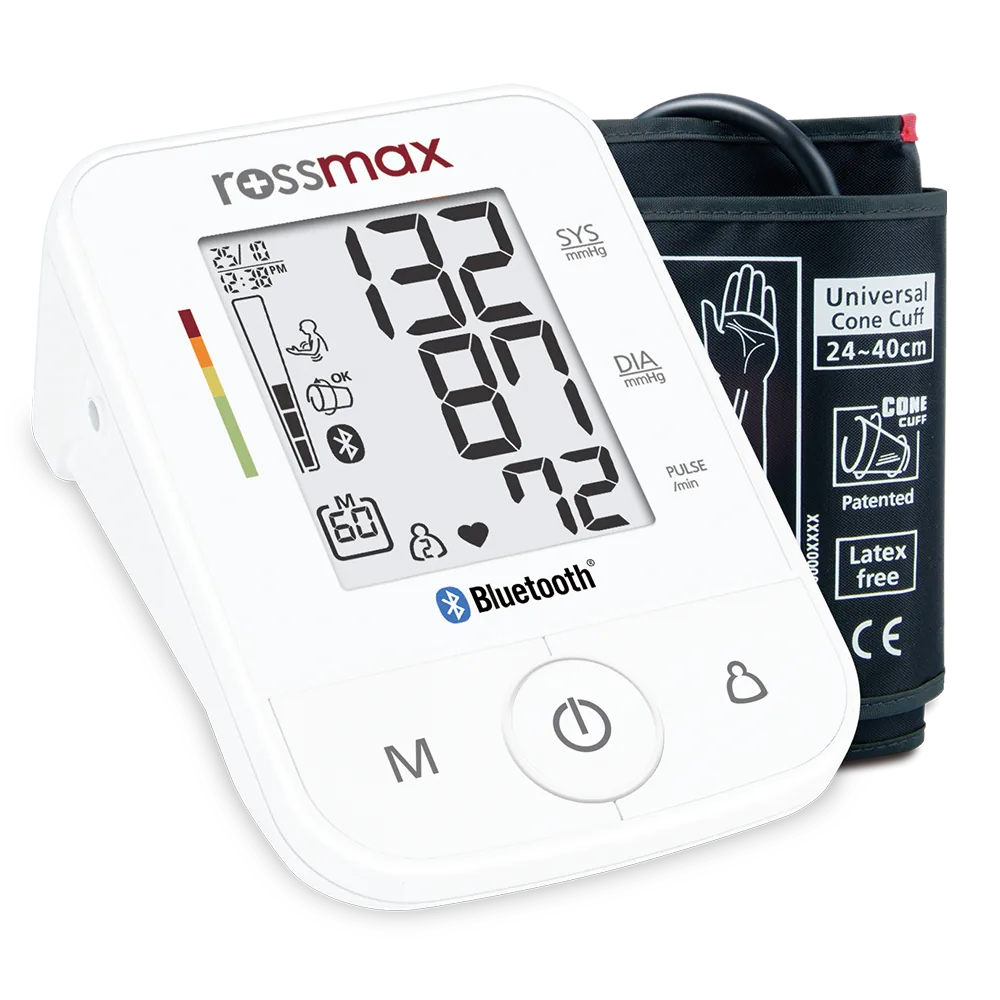

Rossmax X3 BT · Photo source
X3 BT
An automatic upper-arm monitor with Bluetooth, two 60-reading histories and a non-storing guest mode.
- Type
- Upper arm
- Users
- 2
- App
- Yes
- Validated
- –
Product links
Specifications
Report a wrong or missing specMeasuring
- Type
- Upper arm
- Irregular heartbeat detection
- Yes
- AFib detection or ECG
- No
- Method
- Automatic oscillometric upper-arm measurement during deflation, with semiconductor pressure sensor. First-sale date unresolved
- Accuracy
- Pressure 30–260 mmHg; pulse 40–199 bpm. Maker accuracy ±3 mmHg pressure and ±5% pulse
- Clinical validation
- Maker flyer carries ESH/BIHS claims. Medaval's exact X3 BT entry says validation checking remains unresolved. STRIDE lists X3 through equivalence to CF175; this does not establish a direct X3 BT study, so headline validation omitted
- Features
- Cuff-fit and movement indicators, hypertension risk indication and generic irregular-heartbeat detection. Guest measurements are not stored; no AFib-specific screening or ECG
Cuff
- Cuff fits
- 24–40 cm
- Cuff
- Latex-free Universal Cone Cuff, 24–40 cm, with cuff holder
Connections and memory
- Users
- 2
- Readings stored
- 60 per user
- Bluetooth and app
- Yes
- Memory
- Two separate 60-reading histories, 120 total, with date/time and latest-three average. Oldest replaced when full. Guest mode saves no readings
- App
- Bluetooth low energy sends new and stored readings to Rossmax Healthstyle after binding. Optional specially designed USB cable connects the data-link socket to Rossmax BP Manager PC software. Rossmax now states BP Manager PC software is discontinued and no longer available; the monitor remains usable independently
- Power
- Four AAA cells, DC 6 V; optional DC 6 V adaptor rated at least 600 mA. Automatic shutdown after one minute without key operation
Design
- Display details
- 57 × 73 mm LCD with date/time, user and Bluetooth indicators; IP21
- Size
- 96 × 139.7 × 63.2 mm (L × W × H); 246 g without batteries
- In the box
- Maker lists batteries, Universal Cone Cuff, instruction manual and string bag. Mains adaptor and PC cable optional
Pros and cons
Pros
- Bluetooth transfer to the Healthstyle app
- Two user histories plus guest mode
- Average of the latest three readings
Cons
- No specific AFib detection or ECG
- PC cable and mains adaptor optional
- 60 readings per user
Closest rivals
Model | Type | Users | App | Validated | Released |
|---|---|---|---|---|---|
| Upper arm | – | Yes | – | – | |
| Upper arm | 2 | Yes | – | – | |
| Upper arm | 1 | Yes | – | – |
Sources
- rossmax.com/en/products/monitoring/blood-pressure-monitors.html
- rossmax.com/downloads/IBs/OBM_IB_X3%282%29BT_V9_SW.pdf
- rossmax.com/downloads/Epaper/Epaper_X3_BT_EN.pdf
- medaval.ie/resources/EN/devices/Rossmax-X3-BT.html
- stridebp.org/device/rossmax-x3
- rossmax.com/en/rossmax-downloads.html
Photo: rossmax.com

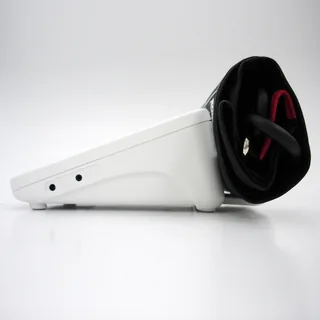

- Maker’s shared X3-family studio view showing cuff holder, supplied on the X3 BT page: rossmax.com/images/products/X3/X3_PP_003.jpg

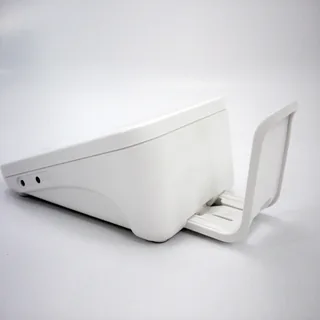

- Maker’s shared X3-family rear stand view, supplied on the X3 BT page: rossmax.com/images/products/X3/X3_PP_004.jpg

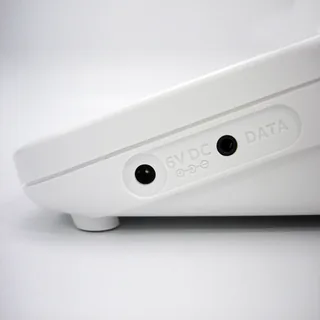

- Maker’s shared X3-family close-up of power and data sockets, supplied on the X3 BT page: rossmax.com/images/products/X3/X3_PP_005.jpg
- X3 BT official brochure opposite angled view with cuff in holder, earlier body print: rossmax.com/downloads/Flyer/OBM_OP_5thBPM_EN.pdf

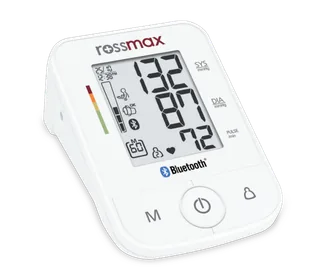

- Rossmax X3 BT monitor, device-only front view: Rossmax exact-model epaper complete embedded product photograph; supplied canvas and native alpha preserved.
