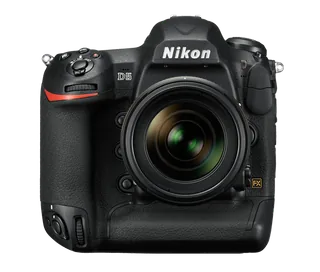

Nikon D4S vs Nikon D5

Every spec side by side, from each maker's published figures.

Only show differences

Better figure, where one is clearly better

Share comparison

D4S compared with D5

	NikonD4S	NikonD5
Overview
Released
Released	March 2014	March 2016
Image and sensor
Camera type
Camera type	DSLR	DSLR
Sensor format
Sensor format	Full frame	Full frame
Sensor type
Sensor type	CMOS	CMOS
Sensor dimensions
Sensor dimensions	36 × 23.9 mm	35.9 × 23.9 mm
Effective resolution
Effective resolution	16.2 MP	20.8 MP
Largest image
Largest image	4928 × 3280	5568 × 3712
RAW recording
RAW recording	Yes	Yes
Standard ISO range
Standard ISO range	100–25600	100–102400
Sensor detail
Sensor detail	Japan states 16.23 million effective and 16.61 million total pixels, rounded to 16.2 million effective globally; sensor-cleaning system. FX, 1.2×, DX and 5:4 areas; maximum cropped sizes 4096 × 2720, 3200 × 2128 and 4096 × 3280 respectively	Japan specifies 20.82 million effective and 21.33 million total pixels, rounded to 20.8 million effective in the US; sensor-cleaning system. FX, 1.2×, DX and 5:4 image areas
Image formats
Image formats	12-bit or 14-bit NEF RAW with lossless compression, compression or no compression; TIFF RGB, JPEG and RAW plus JPEG. RAW S uses one-quarter of full-size pixels, with 12-bit uncompressed files; some in-camera RAW editing functions unavailable for RAW S	Large NEF RAW at 12 or 14 bits with lossless compression, compression or no compression; medium and small RAW fixed to 12-bit lossless compression on Nikon's technical sheet. TIFF RGB, JPEG and RAW plus JPEG; Flat Picture Control. The original US announcement incorrectly describes medium/small RAW as uncompressed
ISO detail
ISO detail	Expanded equivalents ISO 50–409600; Auto ISO	Expanded equivalents ISO 50–3280000; Auto ISO
Image processor
Image processor	EXPEED 4; Advanced Scene Recognition System	EXPEED 5; Advanced Scene Recognition System
Lens and shooting
Lens mount
Lens mount	Nikon F mount	Nikon F mount
Stabilisation
Stabilisation	Optical lens stabilisation	Optical lens stabilisation
Maximum continuous burst
Maximum continuous burst	11 fps	12 fps
Lens detail
Lens detail	Compatible G/E/D AF NIKKOR lenses, subject to PC lens restrictions; body autofocus motor for compatible screw-drive lenses. Non-CPU AI lenses support aperture-priority/manual; non-AI, IX and F3AF lenses unsupported; DX lenses use the DX image area	Compatible G/E/D AF NIKKOR lenses, subject to PC lens restrictions; body autofocus motor for compatible screw-drive lenses. Non-CPU AI lenses support aperture-priority/manual; non-AI, IX and F3AF lenses unsupported; DX lenses use the DX image area
Autofocus
Autofocus	Advanced Multi-CAM 3500FX; 51 points including 15 cross-type; 11 points support f/8, with only the centre point cross-type at f/8. Detection to -2 EV; single-point, dynamic 9/21/51, 3D tracking, five-point Group-area and auto-area; AF fine-tuning; separate landscape/portrait sub-selectors	Multi-CAM 20K; 153 points including 99 cross-type, with 55 points and 35 cross-type points user-selectable. Fifteen points support f/8, nine selectable; centre sensitivity -4 EV and other points -3 EV at ISO 100, 20°C. Single-point, dynamic 25/72/153, 3D tracking, Group-area and auto-area; firmware C1.10 adds dynamic nine-point AF, C1.20 adds Group-area HL/VL
Shutter
Shutter	1/8000 to 30 seconds, Bulb and Time; flash sync 1/250 second	1/8000 to 30 seconds, Bulb and Time; flash sync 1/250 second; electronic front-curtain option in mirror-up mode; Nikon tested the shutter to 400000 actuations
Burst detail
Burst detail	Approximately 11 fps with full AF/AE tracking under Nikon's AF-C, S/M, 1/250-second-or-faster test conditions; low-speed continuous approximately 1–10 fps	Approximately 12 fps with AF/AE tracking; 14 fps locks focus and exposure with the mirror up. Nikon quotes up to 200 full-size 14-bit lossless RAW frames with its specified Lexar 2933× XQD 2.0 card
Stabilisation detail
Stabilisation detail	Optical VR depends on the lens; no sensor-shift stabilisation	Optical VR depends on the lens; no sensor-shift stabilisation. Firmware C1.10 adds electronic movie vibration reduction with a crop, excluding 4K and 1920 × 1080 crop modes
Flash
Flash	No built-in flash; hot shoe and threaded PC sync terminal; optical Nikon CLS with compatible external Speedlights	No built-in flash; hot shoe and threaded PC sync terminal; optical/radio Nikon CLS with compatible external Speedlights and required accessories
Exposure controls
Exposure controls	P/S/A/M; 91000-pixel RGB metering with 3D Colour Matrix Metering III, centre-weighted and spot modes; ±5 EV compensation; Active D-Lighting	P/S/A/M; 180000-pixel RGB metering with Colour Matrix Metering III, centre-weighted, spot and highlight-weighted modes; ±5 EV compensation; Active D-Lighting
Video
Highest video resolution
Highest video resolution	1920 × 1080 at 60 fps	3840 × 2160 at 30 fps
Video detail
Video detail	H.264 MOV at Full HD 60p/50p/30p/25p/24p, 720p 60p/50p or 640 × 424 at 30p/25p; actual NTSC rates 59.94/29.97/23.976. FX, DX and native 1920 × 1080 crop modes, the latter limited to 30p/25p/24p; maximum clip 29 minutes 59 seconds, with 20/10-minute limits depending on mode and quality. Contrast-detection AF-S/AF-F, Auto ISO in manual exposure, index marking, time-lapse exposure smoothing and simultaneous memory-card/HDMI recording	H.264 MOV at 4K 30p/25p/24p, Full HD 60p/50p/30p/25p/24p and 720p 60p/50p; actual NTSC rates 59.94/29.97/23.976. Native 1920 × 1080 crop also supports 60p/50p/30p/25p/24p. Firmware C1.10 extends recording to 29 minutes 59 seconds across up to eight 4 GB files; Photography Blog's three-minute 4K criticism concerns original firmware. Contrast-detection AF-S/AF-F; uncompressed HDMI output; in-camera time-lapse movies
Audio
Audio	Built-in mono microphone; 3.5 mm stereo microphone input and headphone output; adjustable sensitivity; linear PCM; photograph voice memos	Built-in stereo microphone; 3.5 mm stereo microphone input and headphone output; adjustable sensitivity; linear PCM; photograph voice memos
Screen and viewfinder
Viewfinder
Viewfinder	Optical	Optical
Screen size
Screen size	3.2″	3.2″
Screen dots
Screen dots	921,000	2,359,000
Touchscreen
Touchscreen	–	Yes
Display detail
Display detail	Fixed TFT with 170° viewing angle, approximately 100% coverage, automatic brightness and custom colour adjustment. Global announcement gives approximately 921000 dots, while Japan rounds approximately 920000; dots count subpixels	Fixed touch TFT with 170° viewing angle and approximately 100% coverage; playback gestures and touch text entry. US specifies 2359000 dots, Japan rounds to 2360000; dots count subpixels
Viewfinder detail
Viewfinder detail	Pentaprism; approximately 100% FX, 97% 1.2×/DX, and 100% vertical/97% horizontal for 5:4; 0.7× magnification with 50mm f/1.4 at infinity; 18 mm eyepoint; grid overlay; revised mirror mechanism reduces blackout	Pentaprism; approximately 100% FX, 97% 1.2×/DX, and 100% vertical/97% horizontal for 5:4; 0.72× magnification with 50mm f/1.4 at infinity; 17 mm eyepoint; grid overlay
Connections and design
Battery life (maker's claim)
Battery life (maker's claim)	3020 photographs	3780 photographs
Body weight
Body weight	1180 g (better)	1235 g
Release detail
Release detail	Nikon Japan records sale on 6 March 2014. Nikon's global announcement explicitly describes D4S as the next-generation flagship successor to D4	Nikon Japan records sale on 26 March 2016; the US announcement scheduled March availability. Nikon's Japanese announcement explicitly identifies D4S as the previous model
Recording media
Recording media	One XQD slot and one CompactFlash Type I UDMA slot; overflow, backup, separate RAW/JPEG and card copying. Type II CompactFlash and Microdrive unsupported	Two XQD slots or two CompactFlash Type I UDMA7 slots, selected by body version; overflow, backup, separate RAW/JPEG and card copying. Firmware C1.40 adds CFexpress Type B support to XQD bodies
Ports
Ports	Hi-Speed USB, mini-HDMI Type C, 3.5 mm microphone/headphone sockets, RJ-45 Ethernet with 10/100/1000BASE-T support, ten-pin accessory terminal, PC sync and WT-5 expansion connector	USB 3.0 Micro-B, mini-HDMI Type C, 3.5 mm microphone/headphone sockets, RJ-45 Ethernet with 10/100/1000BASE-T support, ten-pin accessory terminal, PC sync and WT-6/WT-5 expansion connector
Wireless connections
Wireless connections	No integrated Wi-Fi or GPS; optional WT-5/WT-4 provides wireless network transfer and browser-based remote operation. Optional GP-1/GP-1A or MC-35 connects GPS equipment; WR-R10 requires WR-A10 adapter	No integrated Wi-Fi or GPS; optional WT-6/WT-5 provides wireless network transfer. Optional GP-1A connects through the ten-pin terminal
Battery life detail
Battery life detail	EN-EL18a rechargeable battery; approximately 3020 CIPA photographs	Approximately 3780 CIPA photographs; original US specifications use EN-EL18a, while the later Japanese technical sheet specifies EN-EL18b at the same shot count
Charging
Charging	External MH-26a charger; optional EH-6b adapter with EP-6 power connector	External MH-26a charger; Japanese technical sheet lists optional EH-6c adapter with EP-6 power connector
Dimensions
Dimensions	Approximately 160 × 156.5 × 90.5 mm	Approximately 160 × 158.5 × 92 mm
Weight detail
Weight detail	Approximately 1180 g body only; 1350 g with battery and XQD card, excluding body cap and accessory-shoe cover	XQD version approximately 1235 g body only or 1405 g with battery and two XQD cards; CompactFlash version 1240 g body only or 1415 g with battery and two CF cards. Main weight represents the XQD body
Materials
Materials	–	Weather-sealed construction; illuminated controls
In the box
In the box	EN-EL18a battery, MH-26a charger, UC-E15 USB cable, AN-DC11 strap, BF-1B body cap, BS-2 shoe cover, DK-17 eyepiece, BL-6 battery cover, USB/HDMI clips, UF-2 stereo cable cover and ViewNX 2 CD-ROM	–
