AMD · Ryzen

Ryzen 7 7700

Released January 2023

A 8-core Zen 4 desktop processor for AM5 with DDR5 and integrated Radeon graphics.

Cores: 8/16
Boost: 5.3 GHz
L3: 32 MB
Power: 65 W
Socket: AM5

Unlocked

What reviewers say

Gaming and general performance close to 7700X with lower power use and a usable Wraith Prism cooler. PBO can recover more speed at higher power. Launch platform cost and Core i5-13600K competition made whole-build value less clear.

From techspot.com, kitguru.net and pcgamer.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores: 8
Threads: 16
Base clock: 3.8 GHz
Boost clock: 5.3 GHz
L3 cache: 32 MB
Cores: Zen 4; Raphael; 2 package dies; simultaneous multithreading
Clocks: Precision Boost 2; Precision Boost Overdrive and Curve Optimizer supported; first availability 10 January 2023 in AMD's launch release, although the current product page lists 14 January
Cache: L1 512 KB; L2 8 MB; L3 32 MB

Graphics and AI

Built-in graphics: Yes
Graphics: AMD Radeon Graphics; 2 graphics cores at 2200 MHz; USB-C DisplayPort Alternate Mode supported

Platform

Socket: AM5
Base power: 65 W
Unlocked: Yes
Cooler in the box: Yes
Memory support: DDR5 UDIMM; 2 memory channels; maximum 128 GB; ECC requires motherboard support. 2 single- or dual-rank DIMMs: DDR5-5200; 4 single- or dual-rank DIMMs: DDR5-3600; AMD EXPO memory overclocking supported
PCIe: PCIe 5.0; 28 native lanes, 24 usable; 4 native USB 3.2 Gen 2 ports, 1 USB 2.0 port; no native SATA ports
Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840 and B850
Process: TSMC 5nm FinFET CPU cores; TSMC 6nm FinFET I/O die; CPU compute die 71 mm², I/O die 122 mm²
Cooler: AMD Wraith Prism; Tjmax 95°C; bundled cooler confirmed in AMD launch release, omitted from the current technical page

Pros and cons

Pros

AMD Wraith Prism cooler included
65 W default TDP
Built-in Radeon graphics for display output

Cons

Requires an AM5 motherboard and DDR5 memory
Built-in graphics are intended for basic display duties

Closest rivals

Model	Cores	Boost	L3	Power	Socket	Released
IntelCore i5-13400F	10/16	4.6 GHz	20 MB	65 W	LGA1700	Jan 2023
AMDRyzen 7 5700	8/16	4.6 GHz	16 MB	65 W	AM4	Apr 2022
AMDRyzen 7 5700X	8/16	4.6 GHz	32 MB	65 W	AM4	Apr 2022

Sources

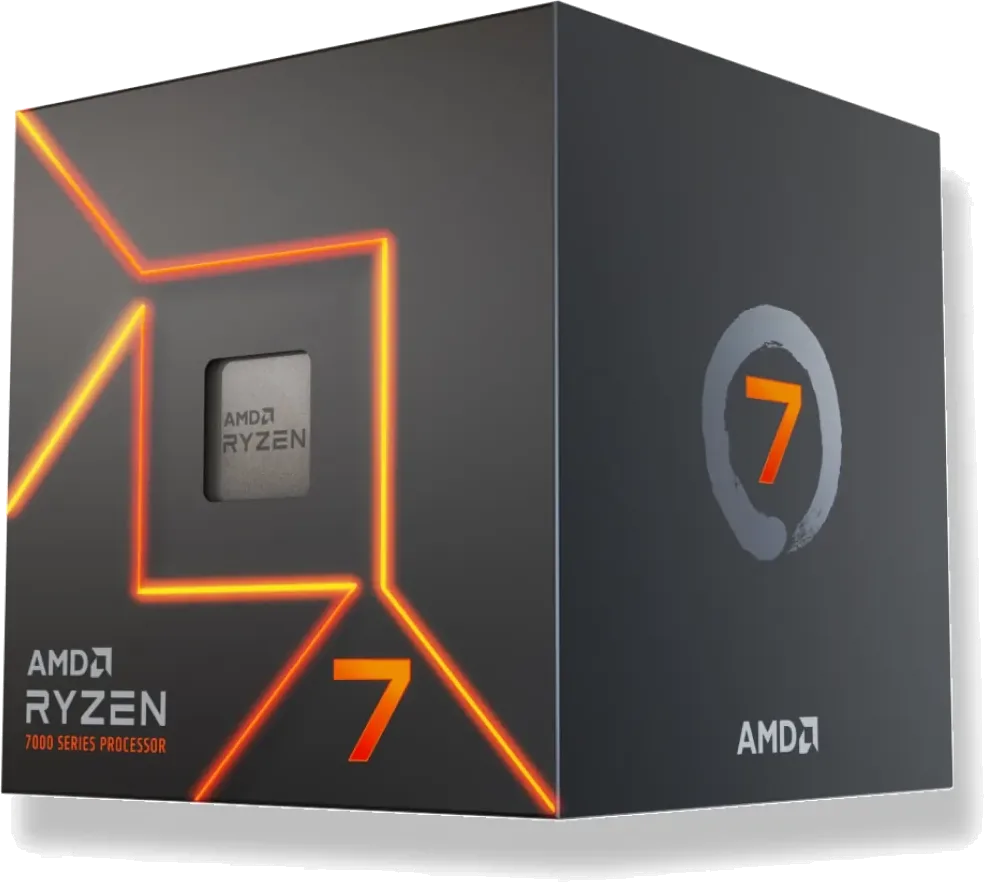

Photo: amd.com
