Intel · Core Ultra

Core Ultra 9 285K

Released October 2024

Intel's flagship Core Ultra 200S (Arrow Lake) desktop processor for LGA1851, with 24 cores and a built-in NPU.

Model history · 4 models, 2021–2024

Cores: 24/24
Boost: 5.7 GHz
L3: 36 MB
Power: 125 W
Socket: LGA1851

Unlocked

What reviewers say

Reviewers agree it is strong in multi-threaded and rendering work and draws much less power than Intel's previous chips, especially in games. The common criticism is gaming performance that falls behind the Core i9-14900K and AMD's chips, alongside the cost of moving to a new platform; PC Gamer found it still less efficient than AMD's Zen 5.

From tomshardware.com, pcgamer.com, club386.com and techradar.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores: 24 (8 performance, 16 efficiency)
Threads: 24
Base clock: 3.7 GHz
Boost clock: 5.7 GHz
L3 cache: 36 MB
Cores: 8 Performance-cores and 16 Efficient-cores, no Hyper-Threading; codename Arrow Lake
Clocks: P-core base 3.7 GHz, max turbo 5.5 GHz; E-core base 3.2 GHz, max turbo 4.6 GHz; Turbo Boost Max 3.0 5.6 GHz; Thermal Velocity Boost 5.7 GHz
Cache: 36 MB Intel Smart Cache (L3); 40 MB L2

Graphics and AI

Built-in graphics: Yes
Graphics: Intel Graphics, 4 Xe-cores, up to 2 GHz; outputs eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL; up to 4 displays; H.264, HEVC and AV1 encode and decode
AI engine: Intel AI Boost NPU, 13 TOPS (INT8); 36 TOPS for the whole processor

Platform

Socket: LGA1851
Base power: 125 W
Maximum power: 250 W
Unlocked: Yes
Memory support: Up to DDR5 6400 MT/s; 2 channels, up to 256 GB; ECC supported
PCIe: PCIe 5.0 and 4.0; 24 lanes (Up to 1x16+2x4, 2x8+2x4, 1x8+4x4); DMI 4 x8; Thunderbolt 4 built in
Process: TSMC N3B (CPU)
Cooler: max operating temperature 105 °C; thermal specification PCG 2020A

Pros and cons

Pros

24 cores (8 Performance, 16 Efficient)
Built-in NPU (13 TOPS) and Xe graphics with AV1 encode
Thunderbolt 4 and 24 PCIe lanes from the CPU

Cons

No Hyper-Threading: 24 threads against 32 on the i9-14900K
New LGA1851 socket needs an 800 series board
DDR5 only

Closest rivals

Model	Cores	Boost	L3	Power	Socket	Released
IntelCore i9-14900KS	24/32	6.2 GHz	36 MB	150 W	LGA1700	Mar 2024
IntelCore i9-14900K	24/32	6 GHz	36 MB	125 W	LGA1700	Oct 2023
IntelCore Ultra 7 265K	20/20	5.5 GHz	30 MB	125 W	LGA1851	Oct 2024

Previous model: Core i9-14900K.

Sources

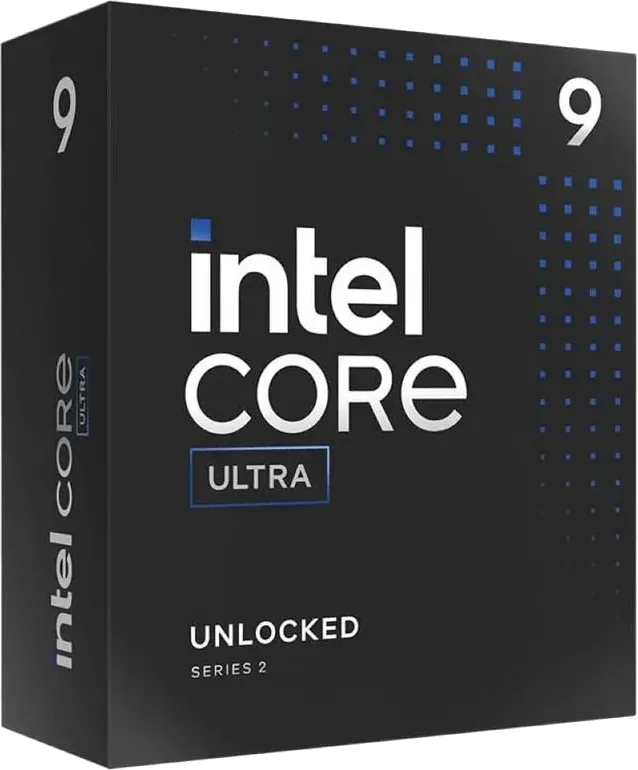

Photo: c1.neweggimages.com
