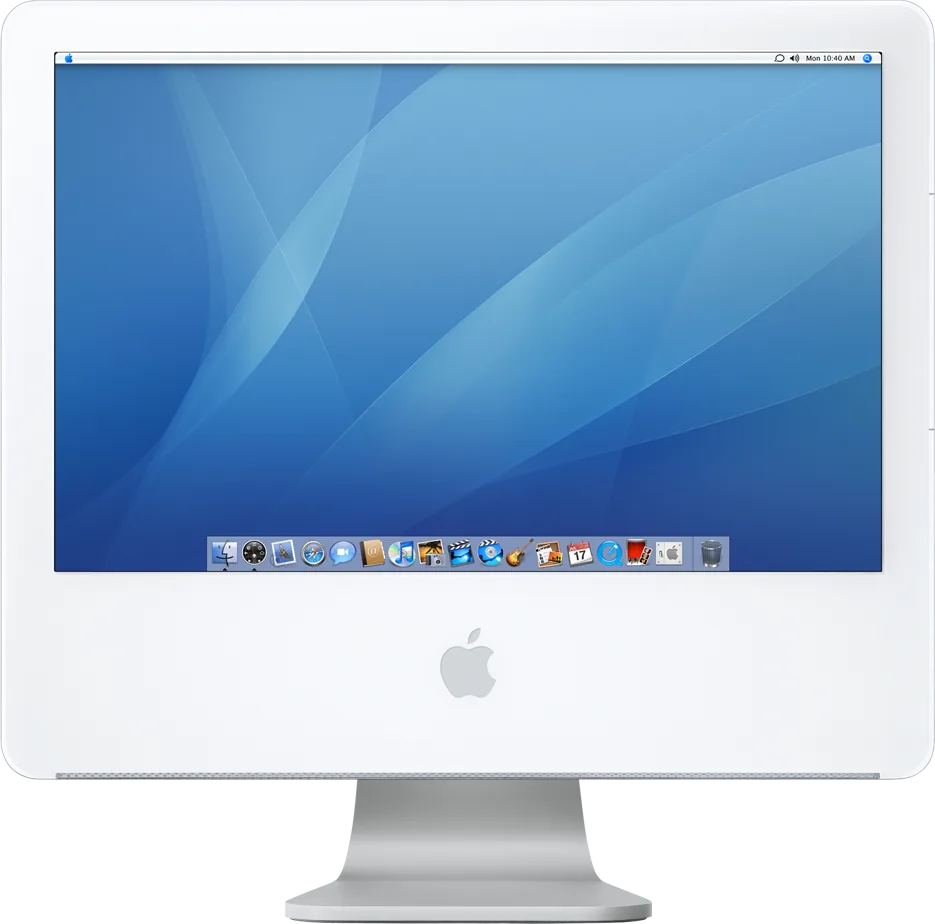

IBM PowerPC G5 1.6 GHz (iMac 2004) or IBM PowerPC G5 1.8 GHz (iMac 2004)
CPU cores
1
Graphics
NVIDIA GeForce FX 5200 Ultra (64 MB)
Memory
256 MB or 2 GB
Storage
80 GB to 160 GB
CPU
1.6 GHz PowerPC G5 with 533 MHz frontside bus and Combo drive, or 1.8 GHz with 600 MHz bus and SuperDrive; both have 512 KB on-chip L2 cache. Generic maker-clock chip records retain the single-core identity cross-checked with exact EveryMac sources; a silicon revision is not inferred.
GPU
NVIDIA GeForce FX 5200 Ultra with 64 MB dedicated DDR video memory and AGP 8x support.
Memory type
256 MB PC3200 (400 MHz) DDR SDRAM standard, expandable to 2 GB in two slots. Configurations conservatively list the published base and maker maximum.
Storage type
80 GB 7200 rpm Serial ATA hard drive; The maker launch lists a 160 GB build-to-order option. The 1.6 GHz model uses a slot-loading Combo DVD-ROM/CD-RW; the 1.8 GHz model uses SuperDrive DVD-R/CD-RW with 4x DVD-R writing. The launch press's generic 250 GB option is not paired with the 17-inch model without exact support.
Display
Screen size
17″
Resolution
1440 × 900
Brightness
200 nits
Display type
Widescreen TFT active-matrix LCD with millions of colours and typical 350:1 contrast. Panel technology and refresh rate are not published in the exact maker sheet.
Display features
Typical viewing angles: 120° horizontal and 90° vertical.
Connections
Ports
3 × USB-A, Ethernet, headphone jack
Ethernet
0.1 Gb/s
Back ports
Three USB 2.0 ports on the computer, up to 480 Mbps, plus two USB 1.1 ports on the keyboard; two FireWire 400 ports with 8 W shared power, Mini-VGA, 10/100BASE-T Ethernet, 56K V.92 modem, headphone/optical digital audio output and audio line-in. AirPort Extreme 802.11g card and internal Bluetooth module are optional, rather than standard.
External displays
Mini-VGA provides video mirroring on a VGA display or S-video/composite television through optional adapters. Output resolutions: 640 × 480 at 60 Hz, 800 × 600 at 75 Hz or 1024 × 768 at 75 Hz.
Speakers
Built-in stereo speakers, internal 12 W digital amplifier and built-in microphone.
Keyboard and mouse
Apple Keyboard, Apple Mouse and modem cable.
Design and power
Type
All-in-one
Weight
8.4 kg
Width × depth × height
426 × 173 × 430 mm
Operating system
macOS
Size and weight detail
Published metric size and reference weight; weight varies by configuration and manufacturing process.
Power supply
100–120 V AC or 100–240 V AC depending on country of purchase, 47–63 Hz, single phase; maximum continuous power 180 W.
In the box
Launch Mac OS X 10.3 Panther, iLife ’04 and bundled productivity software, with Classic environment support. The retained specification lists the later iLife ’05 bundle. Apple announced the model on 31 August 2004 and stated worldwide shipping would begin in mid-September; the release field therefore retains September month precision.
