Apple · Macintosh

Macintosh Performa 5300CD

Released 1995

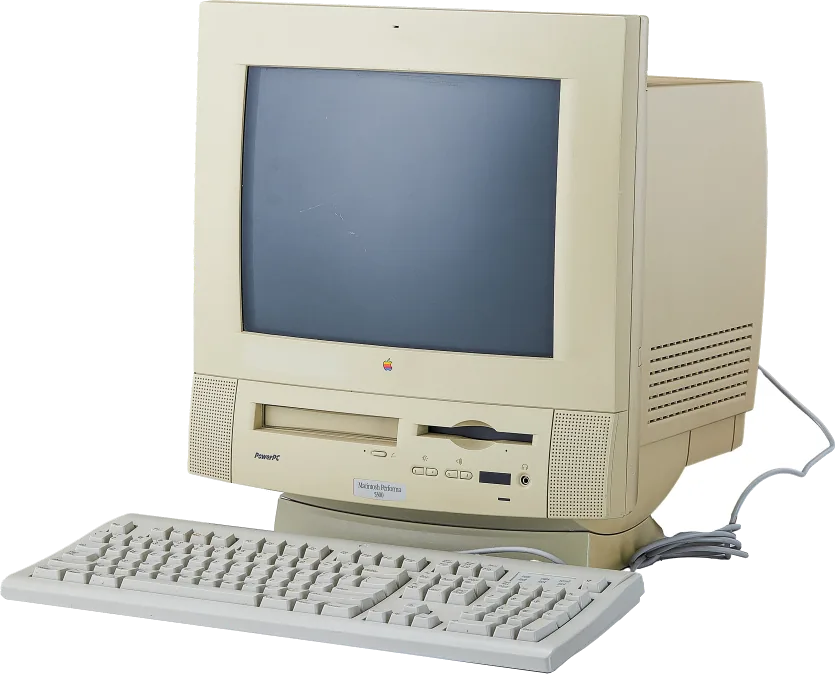

A 100 MHz PowerPC all-in-one with a 15-inch CRT, stereo speakers and CD-ROM drive.

Specifications

Processor: PowerPC 603e 100 MHz (Macintosh Performa 5300CD)
CPU cores: 1
Memory: 16 MB
Storage: 1.2 GB
CPU: 100 MHz PowerPC 603e with integrated floating-point unit, 32 KB L1 cache, 256 KB L2 cache and 64-bit data path at 40 MHz
GPU: Integrated 1 MB DRAM video; 640 × 480 at 16-bit colour or 832 × 624 at 8-bit colour
Memory type: Two 72-pin SIMM slots; 16 MB in Apple's listed configuration and 64 MB maximum with 80 ns memory
Storage type: 1.2 GB internal IDE hard drive, 1.44 MB floppy drive and 4× CD-ROM drive
Expansion slots: Macintosh LC processor-direct slot, communications slot, TV-tuner bay and video input/output slot

Screen size: 15″
Resolution: 832 × 624
Panel: CRT
Display type: Built-in 15-inch colour CRT; Apple's Performa 5300CD manual gives a 0.28 mm dot pitch. A CRT has selectable pixel modes, not a fixed native LCD resolution.
Display features: Maximum listed pixel mode 832 × 624 at 8-bit colour; 640 × 480 supports 16-bit colour

Ports: Headphone jack
Back ports: Apple Desktop Bus, external DB-25 SCSI, two serial connectors, microphone input and stereo sound output; optional DB-15 video-mirroring port
Speakers: Built-in stereo speakers and microphone

Type: All-in-one
Operating system: macOS
Size and weight detail: Apple lists 17.5 × 15.1 × 16 inches and 47 lb for the 5200 form factor
Power supply: Maximum 125 W; 110–240 V AC at 50–60 Hz; 4.5 V alkaline clock battery
In the box: Original System Software 7.5.1. Apple lists 17 October 1995 as introduction; a separate first-sale date was not established.

Processor	Memory	Storage	Storage type
PowerPC 603e 100 MHz (Macintosh Performa 5300CD)	16 MB	1.2 GB	Hard drive

Model	Type	Processor	Memory	Storage	Screen	Weight	Released
AppleMacintosh Performa 5400/160	All-in-one	PowerPC 603e (160 MHz, Macintosh Performa 5400/160)	16 MB	1.6 GB	12.8″	21 kg	1996
ApplePower Macintosh 5260/100	All-in-one	PowerPC 603e 100 MHz (Power Macintosh 5260/100)	16 MB	800 MB	12.3″	20.5 kg	1996
ApplePower Macintosh 5260/120	All-in-one	PowerPC 603e 120 MHz (Power Macintosh 5260/120)	16 MB	1.2 GB	12.3″	20.5 kg	1996
