Apple · Power Mac

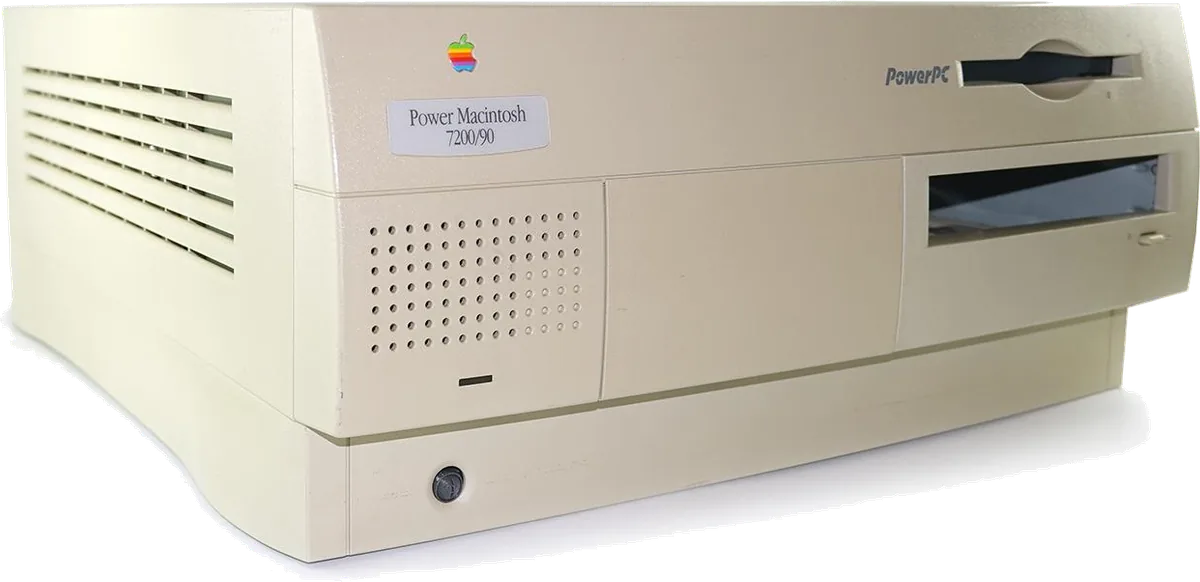

Power Macintosh 7200/90

Released 1995

A 90 MHz PowerPC desktop with three PCI slots, built-in Ethernet and a 500 MB SCSI hard drive.

Specifications

Processor: PowerPC 601 90 MHz (Power Macintosh 7200/90)
CPU cores: 1
Memory: 8 MB or 16 MB
Storage: 500 MB
CPU: 90 MHz PowerPC 601 with 32 KB L1 cache, optional L2 cache and 64-bit data path at 45 MHz
GPU: Built-in video has 1 MB VRAM, expandable to 2 or 4 MB; 4 MB supports 24-bit colour at 1024 × 768
Memory type: Four 168-pin DIMM slots; Apple supports 8–256 MB total with 70 ns memory
Storage type: Internal 1.44 MB floppy drive, 500 MB SCSI hard drive and 4× CD-ROM drive
Expansion slots: Three PCI slots; optional PC Compatibility Card

Ports: Ethernet
Back ports: Apple Desktop Bus, DB-15 video, DB-25 SCSI, two GeoPort serial connections, AAUI and 10BASE-T Ethernet, microphone input and stereo audio output
External displays: Built-in video supports up to 1280 × 1024 pixels with expanded VRAM; colour depth depends on VRAM

Type: Compact
Weight: 9.98 kg
Width × depth × height: 365 × 430 × 156 mm
Operating system: macOS
Size and weight detail: Apple's 6.15 × 14.37 × 16.93 inch and 22 lb reference dimensions; metric fields are rounded conversions
Power supply: Maximum 150 W; 100–240 V AC, 50–60 Hz
In the box: Apple Directions lists an 8 MB US launch configuration, while Apple's Japanese specification lists a 16 MB configuration, both with 500 MB storage. Original System Software 7.5.2. Apple lists 8 August 1995 as introduction; a distinct maker first-sale date was not established.

Processor	Memory	Storage	Storage type
PowerPC 601 90 MHz (Power Macintosh 7200/90)	8 MB	500 MB	Hard drive
PowerPC 601 90 MHz (Power Macintosh 7200/90)	16 MB	500 MB	Hard drive
