Apple · Power Mac

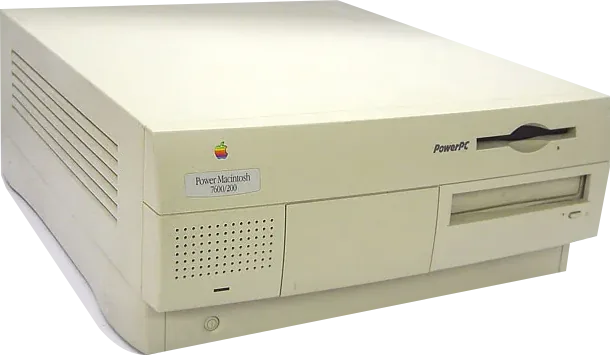

Power Macintosh 7600/200

Released 1997

A 200 MHz PowerPC desktop with video capture inputs, three PCI slots and built-in Ethernet.

Specifications

Processor: PowerPC 604e 200 MHz (Power Macintosh 7600/200)
CPU cores: 1
Memory: 32 MB
Storage: 2 GB
CPU: 200 MHz PowerPC 604e on a removable processor card, with 64 KB L1 and 256 KB L2 cache
GPU: Built-in graphics with 2 MB VRAM, expandable to 4 MB; supports up to 1280 × 1024 pixels with colour depth depending on VRAM
Memory type: 32 MB standard RAM in Apple's Japanese bundle, expandable to 512 MB in eight 168-pin DIMM slots
Storage type: 2 GB internal SCSI hard drive, 1.44 MB floppy drive and 12× CD-ROM drive in Apple's Japanese product bundle
Expansion slots: Three PCI slots and an extra internal storage bay

Ports: Ethernet
Back ports: DB-15 monitor, Apple Desktop Bus, external DB-25 SCSI, two serial ports, AAUI and 10BASE-T Ethernet, stereo audio input and output, RCA audio input and output, S-video and composite video input
External displays: Built-in video supports one external monitor up to 1280 × 1024 pixels; colour depth depends on fitted VRAM

Type: Compact
Weight: 9.98 kg
Width × depth × height: 365 × 430 × 156 mm
Operating system: macOS
In the box: Apple's Japanese bundle includes an Apple Desktop Bus Mouse II, PlainTalk microphone, power cable, KanjiTalk 7.5.5 CD-ROM, Internet starter kit and documentation. Apple lists 17 February 1997 as introduction; a distinct first-sale date was not established. Its Japanese datasheet and international support sheet differ on power ratings, so power is omitted.

Processor	Memory	Storage	Storage type
PowerPC 604e 200 MHz (Power Macintosh 7600/200)	32 MB	2 GB	Hard drive

Model	Type	Processor	Memory	Storage	Screen	Weight	Released
ApplePower Macintosh 4400/200	Compact	PowerPC 603e 200 MHz (Power Macintosh 4400/200)	16 MB – 32 MB	2 GB	–	9.5 kg	1997
ApplePower Macintosh 7300/200	Compact	PowerPC 604e 200 MHz (Power Macintosh 9600/200)	32 MB	2 GB	–	9.97 kg	1997
ApplePower Macintosh G3 Desktop	Compact	PowerPC G3 233 MHz (Power Macintosh G3 Desktop), PowerPC G3 266 MHz (Power Macintosh G3 Desktop) or PowerPC G3 300 MHz (Power Macintosh G3 Desktop)	32 MB – 64 MB	4 GB – 6 GB	–	9.979 kg	Nov 1997
