Apple · Power Mac

Power Macintosh 8100/110

Released 1994

A 110 MHz PowerPC tower with three NuBus slots and built-in Ethernet.

Specifications

Processor: PowerPC 601+ 110 MHz (Power Macintosh 8100/110)
CPU cores: 1
Memory: 16 MB
Storage: 2 GB
CPU: 110 MHz PowerPC 601+ with 32 KB L1 cache, 256 KB L2 cache and 36.7 MHz system bus
GPU: Built-in DRAM video through HDI-45 and a 2 MB VRAM card through DB-15, expandable to 4 MB VRAM; maximum colour depth depends on output and fitted memory
Memory type: 8 MB on the logic board with eight 72-pin SIMM slots; Apple's support sheet lists 16 MB minimum and 264 MB maximum
Storage type: Apple's support specification lists a 2 GB internal SCSI hard drive, 1.44 MB floppy drive and internal 2× CD-ROM drive
Expansion slots: Three NuBus slots; the processor-direct slot is occupied by the video card

Ports: Ethernet
Back ports: Apple Desktop Bus, external DB-25 SCSI, two serial ports, AAUI Ethernet, HDI-45 and DB-15 monitor ports, stereo audio input and output

Type: Tower
Operating system: macOS
Size and weight detail: Apple lists 14 × 7.7 × 15.75 inches (height × width × depth) and 25.3 lb

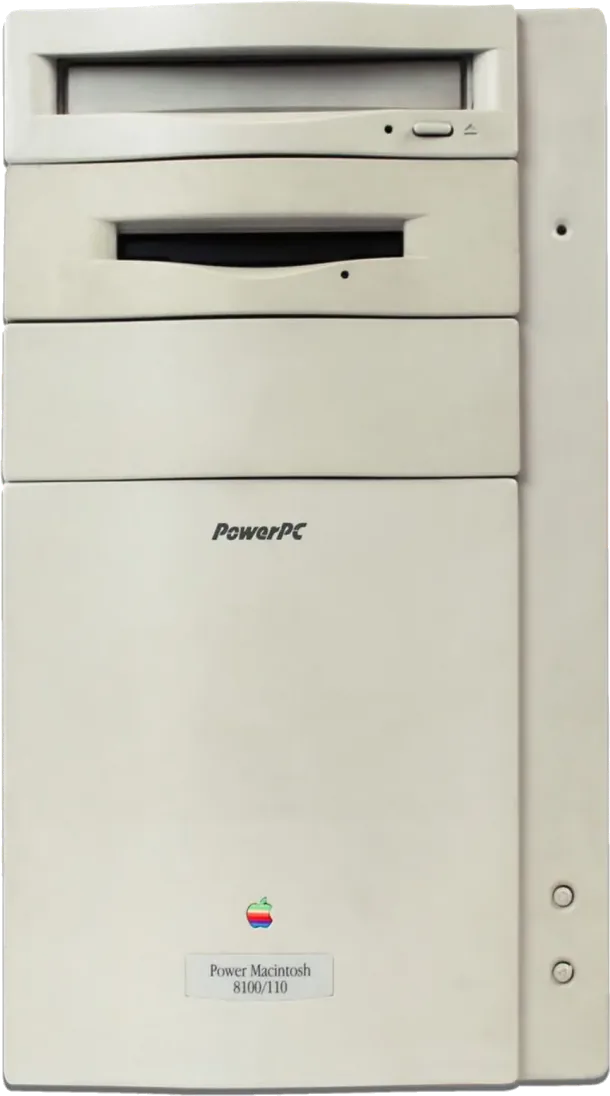

In the box: Apple lists 3 November 1994 as introduction, but a distinct first-sale date was not established. The photographed museum specimen has a 500 MB drive; the 2 GB configuration shown here follows Apple's support specification.

Processor	Memory	Storage	Storage type
PowerPC 601+ 110 MHz (Power Macintosh 8100/110)	16 MB	2 GB	Hard drive

Model	Type	Processor	Memory	Storage	Screen	Weight	Released
ApplePower Macintosh 8100/80	Tower	PowerPC 601 80 MHz (Power Macintosh 8100/80)	8 MB – 16 MB	250 MB – 1 GB	–	11.5 kg	1994
ApplePower Macintosh 8100/100	Tower	PowerPC 601 100 MHz (Power Macintosh 8100/100)	16 MB	700 MB	–	11.3 kg	1995
ApplePower Macintosh 8100/100AV	Tower	PowerPC 601 100 MHz (Power Macintosh 8100/100AV)	16 MB	1 GB	–	11.3 kg	1995
