NVIDIA · GeForce

GeForce RTX 3080 Ti

Released June 2021

A 2021 Ampere graphics card with 12 GB of GDDR6X memory and a 350 W power rating, positioned above the RTX 3080.

Model history · 3 models, 2017–2021
  1. 2017GeForce GTX 1080 TiCompare
  2. 2018GeForce RTX 2080 TiCompare
  3. 2021GeForce RTX 3080 Ti
Memory
12 GB
Shaders
10,240
Boost clock
1,670 MHz
Bandwidth
912 GB/s
Power
350 W

What reviewers say

Reviewers find strong 4K performance close to the RTX 3090, but high power use and a large premium over the RTX 3080. PC Gamer and TechRadar question the value, while PCWorld considers it worthwhile for high-end gaming. PCWorld also finds the two-slot Founders Edition cooler warmer and noisier than the RTX 3090's.

From pcgamer.com, techradar.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ampere
Shader cores
10,240
Boost clock
1,670 MHz
Architecture

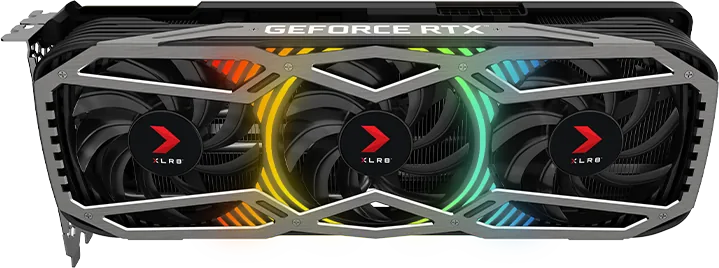

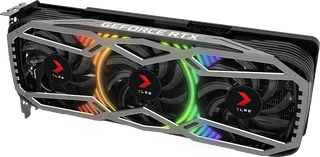

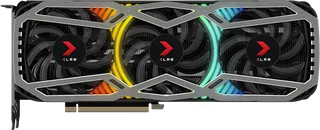

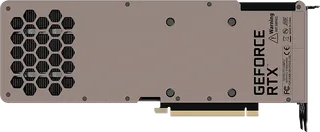

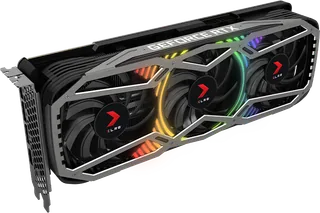

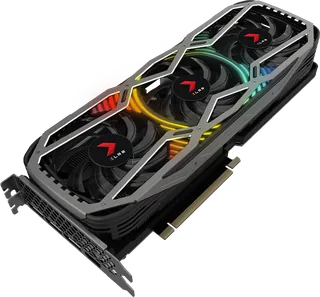

NVIDIA reference specifications. The photo shows PNY's stock-clock XLR8 Gaming REVEL EPIC-X RGB Triple Fan; its cooler differs from the Founders Edition geometry below.
Ray tracing
Second-generation RT Cores
AI cores
Third-generation Tensor Cores
Upscaling and frame generation
NVIDIA DLSS upscaling; no DLSS Frame Generation
Base clock
NVIDIA lists 1.37 GHz base and 1.67 GHz boost rounded to two decimal places; stock-clock PNY REVEL specifies 1365 MHz base and 1665 MHz boost

Memory

Video memory
12 GB GDDR6X
Memory bus
384-bit
Memory bandwidth
912 GB/s
Memory detail
19 Gbps GDDR6X; 912 GB/s bandwidth verified by PNY's stock-clock REVEL specification

Connections and power

Board power
350 W
Interface
PCIe 4.0
Display outputs

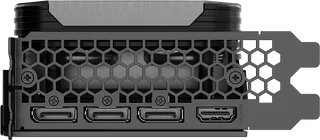

3 × DisplayPort 1.4a, 1 × HDMI 2.1; up to 4 displays; HDCP 2.3
Maximum resolution
7680 × 4320; HDMI supports 4K 120 Hz HDR or 8K 60 Hz HDR; DisplayPort supports 4K 240 Hz with DSC
Power connector
2 × PCIe 8-pin cables through the included adapter to 1 × 12-pin (Founders Edition)
Recommended power supply
750 W, based on NVIDIA's Intel Core i9-10900K test system
Slot width
2-slot (Founders Edition)
Size (reference card)
285 × 112 mm, 2-slot (Founders Edition)
Video encode and decode
Seventh-generation NVENC and fifth-generation NVDEC; no hardware AV1 encoding

Pros and cons

Pros

  • Hardware ray tracing and DLSS upscaling
  • 912 GB/s memory bandwidth
  • 12 GB of GDDR6X memory

Cons

  • 350 W graphics card power
  • No hardware AV1 encoding or DLSS Frame Generation
  • No NVLink support

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 3080
10 GB or 12 GB8,704 or 8,9601,710 MHz760 GB/s or 912 GB/s320 W or 350 WSept 2020
NVIDIAGeForce RTX 4080
16 GB9,7282,510 MHz716.8 GB/s320 WNov 2022
NVIDIAGeForce RTX 3090
24 GB10,4961,700 MHz936 GB/s350 WSept 2020

Previous model: GeForce RTX 2080 Ti.
