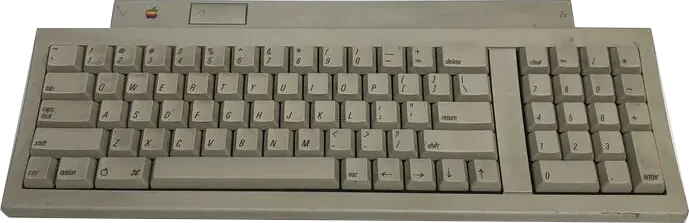

Apple Keyboard II

Released 1990

An 81-key Apple Desktop Bus keyboard supplied with the Macintosh Classic and LC.

Model history · 2 models, 1987–1990

Product links

Layout: Full size
Switches: Membrane
Backlight: None
Keys labelled for: Mac
Touch ID: No
Switches: Deskthority documents Mitsumi rubber-over-membrane and SMK spring-over-membrane variants of model M0487.
Layouts: Apple's M0487 specification lists 81 keys, including an 18-key numeric keypad and four cursor keys.
Special keys: Apple explains that Caps Lock and Control moved relative to the preceding M0116, while the space bar became longer.

Connects by: Cable
Power: Cable
Receiver: Detachable 1 m Apple Desktop Bus cable; Deskthority identifies two bidirectional ADB ports.
Works with: Any Apple computer with an ADB interface, according to Apple's specification; Apple says it shipped with the Macintosh Classic and LC.

Weight: 890 g
Width × depth × height: 405 × 151 × 32.5 mm
Materials: Beige plastic housing with two rear tilt legs.
Colours: Beige.
In the box: Apple's M0487LL/A packing list includes the keyboard, 1 m ADB cable, instruction sheet and warranty card.

Model	Layout	Switches	Backlight	Battery	Connects by	Weight	Released
AppleApple Extended Keyboard II	Full size	Mechanical	None	–	Cable	–	1990
AppleAppleDesign Keyboard	Full size	Membrane	None	–	Cable	1200 g	Apr 1994
AppleApple Keyboard (M0116)	Full size	Mechanical	None	–	Cable	1000 g	1987
