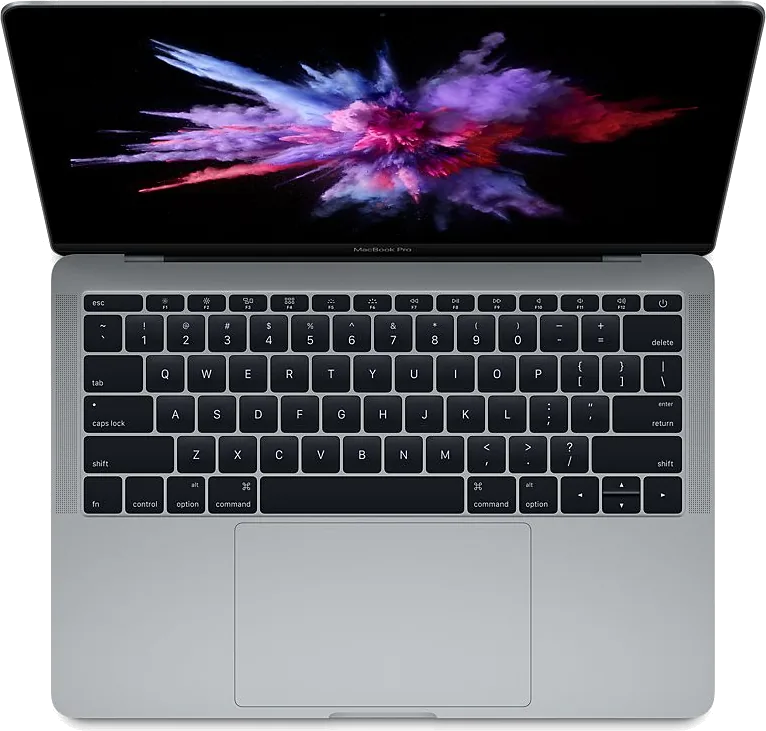

Apple MacBook Pro (13-inch, 2016, Two Thunderbolt 3 ports)

Apple · MacBook Pro

MacBook Pro (13-inch, 2016, Two Thunderbolt 3 ports)

Released October 2016

A 13-inch Retina MacBook Pro with a physical function key row, dual-core Intel processors and two Thunderbolt 3 ports.

Model history · 6 models, 2012–2016
  1. 2012MacBook Pro (Retina, 13-inch, Late 2012)Compare
  2. 2013MacBook Pro (Retina, 13-inch, Early 2013)Compare
  3. 2013MacBook Pro (Retina, 13-inch, Late 2013)Compare
  4. 2014MacBook Pro (Retina, 13-inch, Mid 2014)Compare
  5. 2015MacBook Pro (Retina, 13-inch, Early 2015)Compare
  6. 2016MacBook Pro (13-inch, 2016, Two Thunderbolt 3 ports)
Size
13.3″
Display
IPS LCD
Processor
Intel Core i5 or i7
Memory
8 GB – 16 GB
Weight
1.37 kg
Battery
10 h

What reviewers say

Reviewers praise the display, fast storage, build quality and battery life, while questioning the price and limited connections. Macworld finds the shallow keyboard uncomfortable; AppleInsider adapts more readily. Ars finds stronger graphics but modest CPU gains, and notes occasional palm rejection problems with the larger trackpad.

From macworld.com, appleinsider.com and arstechnica.com

Display

Screen size
13.3″
Resolution
2560 × 1600
Panel
IPS LCD
Brightness
500 nits
Touchscreen
No
Display type
Retina display; LED-backlit IPS; millions of colours
Pixel density
227 ppi
Colour range
Wide colour (P3)
Display features
Scaled resolutions of 1680 × 1050, 1440 × 900 or 1024 × 640

Performance

Processor
Intel Core i5-6360U or Intel Core i7-6660U
CPU cores
2
CPU threads
4
Graphics
Intel Iris Graphics 540
Memory
8 GB or 16 GB
Storage
256 GB to 1 TB
CPU
Dual-core Intel Core i5 at 2.0 GHz with Turbo Boost up to 3.1 GHz, configurable to dual-core Core i7 at 2.4 GHz with up to 3.4 GHz; both have 4 MB shared L3 cache. AppleInsider confirms the i5-6360U; ComputerBase's configuration table confirms the i7-6660U.
GPU
Intel Iris Graphics 540 integrated graphics
Memory type
8 GB of 1866 MHz LPDDR3 onboard memory, configurable to 16 GB
Storage type
256 GB PCIe-based SSD, configurable to 512 GB or 1 TB

Battery and size

Battery life (maker's claim)
Up to 10 hours
Battery capacity
54.5 Wh
Weight
1.37 kg
Thickness
14.9 mm
Width × depth
304.1 × 212.4 mm
Battery life detail
Lithium-polymer battery; up to 10 hours wireless web or iTunes movie playback and 30 days standby. Apple's October 2016 tests used the 2.0 GHz Core i5, 8 GB memory and 256 GB SSD. Weight varies by configuration and manufacturing process.
Charger
61 W USB-C Power Adapter
Materials
Aluminium enclosure
Colours
Silver; Space Grey

Connections

Ports
2 × Thunderbolt 3, headphone jack
Wi-Fi
Wi-Fi 5
Bluetooth
4.2
Webcam
720p FaceTime HD
Operating system
macOS
Port detail
Two Thunderbolt 3 USB-C ports support charging, DisplayPort, Thunderbolt up to 40 Gb/s and USB 3.1 Gen 2 up to 10 Gb/s; 3.5 mm headphone jack. VGA, HDMI and Thunderbolt 2 require separate adaptors.
External displays
Built-in screen plus one 5120 × 2880 display at 60 Hz with over a billion colours, or two 4096 × 2304 displays at 60 Hz with over a billion colours
Keyboard
Full-size backlit keyboard with 78 US or 79 ISO keys, including 12 function keys and four arrow keys; ambient light sensor
Trackpad
Force Touch trackpad with pressure sensing, Force clicks and Multi-Touch gestures
Speakers
Stereo speakers with high dynamic range
Microphones
Two microphones
In the box
13-inch MacBook Pro; 61 W USB-C Power Adapter; 2 m USB-C Charge Cable

Configurations

ProcessorMemoryStorage
Intel Core i5-6360U8 GB256 GB
Intel Core i5-6360U8 GB512 GB
Intel Core i5-6360U8 GB1 TB
Intel Core i5-6360U16 GB256 GB
Intel Core i5-6360U16 GB512 GB
Intel Core i5-6360U16 GB1 TB
Intel Core i7-6660U8 GB256 GB
Intel Core i7-6660U8 GB512 GB
Intel Core i7-6660U8 GB1 TB
Intel Core i7-6660U16 GB256 GB
Intel Core i7-6660U16 GB512 GB
Intel Core i7-6660U16 GB1 TB

Pros and cons

Pros

  • P3 Retina display with 500-nit brightness
  • Physical function keys
  • Up to 16 GB memory and 1 TB storage

Cons

  • No built-in USB-A, HDMI or card reader
  • Onboard memory
  • 720p webcam

Closest rivals

Model
SizeDisplayProcessorMemoryWeightBatteryReleased
13.3″IPS LCDIntel Core i5 or i78 GB – 16 GB1.37 kg10 hNov 2016
13.3″IPS LCDIntel Core i5 or i78 GB – 16 GB1.37 kg10 hJun 2017
13.3″IPS LCDIntel Core i5 or i78 GB – 16 GB1.37 kg10 hJun 2017

Previous model: MacBook Pro (Retina, 13-inch, Early 2015). Newer model: MacBook Pro (13-inch, 2017, Two Thunderbolt 3 ports).
