The 14-inch MacBook Pro with M5 Pro or M5 Max puts Apple's pro chips, Thunderbolt 5 and up to 128GB of memory in the 14-inch body, suited to developers, photographers and video editors who need more performance or memory than the base M5 model offers.
Reviewers praise the speed, the excellent mini-LED screen, speakers, ports and long battery life, and Frandroid found the M5 Pro model faultless. The common criticism is the high price of well-specified models; Notebookcheck found the 14-inch chassis can't cool the M5 Max, which throttled, ran its fans loud and outpaced the charger, and recommends the M5 Pro for this size.
1,000,000:1 contrast; 1,000 nits sustained full-screen XDR brightness; ProMotion up to 120 Hz, with fixed 47.95, 48, 50, 59.94 and 60 Hz rates; True Tone
Performance
Processor
Apple M5 Pro or Apple M5 Max
CPU cores
15 or 18
Graphics
16-core GPU, 20-core GPU, 32-core GPU or 40-core GPU
Memory
24 GB, 36 GB, 48 GB, 64 GB or 128 GB
Storage
1 TB to 8 TB
CPU
15-core CPU with 5 super cores and 10 performance cores (entry M5 Pro), or 18-core CPU with 6 super cores and 12 performance cores
GPU
16-core or 20-core (M5 Pro), 32-core or 40-core (M5 Max) GPU with Neural Accelerators and hardware-accelerated ray tracing; Media Engine with H.264, HEVC, ProRes and ProRes RAW acceleration and AV1 decode, with two video encode and two ProRes engines on M5 Max
AI engine
16-core Neural Engine
Memory type
Unified memory
Memory bandwidth
307 GB/s (M5 Pro), 460 GB/s (M5 Max with 32-core GPU) or 614 GB/s (M5 Max with 40-core GPU)
Storage type
SSD, configurable up to 4 TB (M5 Pro) or 8 TB (M5 Max); Apple quotes up to 14.5 GB/s read and write (tested with a 16-inch M5 Max with 8 TB)
Battery and size
Battery life (maker's claim)
Up to 22 hours
Battery capacity
72.4 Wh
Weight
1.6 kg
Thickness
15.5 mm
Width × depth
312.6 × 221.2 mm
Battery life detail
M5 Pro up to 22 hours video streaming and 14 hours wireless web; M5 Max up to 20 hours video streaming and 13 hours wireless web; lithium-polymer battery
Charger
Sold separately in the UK (70 W or 96 W Apple USB-C adapters offered); needs at least 70 W over USB PD
3 × Thunderbolt 5 (USB-C) with charging, DisplayPort, Thunderbolt 5 and USB 4 (up to 120 Gb/s); HDMI (up to 8K) with multichannel audio output; SDXC card slot; MagSafe 3; 3.5 mm headphone jack with high-impedance headphone support
External displays
M5 Pro up to three at 6K 60 Hz or 4K 144 Hz, or one at 8K 60 Hz, 5K 120 Hz or 4K 240 Hz plus one at 5K 120 Hz or 4K 200 Hz; M5 Max up to four at 6K 60 Hz or 4K 144 Hz, or two at 8K 60 Hz, 5K 120 Hz or 4K 240 Hz; all alongside the built-in display
Keyboard
Backlit Magic Keyboard, 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
Trackpad
Force Touch trackpad
Speakers
High-fidelity six-speaker sound system with force-cancelling woofers; wide stereo; Spatial Audio with Dolby Atmos
Microphones
Studio-quality three-mic array with directional beamforming; Voice Isolation and Wide Spectrum modes
Biometrics
Touch ID
In the box
14-inch MacBook Pro, USB-C to MagSafe 3 Cable (2 m), polishing cloth (nano-texture display only); power adapter sold separately
Configurations
Processor
Memory
Storage
Apple M5 Pro, 15-core CPU, 16-core GPU
24 GB
1 TB
Apple M5 Pro, 15-core CPU, 16-core GPU
24 GB
2 TB
Apple M5 Pro, 15-core CPU, 16-core GPU
24 GB
4 TB
Apple M5 Pro, 15-core CPU, 16-core GPU
48 GB
1 TB
Apple M5 Pro, 15-core CPU, 16-core GPU
48 GB
2 TB
Apple M5 Pro, 15-core CPU, 16-core GPU
48 GB
4 TB
Apple M5 Pro
24 GB
1 TB
Apple M5 Pro
24 GB
2 TB
Apple M5 Pro
24 GB
4 TB
Apple M5 Pro
48 GB
1 TB
Apple M5 Pro
48 GB
2 TB
Apple M5 Pro
48 GB
4 TB
Apple M5 Pro
64 GB
1 TB
Apple M5 Pro
64 GB
2 TB
Apple M5 Pro
64 GB
4 TB
Apple M5 Max, 32-core GPU
36 GB
2 TB
Apple M5 Max, 32-core GPU
36 GB
4 TB
Apple M5 Max, 32-core GPU
36 GB
8 TB
Apple M5 Max
48 GB
2 TB
Apple M5 Max
48 GB
4 TB
Apple M5 Max
48 GB
8 TB
Apple M5 Max
64 GB
2 TB
Apple M5 Max
64 GB
4 TB
Apple M5 Max
64 GB
8 TB
Apple M5 Max
128 GB
2 TB
Apple M5 Max
128 GB
4 TB
Apple M5 Max
128 GB
8 TB
Pros and cons
Pros
+Up to 128GB of unified memory and 614GB/s of bandwidth with the 40-core-GPU M5 Max
+Three Thunderbolt 5 ports plus HDMI, SDXC and MagSafe 3, with Wi-Fi 7 and Bluetooth 6
+120Hz mini-LED XDR display with 1,600-nit peak HDR brightness, in a 1.60 kg body
Cons
−The entry model has a cut-down M5 Pro (15-core CPU, 16-core GPU) that tops out at 48GB of memory
−Apple rates it at up to 22 hours of video streaming (20 with M5 Max), less than the 14-inch M5 model's 24

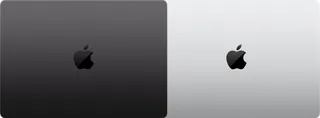

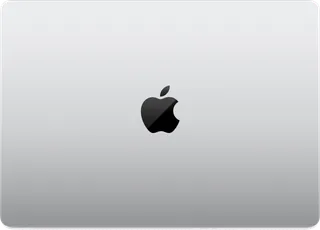

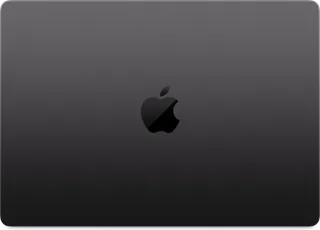

14-inch MacBook Pro, top exterior, rounded corners, centred glossy black Apple logo, available colours: space black, silver: Apple (official store gallery photograph)

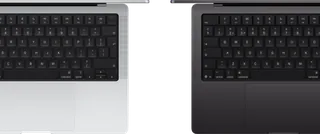

14-inch MacBook Pro laptops, interior, lids open, silver and space black colours, backlit keyboard, black keys, Touch ID button in top-right corner, speakers along right and left sides, trackpad centred below keyboard: Apple (official store gallery photograph)

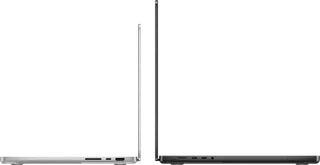

14-inch MacBook Pro, left side exterior, closed, space black colour, thin profile, ports: MagSafe 3, two Thunderbolt, headphone jack, 16-inch MacBook Pro right side exterior, closed, silver colour, thin profile, ports: SDXC card slot, Thunderbolt, HDMI: Apple (official store gallery photograph)

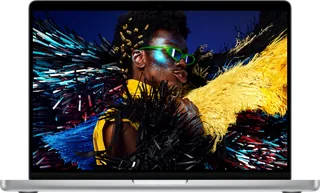

14-inch MacBook Pro, open, silver colour, standard Liquid Retina XDR display, an explosion of vibrant colours and sharp details bring a portrait photo to life: Apple (official store gallery photograph)

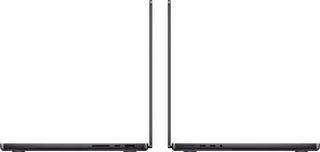

14-inch MacBook Pro laptops, side exteriors, open, space black colour, right-side ports: SDXC card slot, Thunderbolt and HDMI, left-side ports: MagSafe 3, two Thunderbolt, headphone jack, thin profile, rounded raised feet: Apple (official store gallery photograph)

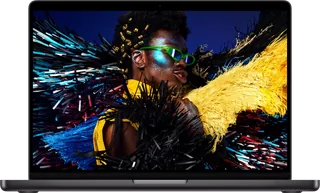

14-inch MacBook Pro, open, black colour, standard Liquid Retina XDR display, an explosion of vibrant colours and sharp details bring a portrait photo to life: Apple (official store gallery photograph)

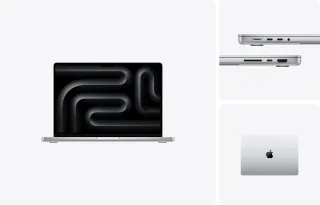

14-inch MacBook Pro, silver colour, open, display, side exterior, thin profile, right-side ports: SDXC card slot, Thunderbolt 4, HDMI, left-side ports: MagSafe 3, two Thunderbolt 4, headphone jack, top exterior, rounded corners, centred glossy black Apple logo: Apple (official store gallery photograph)

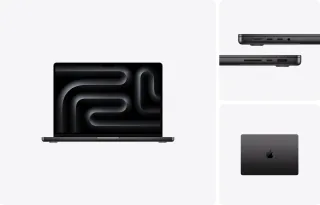

14-inch MacBook Pro, space black colour, open, display, side exterior, thin profile, right-side ports: SDXC card slot, Thunderbolt 4, HDMI, left-side ports: MagSafe 3, two Thunderbolt 4, headphone jack, top exterior, rounded corners, centred glossy black Apple logo: Apple (official store gallery photograph)
