VAIO TX (VGN-TX5XN)

Released 2007

The European TX5XN is an 11.1-inch Windows Vista ultraportable with a Core Solo processor, 100GB hard disk and an integrated DVD writer.

Size: 11.1″
Display: –
Processor: Intel Core Solo U1500
Memory: 1 GB
Weight: 1.25 kg
Battery: 7 h

Ultraportable

What reviewers say

The Register and Notebookcheck’s pre-production test praise the usable widescreen display, portability and integrated DVD writer, while finding performance modest and the price high. Both find the keyboard workable after adjustment. Notebookcheck reports long battery life but criticises chassis flex and a loose battery on its pre-production sample; The Register is more positive about the machine's construction.

From theregister.com and notebookcheck.net

Specifications

Report a wrong or missing spec

Display

Screen size: 11.1″
Resolution: 1366 × 768
Touchscreen: No
Display type: Sony X-black widescreen LCD. The Register and Notebookcheck identify LED backlighting.
Screen finish: Reflective surface with an anti-reflection coating (Notebookcheck)

Performance

Processor: Intel Core Solo U1500
CPU cores: 1
Graphics: Intel GMA 950
Memory: 1 GB
Storage: 100 GB
CPU: Ultra-low-voltage Core Solo U1500, 1.33 GHz; Intel lists 2MB L2 cache and a 533 MHz front-side bus
GPU: Intel GMA 950 integrated graphics identified by both exact-model reviews
Memory type: 1GB supplied, expandable to 1.5GB. The Register identifies 512MB on board and one occupied memory slot; Notebookcheck's specification lists DDR2 PC4300.
Storage type: 100GB hard disk; Notebookcheck identifies a Toshiba MK1011GAH running at 4200 rpm. Integrated double-layer DVD±RW drive.

Battery and size

Battery life (maker's claim): Up to 7 hours
Weight: 1.25 kg
Battery life detail: Sony Sweden claims up to seven hours without stating its test method. Notebookcheck measured 5 hours 4 minutes of Wi-Fi use and 4 hours of DVD playback on its pre-production test unit; these are different conditions.
Materials: Carbon-fibre laminate casing; shock sensor parks the hard-disk heads
Colours: Black lid with a silver keyboard and palm-rest surface; European XN/B configuration

Connections

Ports: 2 × USB-A, headphone jack
Operating system: Windows
Port detail: The Register and Notebookcheck identify two USB 2.0 sockets, VGA, Ethernet, modem, four-pin i.LINK and separate headphone/microphone sockets. The Register also identifies SD and Memory Stick slots and a PC Card slot; main port counts come from these exact-model reviews.
Keyboard: Compact keyboard with dedicated media buttons above it
Trackpad: Touchpad with separate buttons
Biometrics: Fingerprint reader; TPM protects authentication data
In the box: Windows Vista Business preinstalled. Docking station, carry cases and extra batteries are optional accessories in Sony's announcement.

Configurations

Processor	Memory	Storage	Graphics
Intel Core Solo U1500	1 GB	100 GB	Intel GMA 950

Pros and cons

Pros

1.25kg maker-stated weight
Integrated double-layer DVD writer
Fingerprint reader and TPM security

Cons

Single-core processor
Memory expansion limited to 1.5GB
Mechanical hard disk

Closest rivals

Model	Size	Display	Processor	Memory	Weight	Battery	Released
SonyVAIO TX (VGN-TX1XP/B)	11.1″	–	Intel Pentium M 753	1 GB	1.25 kg	–	Oct 2005
SonyVAIO TZ (VGN-TZ11XN/B)	11.1″	–	Intel Core 2	2 GB	–	–	Jun 2007
SonyVAIO TT (VGN-TT11WN/B)	11.1″	–	Intel Core 2	4 GB	1.32 kg	–	2008

Sources

Photo: The Register

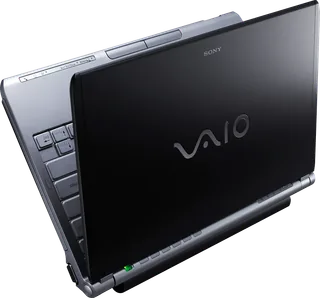

Black VAIO TX5XN/B from behind with the display partly open, showing the lid and front card slots: Sony

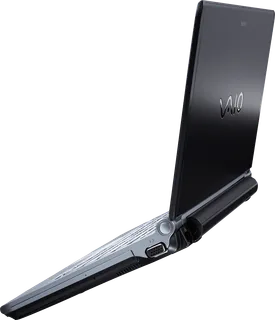

Black VAIO TX5XN/B with its display open, viewed from the right to show its DVD drive and VGA socket: Sony
