Canon EF 50mm f/1.4 USM

Canon · EF

EF 50mm f/1.4 USM

Released June 1993

A 50 mm f/1.4 standard prime for Canon EF cameras, with micro USM autofocus, full-time manual focus and a 58 mm filter thread.

Mount
Canon EF
Focal length
50 mm
Max aperture
f/1.4
Stabilisation
No
Weight
290 g

What reviewers say

Both tests value the compact size, quiet autofocus and sharpness when stopped down, while noting reduced contrast, soft corners and shading at f/1.4. The Digital Picture describes the wide-open image as soft and dreamy; Photozone finds very good central resolution. Both find good value and decent construction, though Photozone highlights out-of-focus fringing.

From the-digital-picture.com, photozone.de and photozone.de

Optics

Lens type
Prime
Focal length
50 mm
Maximum aperture
f/1.4
Minimum aperture
f/22
Optical construction
Seven elements in six groups
Special elements
Two high-refraction glass elements according to Canon Camera Museum
Coatings
Super Spectra coating according to Canon UK
Diaphragm
Eight blades; Canon UK's store describes a circular diaphragm, while Photozone finds angular highlights when stopped down
Angle of view
46° diagonal, 40° horizontal and 27° vertical

Mount and compatibility

Mounts
Canon EF
Image circle
Full frame
Compatibility
Canon EF full-frame and APS-C cameras

Focus and stabilisation

Autofocus
Yes
Minimum focus distance
0.45 m
Maximum magnification
0.15×
Optical stabilisation
No
Autofocus detail
Micro USM with mechanical full-time manual focus; Canon's manual permits adjustment after One Shot AF while holding the shutter button halfway
Focus distance detail
Overall linear extension focusing according to Canon USA; front filter thread does not rotate according to The Digital Picture
Magnification detail
EF12 II extension tube gives 0.24–0.39×; EF25 II gives 0.53–0.68× according to Canon UK
Stabilisation detail
No image stabilisation according to The Digital Picture's exact-model specification table

Design

Dust and moisture resistant
No
Filter diameter
58 mm
Maximum diameter
73.8 mm
Length
50.5 mm
Weight
290 g
Controls
AF/MF switch, focusing ring, distance scale and infrared index according to Canon's manual
Weather resistance
No weather sealing according to The Digital Picture's exact-model specification table
Dimensions detail
73.8 mm diameter × 50.5 mm length in the retracted state according to Canon UK; Canon's manual measures length from the mount surface to the front, with caps adding 21.5 mm
Weight detail
290 g for the lens only according to Canon's manual
Lens hood
Optional ES-71 II hood; reversible for storage according to Canon's manual
In the box
Lens, E-58II cap, Lens Dust Cap E and user manual according to Canon UK's store
Release detail
Canon Camera Museum records June 1993 marketing

Pros and cons

Pros

  • f/1.4 maximum aperture
  • Full-time manual focus
  • 290 g lens weight

Cons

  • No optical stabilisation
  • No weather sealing

Closest rivals

Model
MountFocal lengthMax apertureStabilisationWeightReleased
Canon EF50 mmf/1.8No130 gDec 1990
Canon EF50 mmf/1.8–190 gMar 1987
Canon EF35 mmf/1.4–580 gDec 1998

Sources

  1. canon.co.uk/lenses/ef-50mm-f-1-4-usm-lens/specification.html
  2. global.canon/en/c-museum/product/ef318.html
  3. canon.co.uk/store/canon-ef-50mm-f-1-4-usm-lens/2515A012
  4. usa.canon.com/support/p/ef-50mm-f-1-4-usm
  5. media.the-digital-picture.com/Owners-Manuals/Canon-EF-35mm-f-1.4-L-USM-Lens.pdf
  6. the-digital-picture.com/Reviews/Canon-EF-50mm-f-1.4-USM-Lens-Review.aspx
  7. the-digital-picture.com/Reviews/Lens-Specifications.aspx
  8. photozone.de/canon_eos_ff/564-canon50f14ff

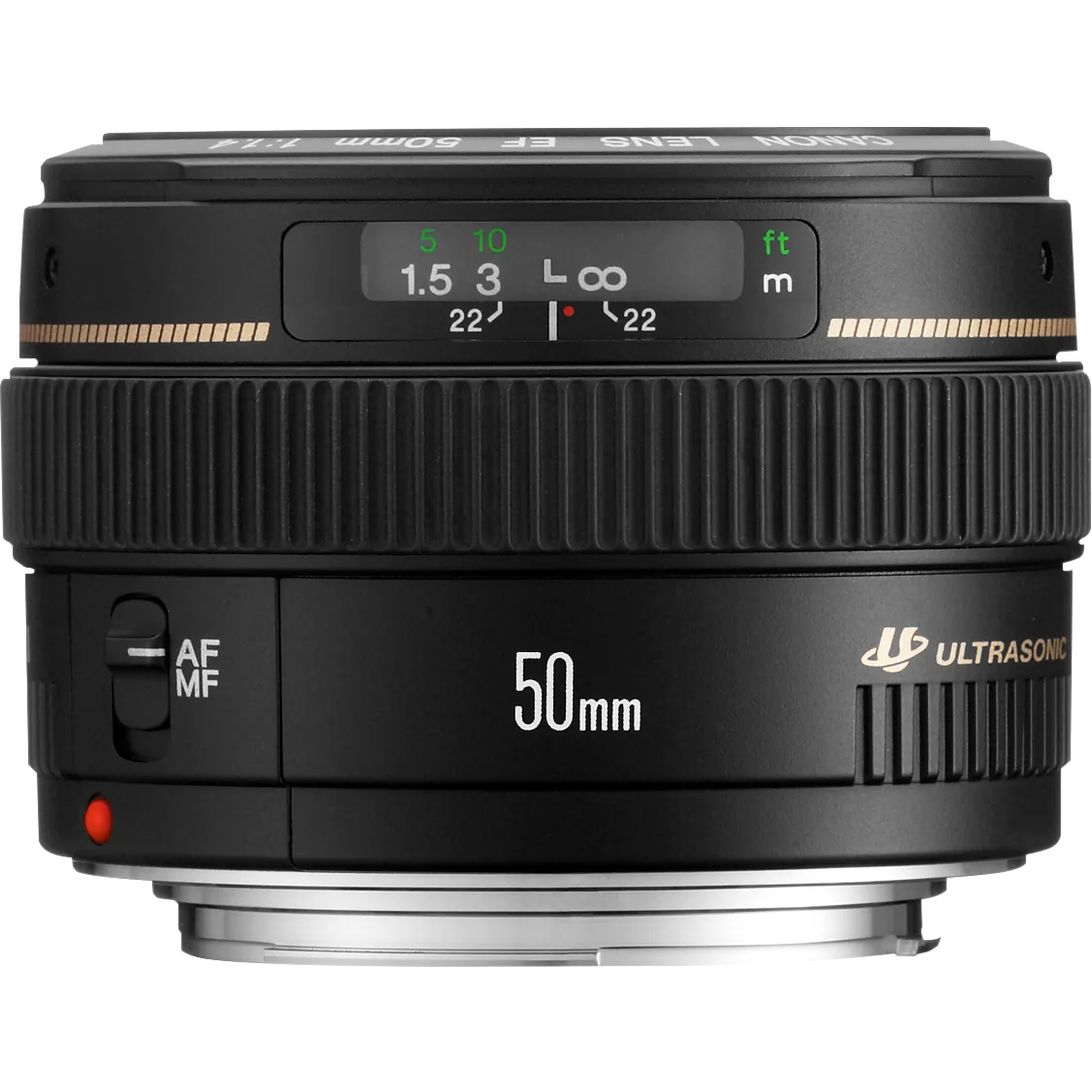

Photo: Canon UK official EF 50mm f/1.4 USM product photograph; complete supplied canvas and white background retained
