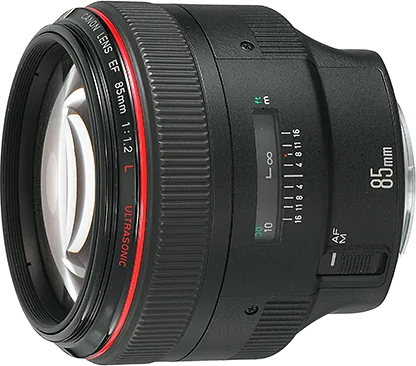

Canon EF 85mm f/1.2L USM

Canon · EF

EF 85mm f/1.2L USM

Released September 1989

Canon's original EF 85 mm f/1.2L portrait prime, with USM autofocus, an aspherical element and electronically driven manual focusing.

Mount
Canon EF
Focal length
85 mm
Max aperture
f/1.2
Stabilisation
No
Weight
1,025 g

What reviewers say

Both tests value the wide-aperture sharpness and strong background blur for portraits, while finding autofocus too slow for rapidly changing subject distances. The Digital Picture highlights the weight and awkward powered manual focusing. Castleman's controlled comparison finds little optical difference from the Mark II in most portrait situations, but appreciably more flare and slower autofocus.

From the-digital-picture.com and wlcastleman.com

Optics

Lens type
Prime
Focal length
85 mm
Maximum aperture
f/1.2
Minimum aperture
f/16
Optical construction
Eight elements in seven groups; floating optical system
Special elements
One aspherical element and two high-refraction elements according to Canon
Diaphragm
Eight blades; non-rounded according to The Digital Picture
Angle of view
28°30′ diagonal, 24° horizontal and 16° vertical according to Canon's manual

Mount and compatibility

Mounts
Canon EF
Image circle
Full frame
Compatibility
Canon EF cameras with full-frame or APS-C sensors

Focus and stabilisation

Autofocus
Yes
Minimum focus distance
0.95 m
Maximum magnification
0.11×
Optical stabilisation
No
Autofocus detail
USM autofocus; The Digital Picture reports no focus-distance transmission for E-TTL II flash metering
Focus distance detail
Electronically driven manual focusing requires the camera to be powered on; front element moves during focusing according to The Digital Picture
Stabilisation detail
No optical stabilisation according to The Digital Picture's exact-model specifications

Design

Dust and moisture resistant
No
Filter diameter
72 mm
Maximum diameter
91.5 mm
Length
84 mm
Weight
1,025 g
Controls
AF/MF switch, focus ring, distance window and depth-of-field markings
Filter detail
Front screw-in filter; Canon's manual permits one filter at a time
Weather resistance
Not weather sealed according to The Digital Picture's exact-model specifications
Dimensions detail
91.5 mm maximum diameter × 84 mm length; 1,025 g lens-only. Canon's manual gives a further 21.5 mm with both caps fitted
Lens hood
ES-79 II according to Canon's manual; button-release fitting and reversible for storage
Release detail
Canon Camera Museum records September 1989 marketing; no first-sale day is given

Pros and cons

Pros

  • f/1.2 maximum aperture
  • Floating optical system

Cons

  • 1,025 g weight
  • Manual focusing requires power from the camera
  • No optical stabilisation

Closest rivals

Model
MountFocal lengthMax apertureStabilisationWeightReleased
Canon EF85 mmf/1.8No425 gJul 1992
Canon EF100 mmf/2.8–650 gApr 1990
Canon EF85 mmf/1.2No1,025 gMar 2006

Newer model: EF 85mm f/1.2L II USM.

Sources

  1. global.canon/en/c-museum/product/ef284.html
  2. canon.jp/-/media/Project/Canon/CanonJP/Website/support/manual/ef/fixed-focal/ef…
  3. the-digital-picture.com/Reviews/Canon-EF-85mm-f-1.2-L-USM-Lens-Review.aspx
  4. the-digital-picture.com/Reviews/Lens-Specifications.aspx
  5. wlcastleman.com/equip/reviews/85mm/index.htm
