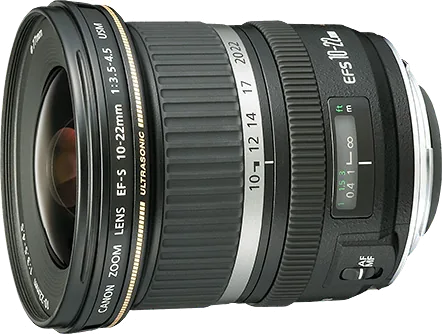

EF-S 10–22mm f/3.5–4.5 USM

Released November 2004

A 385 g ultra-wide zoom for Canon EF-S cameras with ring-type USM autofocus, full-time manual adjustment and a 0.24 m minimum focusing distance.

Mount: Canon EF-S
Focal length: 10–22 mm
Max aperture: f/3.5–4.5
Stabilisation: No
Weight: 385 g

Zoom

What reviewers say

Bob Atkins and Cameralabs find useful ultra-wide coverage, fast quiet focusing and strong image quality, with softer extreme corners at wide apertures. Both praise relatively low distortion. Their vignetting findings differ; Atkins sees little obvious shading, while Cameralabs measures greater corner fall-off but finds its gentle gradient unobtrusive. Cameralabs also regards the build and ring operation as less refined than Canon L lenses.

From bobatkins.com, bobatkins.com, bobatkins.com, bobatkins.com, cameralabs.com, cameralabs.com, cameralabs.com and cameralabs.com

Specifications

Report a wrong or missing spec

Optics

Lens type: Zoom
Focal length: 10–22 mm
Maximum aperture: f/3.5–4.5
Minimum aperture: f/22–29
Optical construction: 13 elements in 10 groups
Special elements: Three aspherical elements and one Super UD element according to Canon's US announcement
Coatings: Super Spectra coatings according to Canon's UK store
Aperture detail: Minimum f/22–29 with third-stop settings; f/22–27 with half-stop settings
Diaphragm: Six blades with a circular aperture
Angle of view: Horizontal 97°10′–54°30′; vertical 74°10′–37°50′; diagonal 107°30′–63°30′

Mount and compatibility

Mounts: Canon EF-S
Image circle: APS-C
Compatibility: Canon EF-S compatible APS-C cameras; 16–35 mm equivalent field of view; EOS M requires the EF-EOS M adaptor
Teleconverter support: EF1.4X II and EF2X II cannot be used according to Canon's manual

Focus and stabilisation

Autofocus: Yes
Minimum focus distance: 0.24 m
Maximum magnification: 0.17×
Optical stabilisation: No
Autofocus detail: Ring-type USM; manual focus adjustment after One Shot AF while holding the shutter halfway according to Canon's manual
Focus distance detail: Minimum focus distance 0.24 m throughout the zoom range; 0.17× maximum magnification at 22 mm
Magnification detail: EF12 II tube is incompatible at 10 mm and gives 0.77–0.58× at 22 mm; manual advises against EF25 II because the working distance is very short
Stabilisation detail: No optical image stabilisation

Design

Filter diameter: 77 mm
Maximum diameter: 83.5 mm
Length: 89.8 mm
Weight: 385 g
Zoom design: Outer barrel length remains unchanged during zooming; internal focusing and non-rotating filter mount according to Cameralabs
Dimensions detail: 83.5 mm maximum diameter × 89.8 mm mount-to-front length without caps
Weight detail: 385 g lens-only figure according to Canon's manual
Lens hood: Optional EW-83E, reversible for storage; LP1319 pouch also optional
In the box: Lens, E-77U front cap, Lens Dust Cap E and user manual according to Canon's UK store
Release detail: Canon Camera Museum records November 2004 introduction; the Japanese announcement specified late November, while the US announcement stated autumn. No UK first-sale day is established by these sources.

Pros and cons

Pros

16–35 mm equivalent field of view
Ring-type USM with manual focus override
Non-rotating filter mount

Cons

No optical stabilisation
Hood and pouch sold separately
Limited 0.17× maximum magnification

Closest rivals

Model	Mount	Focal length	Max aperture	Stabilisation	Weight	Released
CanonEF-S 10–18mm f/4.5–5.6 IS STM	Canon EF-S	10–18 mm	f/4.5–5.6	Yes	240 g	May 2014
CanonEF-S 18–55mm f/3.5–5.6 II	Canon EF-S	18–55 mm	f/3.5–5.6	No	190 g	Mar 2005
CanonEF-S 18–55mm f/3.5–5.6 II USM	Canon EF-S	18–55 mm	f/3.5–5.6	–	190 g	Mar 2005
