Home Lenses Canon RF 24mm F1.8 MACRO IS STM Canon · RF
RF 24mm F1.8 MACRO IS STM Released August 2022
A compact full-frame wide-angle prime for EOS R cameras, with an f/1.8 aperture, optical stabilisation and half-life-size close-ups.
Compare with another lens Compare with… RF 20-50mm F4L IS USM PZ (2026) RF 14mm F1.4L VCM (2026) RF 7-14mm F2.8-3.5L FISHEYE STM (2026) RF 45mm F1.2 STM (2025) RF 85mm F1.4L VCM (2025) RF 75–300mm F4–5.6 (2025) RF 20mm F1.4 L VCM (2025) RF-S 14–30mm F4–6.3 IS STM PZ (2025) RF 16–28mm F2.8 IS STM (2025) RF 24mm F1.4 L VCM (2024) RF 50mm F1.4 L VCM (2024) RF 70-200mm F2.8L IS USM Z (2024) RF 28–70mm F2.8 IS STM (2024) RF 35mm F1.4 L VCM (2024) RF 200–800mm F6.3–9 IS USM (2023) RF 24-105mm F2.8 L IS USM Z (2023) RF-S 10–18mm F4.5–6.3 IS STM (2023) RF 10–20mm F4 L IS STM (2023) RF 28mm F2.8 STM (2023) RF 100–300mm F2.8L IS USM (2023) RF 24–50mm F4.5–6.3 IS STM (2023) RF-S 55–210mm F5–7.1 IS STM (2023) RF 135mm F1.8 L IS USM (2023) RF 15–30mm F4.5–6.3 IS STM (2022) RF-S 18–150mm F3.5–6.3 IS STM (2022) RF-S 18–45mm F4.5–6.3 IS STM (2022) RF 1200mm F8L IS USM (2022) RF 800mm F5.6L IS USM (2022) RF 100–400mm F5.6–8 IS USM (2021) RF 16mm F2.8 STM (2021) RF 14–35mm F4 L IS USM (2021) RF 100mm F2.8 L Macro IS USM (2021) RF 400mm F2.8L IS USM (2021) RF 600mm F4L IS USM (2021) RF 70–200mm F4 L IS USM (2021) RF 50mm F1.8 STM (2020) RF 85mm F2 MACRO IS STM (2020) RF 100–500mm F4.5–7.1L IS USM (2020) RF 600mm F11 IS STM (2020) RF 800mm F11 IS STM (2020) RF 24–105mm F4–7.1 IS STM (2020) RF 85mm F1.2 L USM DS (2019) RF 70–200mm F2.8 L IS USM (2019) RF 15–35mm F2.8 L IS USM (2019) RF 24–240mm F4–6.3 IS USM (2019) RF 24–70mm F2.8L IS USM (2019) RF 85mm F1.2 L USM (2019) RF 28–70mm F2 L USM (2018) RF 35mm F1.8 MACRO IS STM (2018) RF 24–105mm F4L IS USM (2018) RF 50mm F1.2 L USM (2018) EF 70–200mm f/2.8L IS III USM (2018) EF 70–200mm f/4L IS II USM (2018) EF 85mm f/1.4L IS USM (2017) EF-S 35mm f/2.8 Macro IS STM (2017) EF-S 18–55mm f/4–5.6 IS STM (2017) EF 16–35mm f/2.8L III USM (2016) EF-S 18–135mm f/3.5–5.6 IS USM (2016) EF 24–105mm f/4L IS II USM (2016) EF 35mm f/1.4L II USM (2015) EF 50mm f/1.8 STM (2015) EF 24–105mm f/3.5–5.6 IS STM (2014) EF-S 24mm f/2.8 STM (2014) EF-S 10–18mm f/4.5–5.6 IS STM (2014) EF-S 55–250mm f/4–5.6 IS STM (2013) EF-S 18–55mm f/3.5–5.6 IS STM (2013) EF 24–70mm f/4L IS USM (2012) EF 35mm f/2 IS USM (2012) EF 24–70mm f/2.8L II USM (2012) EF 24mm f/2.8 IS USM (2012) EF 28mm f/2.8 IS USM (2012) EF-S 18–135mm f/3.5–5.6 IS STM (2012) EF-S 55–250mm f/4–5.6 IS II (2011) EF-S 18–55mm f/3.5–5.6 III (2011) EF-S 18–55mm f/3.5–5.6 IS II (2011) EF 70–200mm f/2.8L IS II USM (2010) EF 100mm f/2.8L Macro IS USM (2009) EF-S 15–85mm f/3.5–5.6 IS USM (2009) EF-S 18–135mm f/3.5–5.6 IS (2009) EF 24mm f/1.4L II USM (2008) EF-S 18–200mm f/3.5–5.6 IS (2008) EF-S 55–250mm f/4–5.6 IS (2007) EF-S 18–55mm f/3.5–5.6 IS (2007) EF 50mm f/1.2L USM (2007) EF 16–35mm f/2.8L II USM (2007) EF 70–200mm f/4L IS USM (2006) EF-S 17–55mm f/2.8 IS USM (2006) EF 85mm f/1.2L II USM (2006) EF-S 18–55mm f/3.5–5.6 II (2005) EF-S 18–55mm f/3.5–5.6 II USM (2005) EF-S 60mm f/2.8 Macro USM (2005) EF 24–105mm f/4L IS USM (2005) EF-S 10–22mm f/3.5–4.5 USM (2004) EF-S 17–85mm f/4–5.6 IS USM (2004) EF-S 18–55mm f/3.5–5.6 USM (2003) EF 24–70mm f/2.8L USM (2002) EF 16–35mm f/2.8L USM (2001) EF 70–200mm f/2.8L IS USM (2001) EF 100mm f/2.8 Macro USM (2000) EF 70–200mm f/4L USM (1999) EF 35mm f/1.4L USM (1998) EF 24mm f/1.4L USM (1997) EF 135mm f/2L USM (1996) EF 200mm f/2.8L II USM (1996) EF 28mm f/1.8 USM (1995) EF 70–200mm f/2.8L USM (1995) EF 50mm f/1.4 USM (1993) EF 85mm f/1.8 USM (1992) EF 200mm f/2.8L USM (1991) EF 50mm f/1.8 II (1990) EF 35mm f/2 (1990) EF 100mm f/2.8 Macro (1990) EF 80–200mm f/2.8L (1989) EF 85mm f/1.2L USM (1989) EF 24mm f/2.8 (1988) EF 28mm f/2.8 (1987) EF 50mm f/1.8 (1987) NIKKOR Z 70–200mm f/2.8 VR S II (2026) NIKKOR Z 24–105mm f/4–7.1 (2026) NIKKOR Z DX 16–50mm f/2.8 VR (2025) NIKKOR Z DX MC 35mm f/1.7 (2025) NIKKOR Z 24-70mm f/2.8 S II (2025) NIKKOR Z 28-135mm f/4 PZ (2025) NIKKOR Z 35mm f/1.2 S (2025) NIKKOR Z 50mm f/1.4 (2024) NIKKOR Z 35mm f/1.4 (2024) NIKKOR Z 28-400mm f/4-8 VR (2024) NIKKOR Z 135mm f/1.8 S Plena (2023) NIKKOR Z 600mm f/6.3 VR S (2023) NIKKOR Z 180-600mm f/5.6-6.3 VR (2023) NIKKOR Z 70-180mm f/2.8 (2023) NIKKOR Z DX 24mm f/1.7 (2023) NIKKOR Z DX 12-28mm f/3.5-5.6 PZ VR (2023) NIKKOR Z 26mm f/2.8 (2023) NIKKOR Z 85mm f/1.2 S (2023) NIKKOR Z 600mm f/4 TC VR S (2022) NIKKOR Z 17-28mm f/2.8 (2022) NIKKOR Z 400mm f/4.5 VR S (2022) NIKKOR Z 800mm f/6.3 VR S (2022) NIKKOR Z 400mm f/2.8 TC VR S (2022) NIKKOR Z 28-75mm f/2.8 (2022) NIKKOR Z 100-400mm f/4.5-5.6 VR S (2021) NIKKOR Z 24-120mm f/4 S (2021) NIKKOR Z DX 18-140mm f/3.5-6.3 VR (2021) NIKKOR Z 40mm f/2 (2021) NIKKOR Z 28mm f/2.8 (2021) NIKKOR Z MC 105mm f/2.8 VR S (2021) NIKKOR Z MC 50mm f/2.8 (2021) NIKKOR Z 50mm f/1.2 S (2020) NIKKOR Z 14-24mm f/2.8 S (2020) NIKKOR Z 24-50mm f/4-6.3 (2020) NIKKOR Z 70-200mm f/2.8 VR S (2020) NIKKOR Z 24-200mm f/4-6.3 VR (2020) NIKKOR Z 20mm f/1.8 S (2020) NIKKOR Z DX 16-50mm f/3.5-6.3 VR (2019) NIKKOR Z DX 50-250mm f/4.5-6.3 VR (2019) NIKKOR Z 58mm f/0.95 S Noct (2019) NIKKOR Z 24mm f/1.8 S (2019) NIKKOR Z 85mm f/1.8 S (2019) NIKKOR Z 24-70mm f/2.8 S (2019) NIKKOR Z 14-30mm f/4 S (2019) NIKKOR Z 50mm f/1.8 S (2018) NIKKOR Z 24-70mm f/4 S (2018) NIKKOR Z 35mm f/1.8 S (2018) AF-S NIKKOR 500mm f/5.6E PF ED VR (2018) AF-S NIKKOR 180-400mm f/4E TC1.4 FL ED VR (2018) AF-S NIKKOR 28mm f/1.4E ED (2017) AF-S NIKKOR 70–200mm f/2.8E FL ED VR (2016) AF-S NIKKOR 105mm f/1.4E ED (2016) AF-S NIKKOR 24-70mm f/2.8E ED VR (2015) AF-S NIKKOR 200–500mm f/5.6E ED VR (2015) AF-S NIKKOR 24mm f/1.8G ED (2015) AF-S NIKKOR 500mm f/4E FL ED VR (2015) AF-S NIKKOR 600mm f/4E FL ED VR (2015) AF-S NIKKOR 20mm f/1.8G ED (2014) AF-S NIKKOR 400mm f/2.8E FL ED VR (2014) AF-S DX NIKKOR 18–300mm f/3.5–6.3G ED VR (2014) AF-S NIKKOR 35mm f/1.8G ED (2014) AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR (2013) AF-S NIKKOR 800mm f/5.6E FL ED VR (2013) AF-S NIKKOR 28mm f/1.8G (2012) AF-S NIKKOR 85mm f/1.8G (2012) AF-S DX Micro NIKKOR 40mm f/2.8G (2011) AF-S NIKKOR 50mm f/1.8G (2011) AF-S NIKKOR 35mm f/1.4G (2010) AF-S NIKKOR 24–120mm f/4G ED VR (2010) AF-S NIKKOR 85mm f/1.4G (2010) AF-S NIKKOR 24mm f/1.4G ED (2010) AF-S NIKKOR 16–35mm f/4G ED VR (2010) AF-S DX NIKKOR 35mm f/1.8G (2009) AF-S NIKKOR 50mm f/1.4G (2008) AF-S NIKKOR 14–24mm f/2.8G ED (2007) FE 400mm F4.5 GM OSS (2026) FE 600mm F6.3 GM OSS (2026) FE 8–14mm F3.5 Fisheye G (2026) FE 100–400mm F5.6–8 OSS (2026) FE 100–400mm F4.5 GM OSS (2026) FE 28-70mm F3.5-5.6 OSS II (2026) FE 100mm F2.8 Macro GM OSS (2025) FE 50–150mm F2 GM (2025) FE 16mm F1.8 G (2025) FE 400–800mm F6.3–8 G OSS (2025) FE 28–70mm F2 GM (2024) FE 85mm F1.4 GM II (2024) E PZ 16-50mm F3.5-5.6 OSS II (2024) FE 16-25mm F2.8 G (2024) FE 24-50mm F2.8 G (2024) FE 300mm F2.8 GM OSS (2024) FE 16–35mm F2.8 GM II (2023) FE 70-200mm F4 Macro G OSS II (2023) FE 50mm F1.4 GM (2023) FE 20-70mm F4 G (2023) E 11mm F1.8 (2022) E 15mm F1.4 G (2022) E PZ 10-20mm F4 G (2022) FE 24–70mm F2.8 GM II (2022) FE PZ 16-35mm F4 G (2022) FE 70–200mm F2.8 GM OSS II (2021) FE 14mm F1.8 GM (2021) FE 24mm F2.8 G (2021) FE 40mm F2.5 G (2021) FE 50mm F1.2 GM (2021) FE 50mm F2.5 G (2021) FE 35mm F1.4 GM (2021) FE 28-60mm F4-5.6 (2020) FE 12-24mm F2.8 GM (2020) FE 20mm F1.8 G (2020) E 70-350mm F4.5-6.3 G OSS (2019) E 16-55mm F2.8 G (2019) FE 35mm F1.8 (2019) FE 200-600mm F5.6-6.3 G OSS (2019) FE 600mm F4 GM OSS (2019) FE 135mm F1.8 GM (2019) FE 24mm F1.4 GM (2018) FE 400mm F2.8 GM OSS (2018) E 18-135mm F3.5-5.6 OSS (2018) FE 24-105mm F4 G OSS (2017) FE 100-400mm F4.5-5.6 GM OSS (2017) FE 12-24mm F4 G (2017) FE 16-35mm F2.8 GM (2017) FE 100mm F2.8 STF GM OSS (2017) FE 85mm F1.8 (2017) E PZ 18-110mm F4 G OSS (2016) FE 50mm F2.8 Macro (2016) FE 70-200mm F2.8 GM OSS (2016) Planar T* FE 50mm F1.4 ZA (2016) FE 50mm F1.8 (2016) FE 70-300mm F4.5-5.6 G OSS (2016) FE 24-70mm F2.8 GM (2016) FE 85mm F1.4 GM (2016) FE 90mm F2.8 Macro G OSS (2015) Distagon T* FE 35mm F1.4 ZA (2015) FE 24-240mm F3.5-6.3 OSS (2015) FE 28mm F2 (2015) FE PZ 28-135mm F4 G OSS (2014) Vario-Tessar T* FE 16-35mm F4 ZA OSS (2014) FE 70-200mm F4 G OSS (2014) Vario-Tessar T* FE 24-70mm F4 ZA OSS (2014) E PZ 18-105mm F4 G OSS (2013) Sonnar T* FE 55mm F1.8 ZA (2013) 70-200mm F2.8 G SSM II (2013) Sonnar T* FE 35mm F2.8 ZA (2013) Vario-Tessar T* E 16-70mm F4 ZA OSS (2013) Planar T* 50mm F1.4 ZA SSM (2013) E 20mm F2.8 (2013) E 10-18mm F4 OSS (2012) E 35mm F1.8 OSS (2012) E PZ 18-200mm F3.5-6.3 OSS (2012) E 18-200mm F3.5-6.3 OSS LE (2012) E 50mm F1.8 OSS (2011) Sonnar T* E 24mm F1.8 ZA (2011) DT 16–50mm F2.8 SSM (2011) E 55-210mm F4.5-6.3 OSS (2011) E 30mm F3.5 Macro (2011) DT 35mm F1.8 SAM (2010) E 16mm F2.8 (2010) DT 30mm F2.8 Macro SAM (2009) DT 50mm F1.8 SAM (2009) Vario-Sonnar T* 16-35mm F2.8 ZA SSM (2009) Vario-Sonnar T* 24–70mm F2.8 ZA SSM (2008) Vario-Sonnar T* DT 16–80mm F3.5–4.5 ZA (2007) Planar T* 85mm F1.4 ZA (2006) Sonnar T* 135mm F1.8 ZA (2006) 70–200mm F2.8 G (2006) 50mm F1.4 (2006) 50mm F2.8 Macro (2006)
Mount Canon RF
Focal length 24 mm
Max aperture f/1.8
Stabilisation Yes
Weight 270 g What reviewers say Both reviews appreciate the compact size, stabilisation, close focusing and pleasing background blur, while noting digital correction and audible autofocus. Cameralabs finds useful corner detail on EOS R and enjoys its stills/video versatility. OpticalLimits finds softer wide-open edges on a 45-megapixel body and less distinction for general photography. Both criticise the missing weather seals and separately sold hood.
From cameralabs.com , cameralabs.com and opticallimits.com
Optics
Lens type Prime
Focal length 24 mm
Maximum aperture f/1.8
Minimum aperture f/22
Macro lens Yes
Optical construction 11 elements in nine groups
Special elements One plastic-moulded aspherical and one UD element; Super Spectra coating; no fluorine coating
Diaphragm Nine blades, circular aperture Mount and compatibility
Mounts Canon RF
Image circle Full frame
Compatibility Full-frame Canon RF mount; compatible with APS-C EOS R bodies; RF extenders not compatible Focus and stabilisation
Autofocus Yes
Minimum focus distance 0.14 m
Maximum magnification 0.5×
Optical stabilisation Yes
Autofocus detail STM autofocus and electronic manual focusing; inner barrel extends towards closer focus
Magnification detail Half-life-size 0.5× maximum reproduction, not 1:1
Stabilisation detail Optical IS rated five stops with EOS R under CIPA, yaw/pitch; coordinated IS rated 6.5 stops with EOS R5 under CIPA, yaw/pitch Design
Dust and moisture resistant No
Filter diameter 52 mm
Maximum diameter 74.4 mm
Length 63.1 mm
Weight 270 g
Controls Separate focus and customisable control rings, AF/MF switch and IS on/off switch
Weather resistance No dust or moisture resistance
Dimensions detail Approximately 74.4 mm maximum diameter × 63.1 mm length, retracted
Weight detail Approximately 270 g lens
Lens hood EW-65B hood and LP1016 pouch, sold separately
In the box Lens, E-52 II front cap, RF lens dust cap and user manual

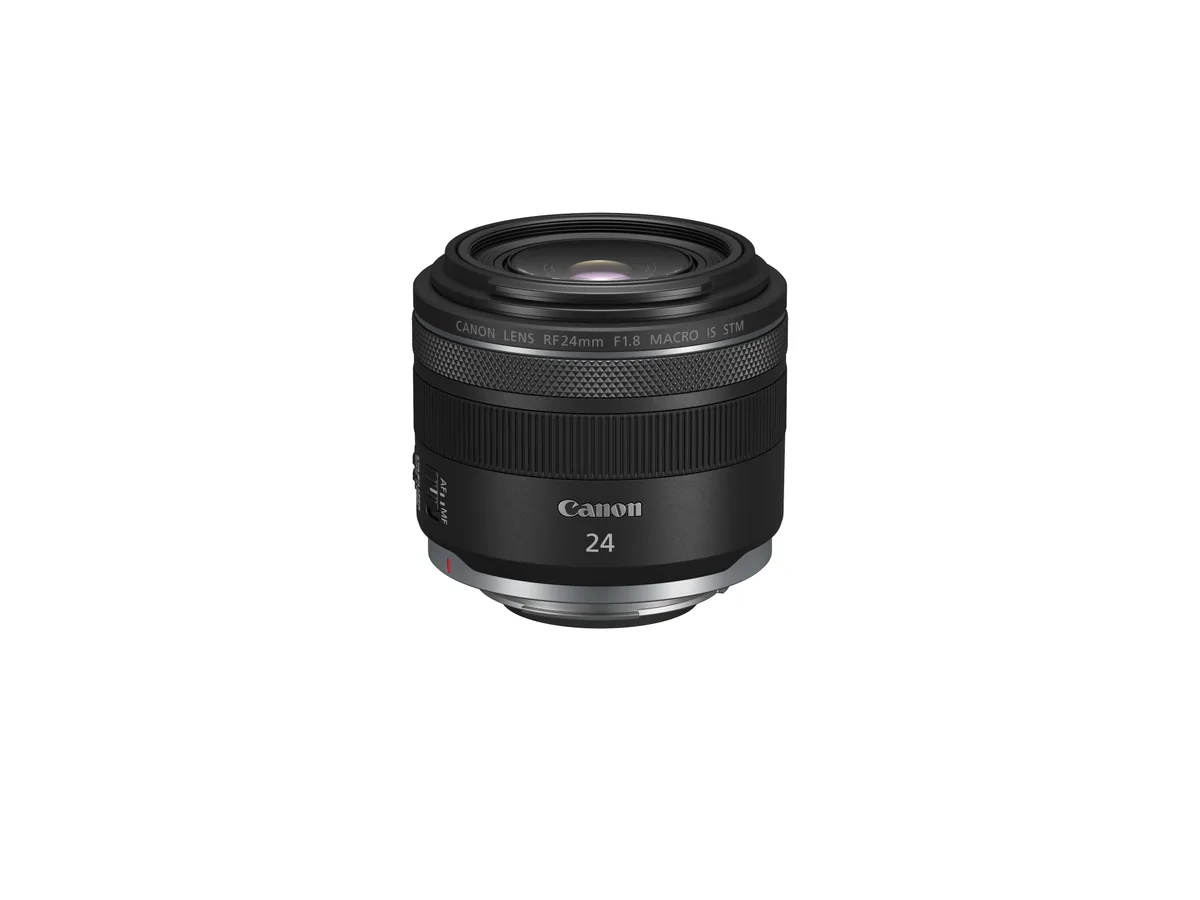

Release detail August 2022 marketed month in Canon Camera Museum Pros and cons Pros + f/1.8 maximum aperture+ 0.5× maximum magnification+ Optical image stabilisationCons − No dust or moisture resistance− Lens hood sold separately− Not 1:1 macro reproductionSources canon.co.uk/lenses/rf-24mm-f1-8-macro-is-stm/specifications canon.co.uk/store/canon-rf-24mm-f1-8-macro-is-stm-lens/5668C005 global.canon/en/c-museum/product/rf519.html cameralabs.com/canon-rf-24mm-f1-8-macro-is-stm-review cameralabs.com/canon-rf-24mm-f1-8-macro-is-stm-review/3 opticallimits.com/canon/canon-rf/canon-rf-24mm-f-1-8-is-stm-macro-review Photo: Canon Asia Photo Library; official press archive member RF24mm f1.8 MACRO IS STM Slant.jpg; complete supplied canvas and white background retained.

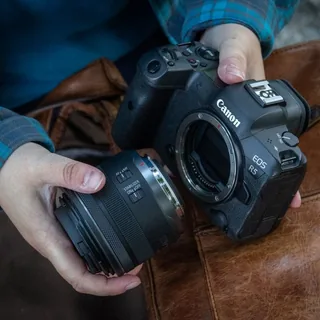

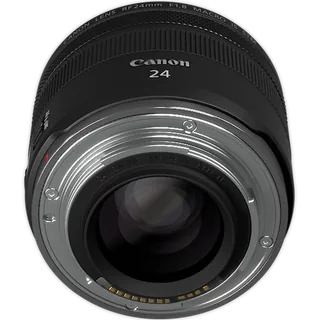

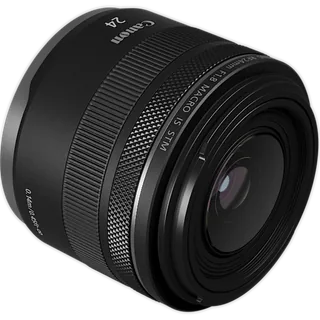

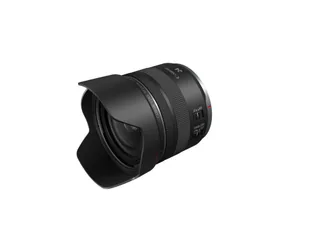

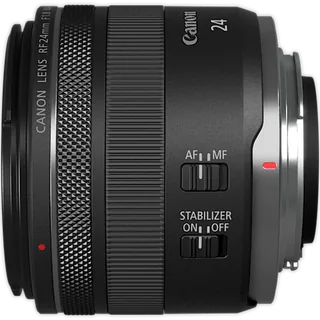

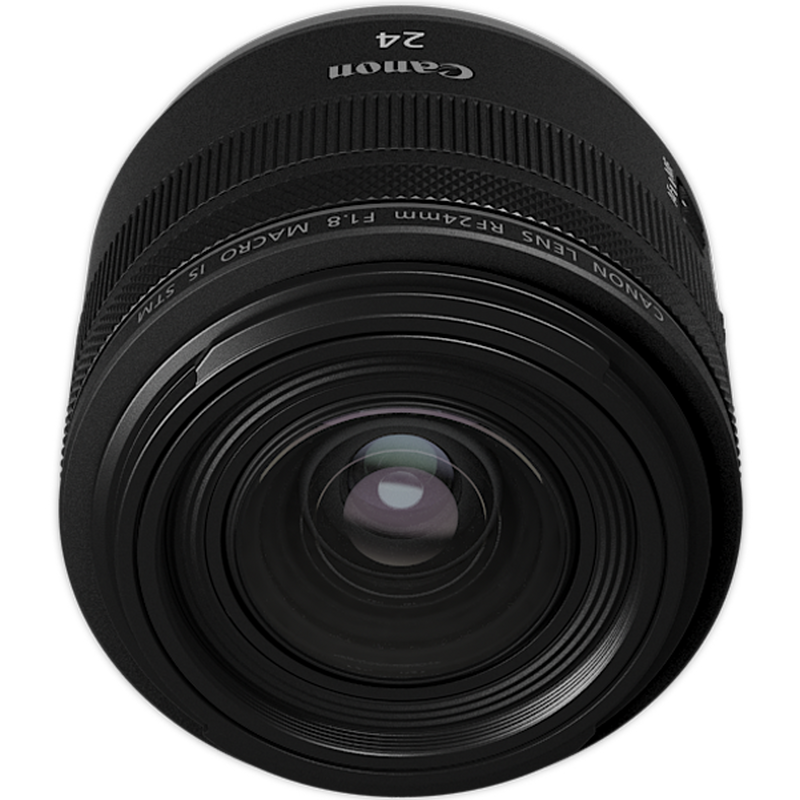

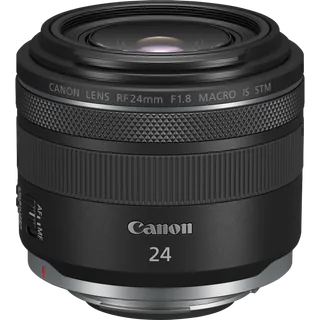

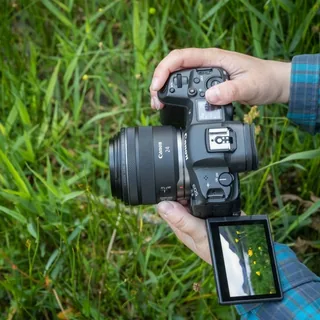

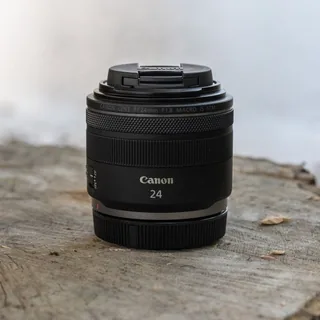

Canon RF 24mm F1.8 Macro IS STM, standing three-quarter front view: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, standing view showing the side switches: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, alternate tilted front view: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, view looking towards the front lens element: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, horizontal side view showing the switches: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, rear view showing the lens mount and contacts: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, standing with its cap attached on a stone surface: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, mounted on a camera held by a photographer outdoors: Canon (official UK Store product photograph) Canon RF 24mm F1.8 Macro IS STM, being attached to a camera: Canon (official UK Store product photograph) Canon RF24mm f1.8 MACRO IS STM Slant with hood, official press photograph: Canon Asia Photo Library; official press archive member RF24mm f1.8 MACRO IS STM Slant with hood.jpg; complete supplied canvas and white background retained. Spot a mistake? Tell us
