Apple · Cinema Display

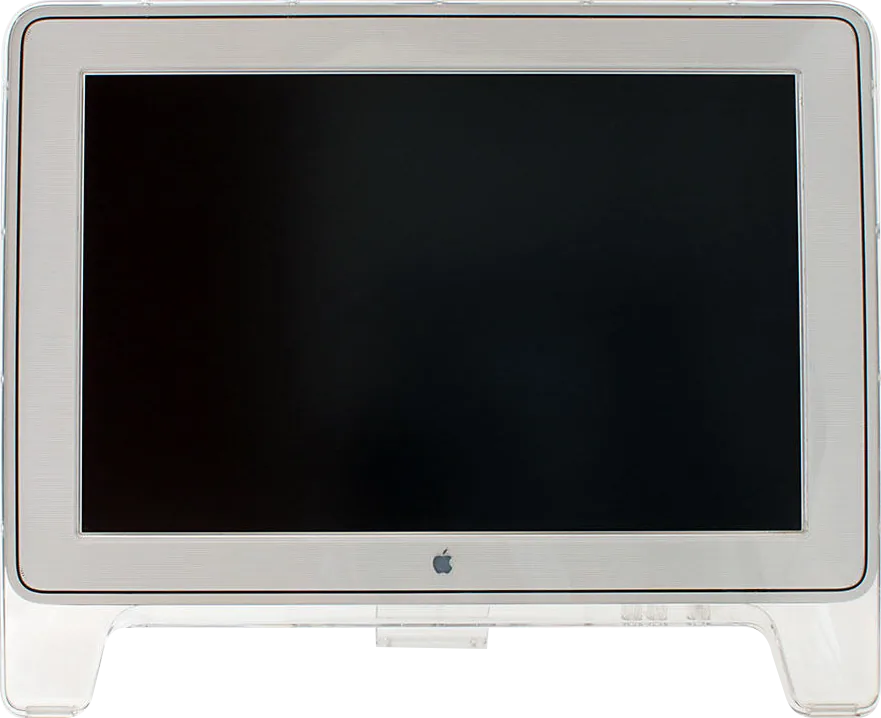

Cinema Display (22-inch, DVI)

Released December 1999

Apple's original widescreen Cinema Display provides a digital LCD workspace through DVI, with a separate power adapter and USB hub.

Specifications

Screen size: 22″
Resolution: 1600 × 1024
Sharpness: 86 pixels per inch
Panel: LCD (Thin-film transistor active-matrix LCD; Apple does not identify the panel subtype in the original documentation read)
Brightness (typical): 180 nits
Contrast ratio: 300:1
Screen finish: Matte
Shape: Flat
Colour depth: Up to 16.7 million colours; Apple does not identify the panel bit depth
Viewing angles: 160° horizontally and vertically, typical

Video inputs: DVI
USB-C charging: None
USB ports: 2 × USB-A
Other connections: Captive 24-pin DVI connector with TMDS; separate DC power input and USB connection
USB hub detail: Two-port self-powered USB 1.1 hub; up to 500 mA per port

Stand adjusts: Tilt
Weight with stand: 11.4 kg
Tilt: 10° to 30°
Size with stand: 588 × 479 × 210 mm minimum depth; maximum depth 310 mm (width × height × depth)
Controls: System startup and sleep, power on and off, brightness
Colours: Clear acrylic enclosure with graphite bezel

Power use: Apple Support lists maximum 77 W and energy saver 35 W; original AppleCare specifications list operating consumption below 62 W
Power supply: External power supply, 100–240 V AC; adapter weighs 398 g, separate from the 11.4 kg display
Software: Requires a Power Mac G4 with AGP 2X slot, DVI graphics card and built-in USB

Model	Size	Resolution	PPI	Panel	Refresh	Brightness	HDR	USB-C power	Released
AppleCinema Display (22-inch, ADC)	22″	1600 × 1024	86	LCD	–	180 nits	–	–	Jul 2000
DellPro 24 Monitor (E2425HM)	23.8″	1920 × 1080	93	IPS	100 Hz	250 nits	–	–	Mar 2025
DellPro 24 Monitor (E2426H)	23.8″	1920 × 1080	93	IPS	120 Hz	300 nits	–	–	Jul 2026
