Photo 1 of 8
Dell UltraSharp 24 USB-C Hub (U2424HE) · Photo source
Dell · UltraSharp
UltraSharp 24 USB-C Hub (U2424HE)
Dell's 23.8-inch 1080p 120Hz IPS office monitor with a USB-C hub, 90W laptop charging, 2.5GbE Ethernet and an ambient light sensor, for single-cable laptop desks.
- Size
- 23.8″
- Resolution
- 1920 × 1080
- PPI
- 93
- Panel
- IPS
- Refresh
- 120 Hz
- Brightness
- 250 nits
- HDR
- –
- USB-C power
- 90 W
Specifications
Report a wrong or missing specDisplay
- Screen size
- 23.8″
- Resolution
- 1920 × 1080 (Full HD)
- Sharpness
- 93 pixels per inch
- Panel
- IPS
- Refresh rate
- 120 Hz
- Response time (grey to grey)
- 5 ms
- Brightness (typical)
- 250 nits
- Contrast ratio
- 1,000:1
- Colour range
- 100% sRGB, 85% DCI-P3
- DCI-P3 coverage
- 85%
- Colour accuracy (Delta E)
- Below 2
- Screen finish
- Matte
- Shape
- Flat
- Colour depth
- 16.7 million colours
- sRGB coverage
- 100%
- Colour accuracy
- Delta E < 2 (average) (sRGB, BT.709); factory calibration report in the box
- Response time detail
- 5 ms (Fast), 8 ms (Normal)
- Variable refresh range
- 48–120 Hz (vertical scan range); Dynamic Refresh Rate (DRR) for Windows 11
- Viewing angles
- 178° horizontal, 178° vertical (typical)
- Pixel pitch
- 0.2745 mm x 0.2745 mm
- Eye care
- ComfortView Plus hardware low blue light; TÜV Rheinland Eye Comfort 3.0 (4 star); ambient light sensor (Auto Brightness); flicker-free
Connections
- Video inputs
- HDMI 1.4, DisplayPort 1.4, USB-C
- USB-C charging
- Up to 90 W
- USB ports
- USB-C, 4 × USB-A
- KVM switch
- Yes
- Ethernet
- Yes
- Speakers
- No
- HDMI detail
- 1 x HDMI 1.4 (HDCP 1.4), up to 1920 x 1080 at 120 Hz
- DisplayPort detail
- 1 x DisplayPort 1.4 in (HDCP 1.4), up to 1920 x 1080 at 120 Hz; 1 x DisplayPort out with MST
- USB-C detail
- USB-C upstream with DisplayPort 1.4 Alt Mode and Power Delivery up to 90 W; USB-C 10Gbps upstream (data only); 1 x USB-C downstream quick-access port (15 W)
- Daisy chaining
- DisplayPort out (MST)
- USB hub detail
- 3 x USB-A 10Gbps rear; quick access ports with 1 x USB-A 10Gbps (BC 1.2, 2 A) and 1 x USB-C (15 W)
- Audio out
- 3.5 mm audio line out
Design
- Stand adjusts
- Height, tilt, swivel, pivot
- VESA mount
- Yes
- Weight with stand
- 5.91 kg
- Height adjustment
- 150 mm
- Tilt
- -5° to 21°
- Swivel
- -45° to 45°
- Pivot
- -90° to 90°
- VESA pattern
- 100 x 100 mm
- Size with stand
- 538.64 x 181.75 x 364.00–496.53 mm (W x D x H)
- Size without stand
- 538.64 x 49.10 x 311.21 mm (W x D x H)
- Weight without stand
- 3.98 kg
Power and support
- Power use
- 14.5 W on mode, 0.5 W standby, 1.5 W networked standby, 0.3 W off, 210 W maximum
- Energy class
- D
- Power supply
- 100–240 VAC, 50/60 Hz, 2.2 A (typical)
- Software
- Dell Display and Peripheral Manager (Easy Arrange)
- Certifications
- ENERGY STAR, TÜV Rheinland Eye Comfort 3.0 (4 star), TÜV Rheinland hardware low blue light
- Warranty
- 3 years limited hardware (UK)
- In the box
- Stand, power cable, USB-C cable (1 m), DisplayPort 1.4 cable (1.8 m), USB-A to USB-C cable (1 m), factory calibration report
Pros and cons
Pros
- USB-C input with 90W charging, 2.5GbE Ethernet, KVM and a DisplayPort out for daisy chaining
- Factory calibrated to Delta E < 2 in sRGB and BT.709, with a calibration report in the box
- 120Hz refresh rate and a stand that adjusts 150 mm in height, with tilt, swivel and pivot
Cons
- 1920 x 1080 on 23.8 inches is only 93 ppi
- 90W charging may not be enough for larger performance laptops
- 250-nit brightness and 1000:1 contrast; no HDR
Closest rivals
Model | Size | Resolution | PPI | Panel | Refresh | Brightness | HDR | USB-C power | Released |
|---|---|---|---|---|---|---|---|---|---|
| 23.8″ | 1920 × 1080 | 93 | IPS | 120 Hz | 300 nits | – | – | Jul 2026 | |
| 23.8″ | 1920 × 1080 | 93 | IPS | 120 Hz | 300 nits | – | – | Apr 2026 | |
| 23.8″ | 1920 × 1080 | 93 | IPS | 120 Hz | 300 nits | – | – | Jul 2026 |
Sources
- dell.com/en-gb/shop/monitors/apd/dell-ultrasharp-24-usb-c-hub-monitor-u2424he/u…
- dl.dell.com/content/manual11718792-dell-ultrasharp-24-usb-c-hub-monitor-u2424he…
- eprel.ec.europa.eu/qr/1585563
- tftcentral.co.uk/news/dell-u2424h-and-u2424he-launched-with-23-8-ips-panels-and…
Photo: i.dell.com

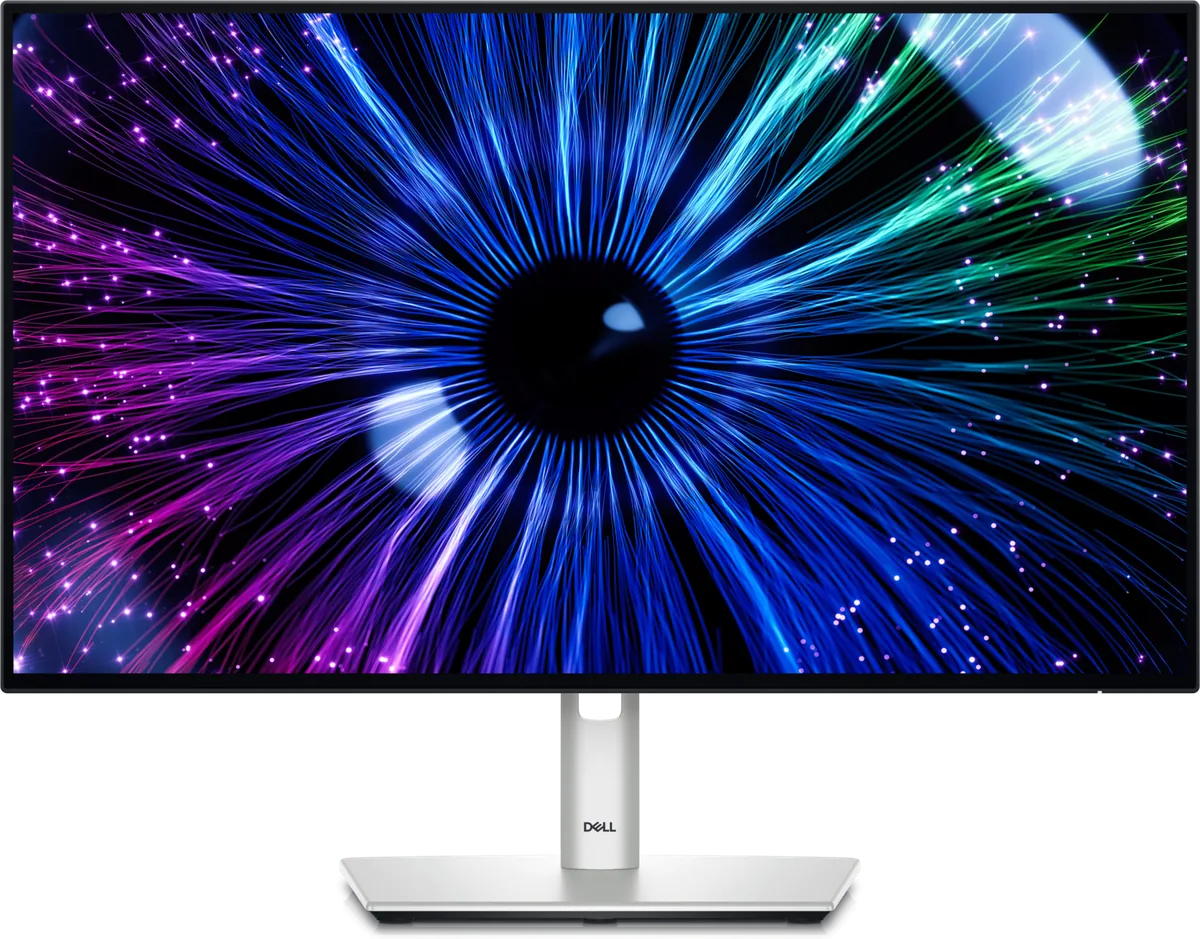

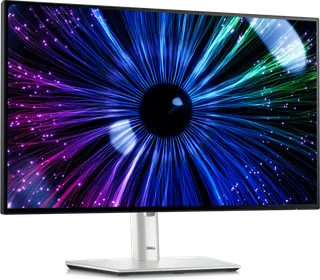

- UltraSharp 24 USB-C Hub (U2424HE), front three-quarter: i.dell.com/is/image/DellContent/content/dam/ss2/product-images/dell-client-prod…

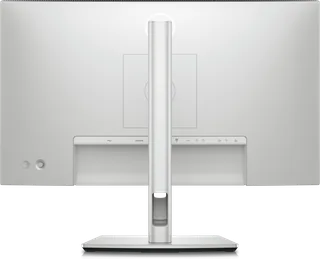

- UltraSharp 24 USB-C Hub (U2424HE), rear: i.dell.com/is/image/DellContent/content/dam/ss2/product-images/dell-client-prod…
- UltraSharp 24 USB-C Hub (U2424HE), underside ports: i.dell.com/is/image/DellContent/content/dam/ss2/product-images/dell-client-prod…

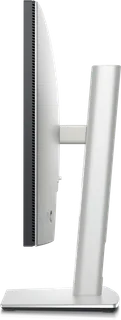

- UltraSharp 24 USB-C Hub (U2424HE), right profile: i.dell.com/is/image/DellContent/content/dam/ss2/product-images/dell-client-prod…

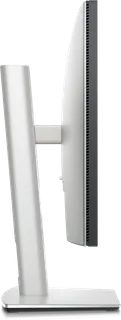

- UltraSharp 24 USB-C Hub (U2424HE), left profile: i.dell.com/is/image/DellContent/content/dam/ss2/product-images/dell-client-prod…

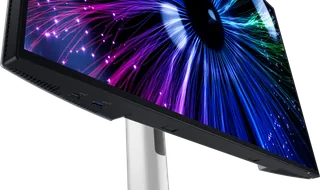

- UltraSharp 24 USB-C Hub (U2424HE), tilted panel and lower ports close-up: i.dell.com/is/image/DellContent//content/dam/ss2/product-images/dell-client-pro…

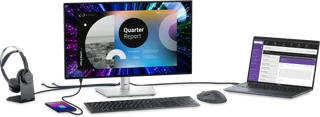

- UltraSharp 24 USB-C Hub (U2424HE), with optional headset, keyboard, mouse and laptop: i.dell.com/is/image/DellContent//content/dam/ss2/product-images/dell-client-pro…
