Photo 1 of 12
MSI MPG 346CQRF X24 · Photo source
MSI · MPG
MPG 346CQRF X24
MSI's 34-inch curved 3440 × 1440 Rapid VA gaming monitor at 240 Hz with DisplayHDR 400 and 98 W USB-C, for PC gamers who want a fast ultrawide without OLED's cost.
- Size
- 34″
- Resolution
- 3440 × 1440
- PPI
- 110
- Panel
- VA
- Refresh
- 240 Hz
- Brightness
- 400 nits
- HDR
- 400
- USB-C power
- 98 W
Specifications
Report a wrong or missing specDisplay
- Screen size
- 34″
- Resolution
- 3440 × 1440 (UWQHD)
- Sharpness
- 110 pixels per inch
- Panel
- VA
- Refresh rate
- 240 Hz
- Response time (grey to grey)
- 0.5 ms
- Brightness (typical)
- 400 nits
- HDR peak brightness
- 400 nits
- HDR certification
- DisplayHDR 400
- Contrast ratio
- 4,000:1
- Shape
- Curved (1500R)
- Adaptive sync
- VESA AdaptiveSync
- Colour depth
- 10-bit (8-bit + FRC), 1.07 billion colours
- HDR detail
- DisplayHDR 400
- Response time detail
- 0.5 ms grey-to-grey, 1 ms MPRT
- Variable refresh range
- 48–240 Hz (Adaptive-Sync)
- Viewing angles
- 178° / 178°
- Pixel pitch
- 0.23175 × 0.23175 mm
Connections
- Video inputs
- 2 × HDMI 2.1, DisplayPort 1.4a, USB-C
- USB-C charging
- Up to 98 W
- USB ports
- 2 × USB-A
- Speakers
- No
- HDMI detail
- 2 × HDMI 2.1 (FRL 10G), HDCP 2.3
- DisplayPort detail
- DisplayPort 1.4a, HDCP 2.3
- USB-C detail
- USB-C with DisplayPort Alt Mode and 98 W power delivery
- USB hub detail
- 2 × USB Type-A, 1 × USB-B upstream (USB 2.0)
- Audio out
- Headphone out
Design
- Stand adjusts
- Height, tilt, swivel
- VESA mount
- Yes
- Height adjustment
- 110 mm
- Tilt
- −5° to 15°
- Swivel
- −30° to 30°
- VESA pattern
- 100 × 100 mm
Power and support
- Power use
- 0.5 W standby; 0.3 W off
- Power supply
- Internal, 100–240 V
- Warranty
- 3 years
- In the box
- DisplayPort cable, HDMI cable, USB A-to-B cable, USB-C cable, power cord, quick guide
Pros and cons
Pros
- 3440 × 1440 at 240 Hz with 0.5 ms grey-to-grey response
- USB-C with DisplayPort Alt Mode and 98 W charging
- Two HDMI 2.1 ports and VESA DisplayHDR 400
Cons
- VA panel with a 1500R curve
- USB hub is USB 2.0; no speakers
- MSI lists no colour gamut, weight or energy data yet
Closest rivals
Model | Size | Resolution | PPI | Panel | Refresh | Brightness | HDR | USB-C power | Released |
|---|---|---|---|---|---|---|---|---|---|
| 34″ | 3440 × 1440 | 110 | VA | 240 Hz | 400 nits | 400 | – | Jul 2026 | |
| 34″ | 3440 × 1440 | 110 | VA | 180 Hz | 300 nits | – | – | May 2024 | |
| 34.14″ | 3440 × 1440 | 109 | IPS | 120 Hz | 300 nits | – | 90 W | Feb 2024 |
Sources
- uk.msi.com/Monitor/MPG-346CQRF-X24/Specification
- storage-asset.msi.com/specSheet/uk/monitor/MPG%20346CQRF%20X24.pdf
- eprel.ec.europa.eu/screen/product/electronicdisplays/2343643
Photo: storage-asset.msi.com

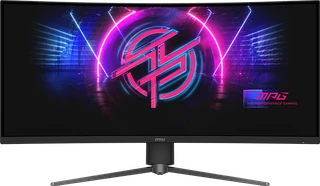

- MSI MPG 346CQRF X24 — Front view at standard stand height: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained

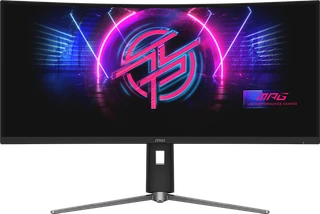

- MSI MPG 346CQRF X24 — Front view with stand raised: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained

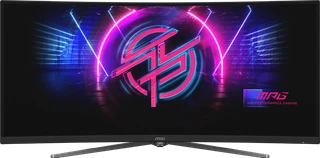

- MSI MPG 346CQRF X24 — Front view with stand lowered: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained

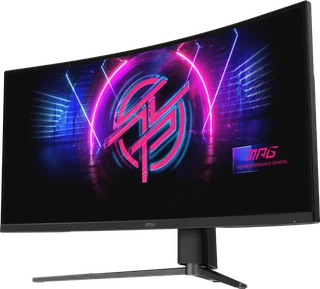

- MSI MPG 346CQRF X24 — Shallower front angled view: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained

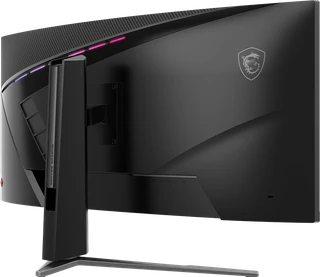

- MSI MPG 346CQRF X24 — Rear angled view: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained
- MSI MPG 346CQRF X24 — Top view of curved panel and stand: MSI MPG 346CQRF X24 US store exact-model gallery; original hardware RGB and alpha retained

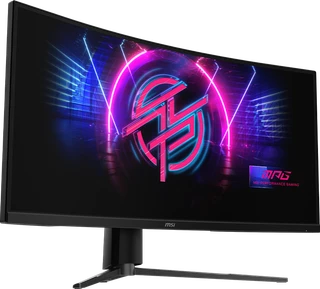

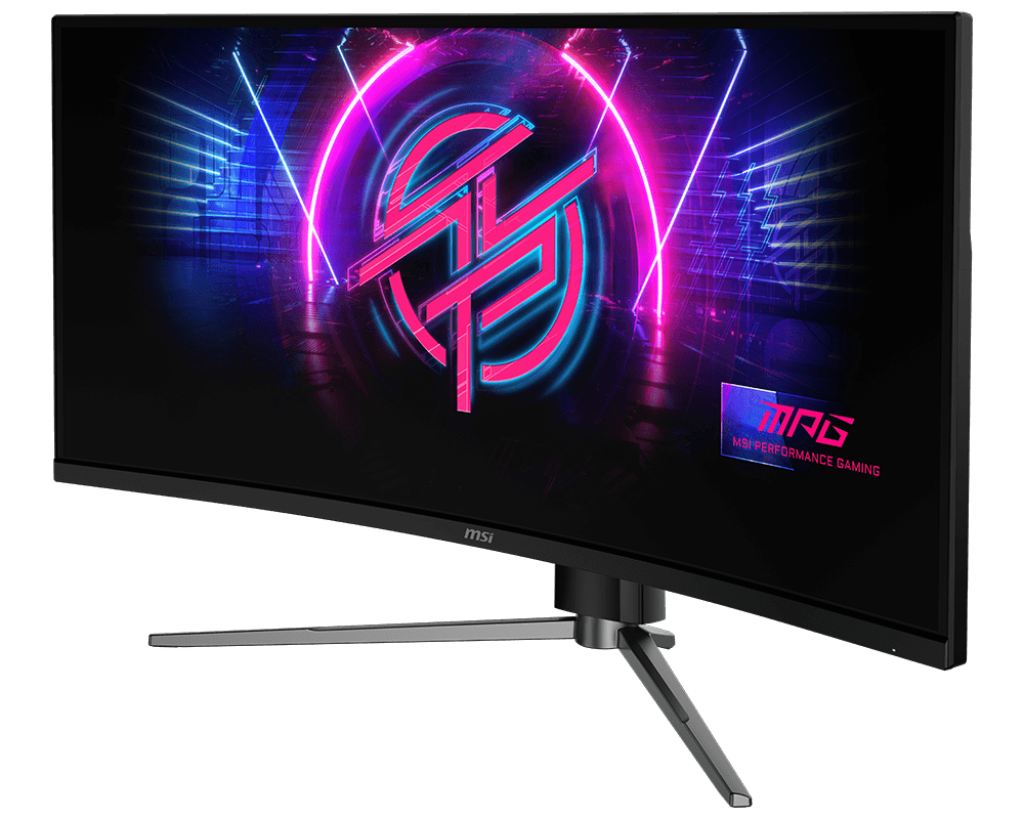

- MSI MPG 346CQRF X24 — Opposite front angled view: MSI MPG 346CQRF X24 UK store exact-model gallery, best published encoding; original hardware RGB and alpha retained

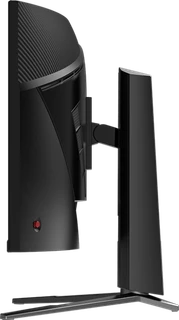

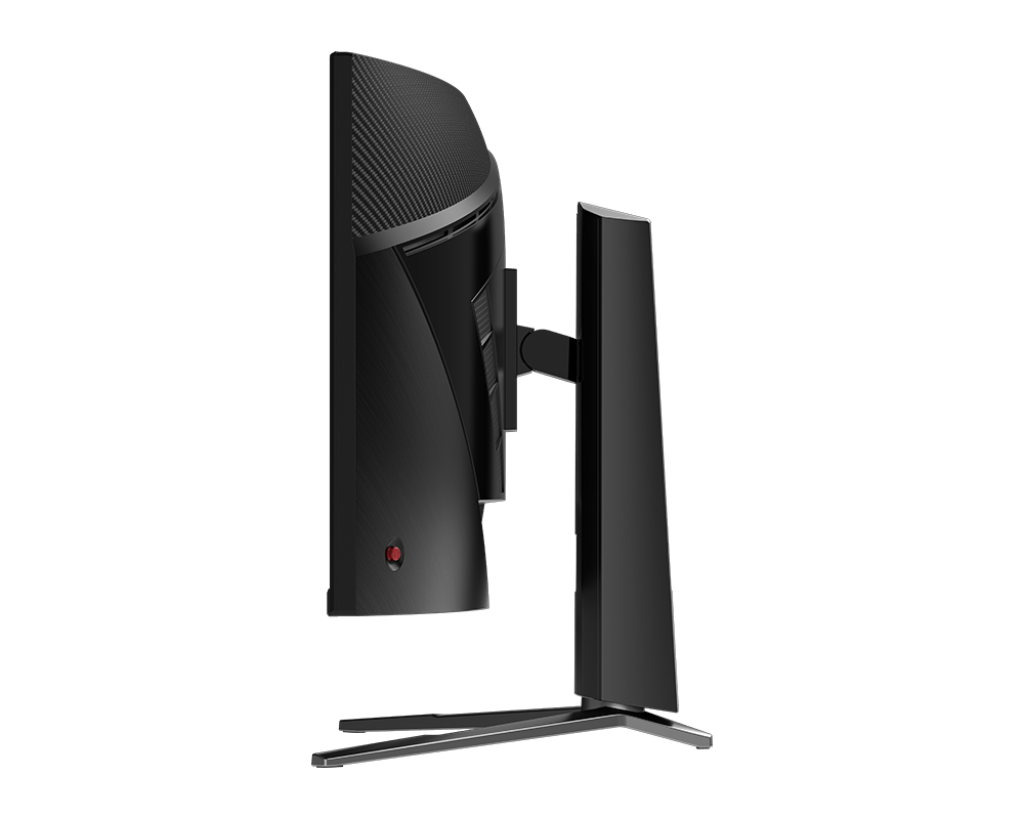

- MSI MPG 346CQRF X24 — Side profile: MSI MPG 346CQRF X24 UK store exact-model gallery, best published encoding; original hardware RGB and alpha retained

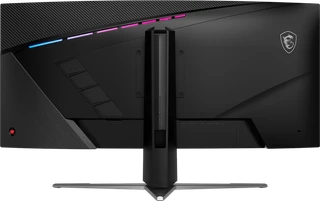

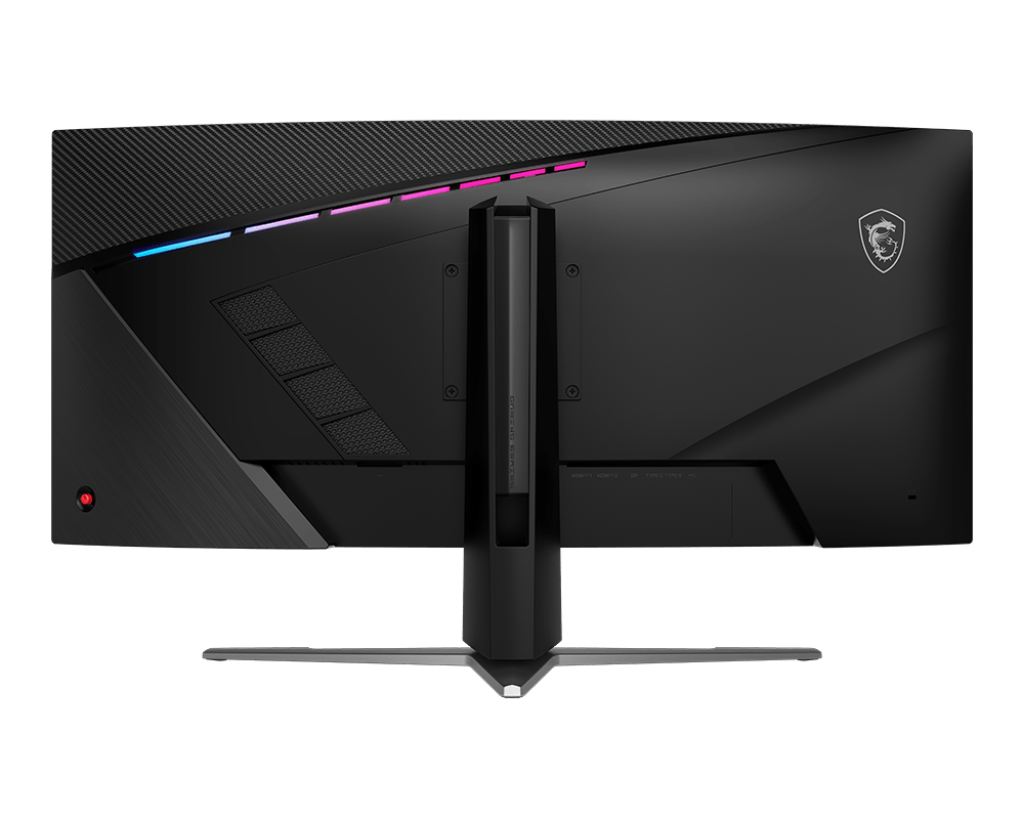

- MSI MPG 346CQRF X24 — Rear view with native RGB lighting: MSI MPG 346CQRF X24 UK store exact-model gallery, best published encoding; original hardware RGB and alpha retained

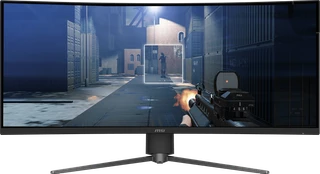

- MSI MPG 346CQRF X24 — Front view showing photographed game screen and native aiming overlay: MSI MPG 346CQRF X24 exact global product-page native-alpha photograph; original hardware RGB and alpha retained

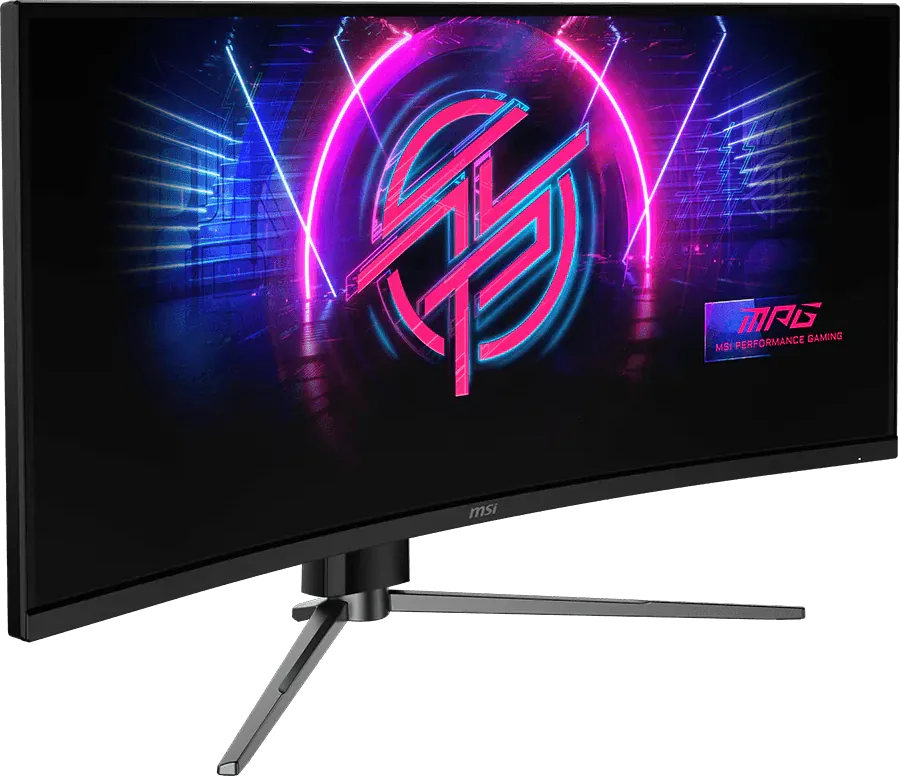

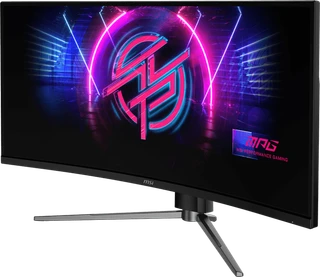

- MSI MPG 346CQRF X24 — Front angled view from lower camera position: MSI MPG 346CQRF X24 exact global product-page native-alpha photograph; original hardware RGB and alpha retained
