Photo 1 of 3
OnePlus OnePlus Ace 2 Pro · Photo source
OnePlus · Ace
OnePlus Ace 2 Pro
A China-market phone with Snapdragon 8 Gen 2, a curved 120 Hz OLED display, a 5,000 mAh battery and 150 W SUPERVOOC charging. The retired maker specification page leaves some details supported by contemporary tests and databases.
- Screen
- 6.74″
- Display
- OLED, 120 Hz
- Chip
- Qualcomm Snapdragon 8 Gen 2
- Memory
- 12 GB – 24 GB
- Storage
- 256 GB – 1 TB
- Main camera
- 50 MP
- Zoom
- –
- Battery
- 5,000 mAh
- Weight
- 210 g
What reviewers say
AnTuTu and ZOL praised the display, sustained gaming performance, rapid charging and everyday main-camera photographs. Both tested 24 GB/1 TB phones. AnTuTu found frame interpolation and sharpening could cause visible artefacts despite smoother gaming, so enhanced frame rates do not imply cleaner native rendering.
From antutu.com and mobile.zol.com.cn
Product links
Specifications
Report a wrong or missing specDisplay
- Screen size
- 6.74″
- Resolution
- 2772 × 1240
- Sharpness
- 451 pixels per inch
- Panel
- OLED
- Refresh rate
- 120 Hz
- Display type
- Curved BOE Q9+ LTPS AMOLED, not LTPO (AnTuTu); 2772 × 1240 pixels from ZOL and Notebookcheck after retirement of maker sheet
- Brightness detail
- ZOL reports 550 nits typical default, 1,200 nits triggered full-screen maximum and 1,600 nits local peak; distinct conditions, not an independent measurement
- Display features
- Pixelworks confirms 2,160 Hz PWM and calibration covering P3/sRGB. Its X7 supports frame interpolation and super resolution in compatible games; interpolated frames are not native rendering
Performance
- Chip
- Qualcomm Snapdragon 8 Gen 2
- Memory
- 12 GB – 24 GB
- Storage
- 256 GB, 512 GB, 1 TB
- CPU
- Snapdragon 8 Gen 2 confirmed by Pixelworks; Notebookcheck lists 3.2 GHz Cortex-X3, two 2.8 GHz A715, two 2.8 GHz A710 and three 2.0 GHz A510 cores
- GPU
- Adreno 740 (Notebookcheck); separate Pixelworks X7 visual processor confirmed by its manufacturer
- Memory
- 12/256, 16/512 and 24/1024 GB configurations (GSMArena); LPDDR5X and UFS 4.0 confirmed by Pixelworks. Its press release incorrectly prints 1 GB storage; that typo is not copied
- Storage type
- 256 GB, 512 GB or 1 TB UFS 4.0 (GSMArena)
Cameras
- Main camera
- 50 MP
- Ultra wide camera
- 8 MP
- Telephoto camera
- None
- Optical zoom
- None
- Front camera
- 16 MP
- Main camera
- 50 MP Sony IMX890 with OIS (AnTuTu and ZOL original tests); f/1.8 and 24 mm equivalent (Notebookcheck)
- Ultra wide camera
- 8 MP, f/2.2, 16 mm equivalent (Notebookcheck)
- Front camera
- 16 MP, f/2.4 (Notebookcheck)
- Video recording
- ZOL lists rear 4K 30/60 fps and 1080p/720p 30/60 fps; slow motion 1080p 240 fps or 720p 240/480 fps
- Front video
- ZOL lists 1080p/720p 30 fps
- Camera features
- Additional 2 MP f/2.4 macro camera (Notebookcheck); no optical telephoto listed in contemporary exact-model evidence
Battery and charging
- Battery
- 5,000 mAh
- Wired charging
- Up to 150 W
- Wireless charging
- None
- Battery life detail
- 5,000 mAh reported and tested by AnTuTu/ZOL; original maker cell topology, rated capacity and energy remain unresolved
- Wired charging
- 150 W SUPERVOOC with supplied charger (Pixelworks/AnTuTu). Tests found approximately 16-minute charging under their own conditions; not a guaranteed runtime or universal charging result
Design
- Type
- Standard
- Weight
- 210 g
- Thickness
- 8.98 mm
- Height × width
- 163.12 × 74.2 mm
- Size unfolded
- ZOL reports 163.12 × 74.2 × 8.98 mm and 210 g, used above. Notebookcheck rounds height to 163.1 mm and thickness to 9 mm; retired maker table cannot resolve original precision
- Materials
- Glass rear with etched camera surround (AnTuTu); exterior frame material unresolved against surviving maker evidence
- Colours
- 钛空灰 (Titanium Grey) and 极光绿 (Aurora Green), translated Chinese finish names (ZOL)
- Buttons
- Three-position alert slider (AnTuTu)
- Biometrics
- Optical under-display fingerprint sensor (AnTuTu)
Software
- Operating system
- Android
- Software at launch
- Android 13 (Notebookcheck). Chinese ColorOS used; exact launch point-version unresolved. Announced 16 August 2023 (Pixelworks); maker offered 19 August pop-up purchasing, while ZOL confirms general sale on 23 August. Month retained because actual earliest pop-up sale is unconfirmed
- In the box
- AnTuTu tested the supplied 150 W charger and USB-C charging cable. Cosmetic Paimon packaging/accessory edition is not a separate hardware generation. Product link is the surviving Chinese launch archive; support link is exact Chinese official battery-repair service
Connectivity
- Mobile network
- ZOL Chinese band table: GSM 850/900/1800/1900; CDMA BC0; WCDMA 1/4/5/8; LTE FDD 1/3/4/5/7/8/18/19/26/28A, TDD 34/38/39/40/41; 5G n1/n3/n5/n8/n28A/n41/n77/n78. LTE band 20 absent from that table
- SIM
- Dual nano-SIM (ZOL)
- Wi-Fi
- ZOL lists Wi-Fi 7/6/5 and 2.4/5 GHz; its table does not establish 6 GHz support
- Bluetooth
- Bluetooth 5.3 (Notebookcheck)
- NFC
- Supported (ZOL/Notebookcheck); regional payment services not assumed
Storage options
| Storage | Memory |
|---|---|
| 256 GB | 12 GB |
| 512 GB | 16 GB |
| 1 TB | 24 GB |
Pros and cons
Pros
- Optically stabilised 50 MP main camera
- 150 W wired charging
- Configurations up to 24 GB RAM and 1 TB storage
Cons
- No optical telephoto camera
- China-market cellular bands need checking before import
- Original maker specification sheet and exact manual unavailable
Closest rivals
Model | Screen | Display | Chip | Memory | Storage | Main camera | Zoom | Battery | Weight | Released |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.74″ | OLED, 120 Hz | Snapdragon 8+ Gen 1 | 8 GB – 18 GB | 128 GB – 512 GB | 50 MP | – | 5,000 mAh | 204 g | Feb 2023 | |
| 6.7″ | OLED, 120 Hz | Snapdragon 7 Gen 1 Accelerated Edition | 8 GB – 12 GB | 256 GB – 512 GB | 200 MP | – | 5,000 mAh | 183 g | Jun 2023 | |
| 6.78″ | OLED, 120 Hz | MediaTek Dimensity 8200 | 8 GB – 12 GB | 128 GB – 256 GB | 64 MP | – | 5,000 mAh | 193 g | Feb 2023 |
Sources
- oneplus.com/cn/ace-2-pro-launch
- oneplus.com/cn/ace-2-pro-popup
- pixelworks.gcs-web.com/node/16426/pdf
- detail.zol.com.cn/series/57/35579/param_10751719_0_1.html
- notebookcheck-cn.com/OnePlus-Ace-2-Pro.754385.0.html
- antutu.com/doc/130065.htm
- mobile.zol.com.cn/829/8292498.html
- mobile.zol.com.cn/829/8297261_all.html
- opposhop.cn/cn/web/products/29456.html
- gsmarena.com/oneplus_launches_ace_2_pro_with_150w_fast_charging_24_gb_ram-news-…
Photo: oneplus.com

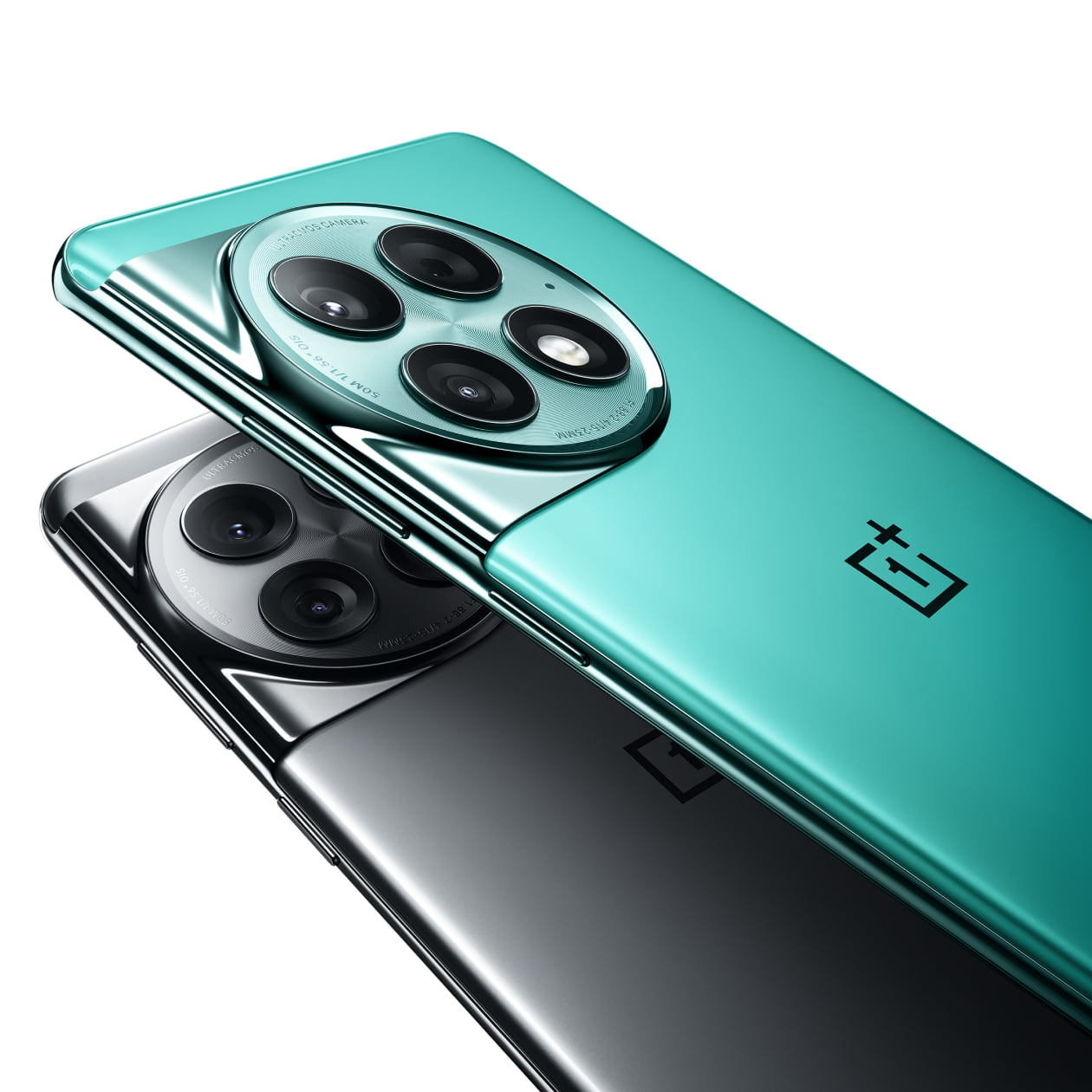

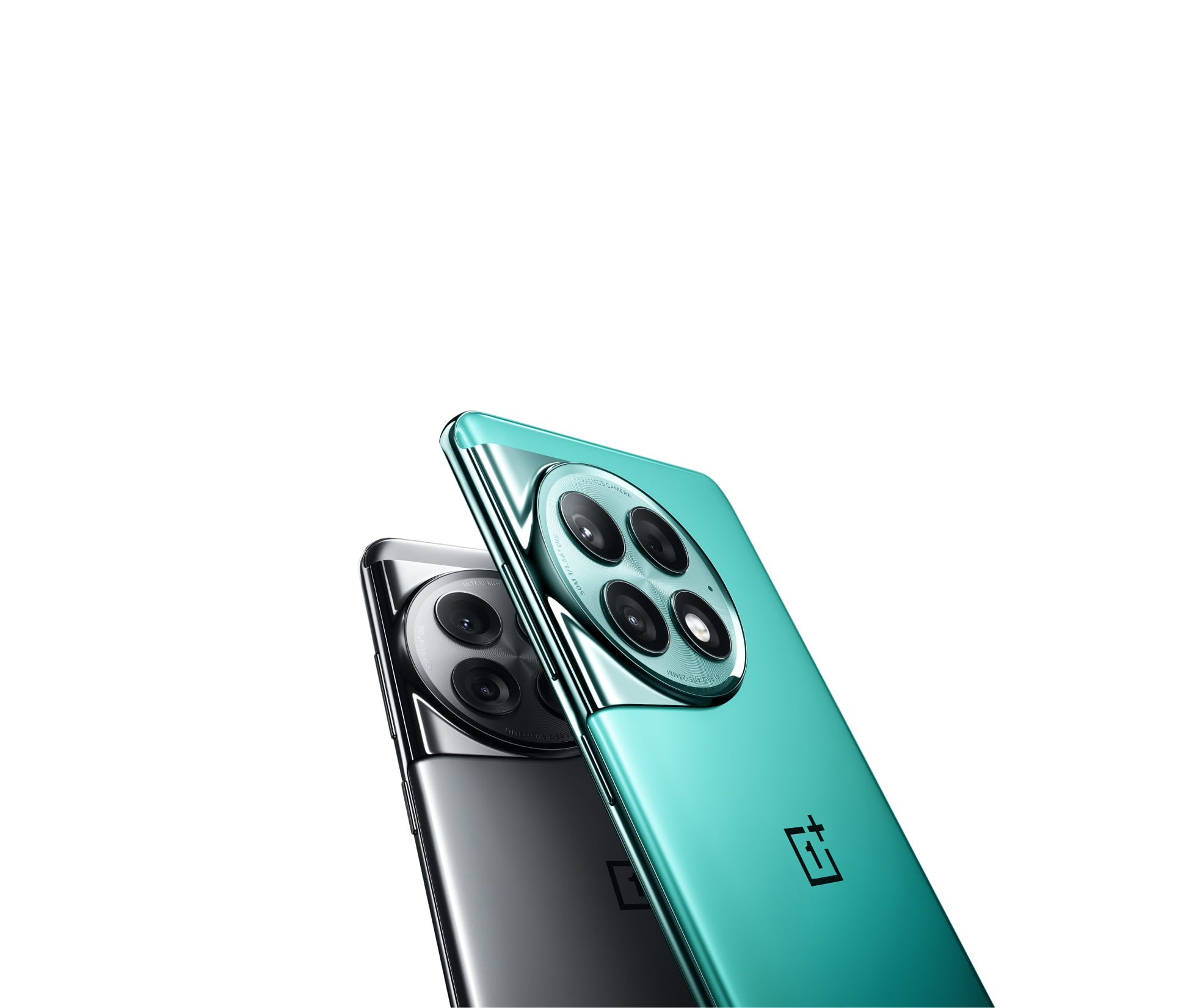

- Aurora Green and Titanium Grey angled rear launch render; lower phone edges cropped in the original: oasisstatics.oneplus.cn/content/dam/oasis/page/2023/cn/ace-2-pro-launch/mob-kv-…
- OnePlus Ace 2 Pro in Aurora Green and Titanium Grey, supplied close framing of the angled rear launch pair: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
