OnePlus Ace 2V
A Chinese Dimensity 9000 phone with a flat 6.74-inch OLED display, glass rear, 64 MP main camera without optical stabilisation, 5,000 mAh equivalent dual-cell battery and 80 W charging. Its camera and configurations differ from Nord 3.
- Screen
- 6.74″
- Display
- OLED, 120 Hz
- Chip
- MediaTek Dimensity 9000
- Memory
- 12 GB – 16 GB
- Storage
- 256 GB – 512 GB
- Main camera
- 64 MP
- Zoom
- –
- Battery
- 5,000 mAh
- Weight
- 191.5 g
What reviewers say
AnTuTu and ZOL liked the glass-body handling, narrow display borders, everyday performance and charging. Their launch tests differed: ZOL found gaming and photographs strong, while AnTuTu saw sustained Genshin slowdown and weak strong-light and zoom photography. AnTuTu tested 16/512 GB; workloads and launch firmware differed, and later updates were not assessed.
From antutu.com and mobile.zol.com.cn
Product links
Specifications
Report a wrong or missing specDisplay
- Screen size
- 6.74″
- Resolution
- 2772 × 1240
- Sharpness
- 451 pixels per inch
- Panel
- OLED
- Refresh rate
- 120 Hz
- Peak brightness
- 1,450 nits
- Display type
- Flat 2.5D AMOLED; adaptive 40/45/60/90/120 Hz, not an LTPO claim; 93.5% screen-to-body ratio
- Pixel density
- 450 ppi
- Brightness detail
- 500 nits default full-screen maximum; 1,100 nits triggered full-screen maximum; 1,450 nits local peak maximum
- Always-on display
- Supported
- Screen protection
- AGC DT-Star2 front glass
- Display features
- 1.07 billion colours; 100% DCI-P3 in vivid/cinema/brilliant modes, 100% sRGB in natural mode; 1,440 Hz PWM. HDR video highlight and colour enhancement; comfort claims do not establish clinical benefit
Performance
- Chip
- MediaTek Dimensity 9000
- Memory
- 12 GB – 16 GB
- Storage
- 256 GB, 512 GB
- CPU
- TSMC 4 nm; eight cores, maximum 3.05 GHz
- GPU
- Arm Mali G710 MC10 at 848 MHz
- Memory
- 12 or 16 GB LPDDR5X; exact combinations 12/256, 16/256 and 16/512 GB
- Storage type
- 256 or 512 GB UFS 3.1
- Cooling
- 4,129 mm² vapour chamber; separate graphite heat spreaders, not an added single VC area
Cameras
- Main camera
- 64 MP
- Ultra wide camera
- 8 MP
- Telephoto camera
- None
- Optical zoom
- None
- Front camera
- 16 MP
- Main camera
- 64 MP, f/1.7, 81° field of view, six-element lens, 25 mm equivalent / 4.73 mm physical focal length; AF/PDAF and closed-loop focus motor, explicitly no OIS
- Ultra wide camera
- 8 MP, f/2.2, 112° field of view, five-element lens, fixed focus, 16 mm equivalent / 1.68 mm physical focal length
- Front camera
- 16 MP Samsung S5K3P9SP04, f/2.4
- Zoom
- No optical zoom; up to 20× digital zoom
- Video recording
- 4K/1080p/720p 30/60 fps; electronic video stabilisation at 1080p 60 fps, no OIS. Slow motion 1080p 120 fps or 720p 240 fps; cinema/time-lapse/multi-view 1080p 30 fps
- Front video
- 1080p/720p 30 fps; default 1080p 30 with beauty mode enabled
- Camera features
- Additional 2 MP macro, f/2.4, 89° field of view, three elements, fixed focus, 21 mm equivalent / 1.77 mm physical focal length; maker overview specifies 4 cm macro. Single rear LED beside main camera; lower adjacent unit is colour-temperature sensor. Flicker sensor; night/portrait/professional/cinema/panorama/multi-view/text and AI ID-photo modes
Battery and charging
- Battery
- 5,000 mAh
- Wired charging
- Up to 80 W
- Wireless charging
- None
- Battery life detail
- Series dual cells: typical 2,500 mAh at 7.74 V, maker-equivalent 5,000 mAh at 3.87 V / 19.35 Wh; rated 2,440 mAh at 7.74 V, equivalent 4,880 mAh / 18.88 Wh. Maker >80% retention after 1,600 full cycles assumes one full cycle daily for about four years; laboratory claim, not warranty
- Wired charging
- 80 W SUPERVOOC with supplied adapter; maker about 32 minutes from 1% to full at 25±1°C, 25–75% humidity, 86–106 kPa, flight mode, background apps closed and screen off. Low-temperature charging claim is laboratory-qualified
Design
- Type
- Standard
- Weight
- 191.5 g
- Thickness
- 8.15 mm
- Height × width
- 162.6 × 75.1 mm
- Materials
- Gorilla Glass 5 rear; injection-moulded frame (maker wording 注塑合金), not a claimed metal frame. No plastic display bracket
- Colours
- 黑岩 (black) and 青釉 (green glaze); English descriptions translate Chinese names. Bare-phone mass excludes preapplied film
- Buttons
- Three-position alert slider and customised X-axis vibration motor
- Biometrics
- Optical in-display fingerprint and face unlock
- Sensors
- Ambient light, proximity, electronic compass, accelerometer, gyroscope and rear colour-temperature sensor; infrared remote
- Speakers
- Stereo dual speakers
- Microphones
- Two microphones
Software
- Operating system
- Android
- Software at launch
- Chinese ColorOS 13.0 based on Android 13; announced 7 March 2023, actual first general sale 13 March at 10:00 confirmed by contemporary report
- Software updates
- Maker 48-month smoothness certification is not a published software update term
- AI features
- Gaming cloud acceleration free for two years from entitlement redemption; continued use requires payment. Supported games and operator/network conditions apply
- In the box
- Phone, 80 W SUPERVOOC adapter, USB-A to USB-C cable, SIM ejector, protective case, preapplied film, quick-start guide, welcome letter, product/warranty information and stickers
Connectivity
- Mobile network
- GSM 850/900/1800/1900; CDMA BC0; WCDMA 1/4/5/8; LTE TDD 34/38/39/40/41, FDD 1/3/4/5/8/28A; 5G n1/n3/n8/n28A/n40/n41/n77/n78. LTE 4×4 MIMO on 1/3/38/40/41, 2×2 elsewhere. Chinese list omits LTE band 20
- SIM
- Dual nano-SIM, dual 5G; dual-active support in selected scenarios, dependent on operator/network. Dual China Telecom cards require VoLTE on the non-data card
- Wi-Fi
- Wi-Fi 6/5 and a/b/g/n; 2.4/5.1/5.8 GHz, 5 GHz 160 MHz, 2×2 MIMO, WLAN display/tethering
- Bluetooth
- Bluetooth 5.3 LE; SBC, AAC, aptX, aptX HD, LDAC and LHDC. LHDC requires OPPO Enco X or OnePlus Buds Pro family headphones
- NFC
- 13.56 MHz reader/writer, SIM slot 1, HCE and eSE; Chinese payment/transit services vary
- USB
- USB-C, USB 2.0; USB-C headphones supported
- Positioning
- BeiDou, GPS, GLONASS, Galileo and QZSS; assisted positioning and WLAN/cellular location
Storage options
| Storage | Memory |
|---|---|
| 256 GB | 12 GB |
| 256 GB | 16 GB |
| 512 GB | 16 GB |
Pros and cons
Pros
- Glass rear and three-position alert slider
- 80 W charging with supplied adapter
- Stereo speakers, Wi-Fi 6 and infrared
Cons
- No optical camera stabilisation or telephoto
- USB 2.0
- Chinese cellular bands omit LTE band 20
Closest rivals
Model | Screen | Display | Chip | Memory | Storage | Main camera | Zoom | Battery | Weight | Released |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.7″ | OLED, 120 Hz | Snapdragon 7 Gen 1 Accelerated Edition | 8 GB – 12 GB | 256 GB – 512 GB | 200 MP | – | 5,000 mAh | 183 g | Jun 2023 | |
| 6.78″ | OLED, 120 Hz | MediaTek Dimensity 8200 | 8 GB – 12 GB | 128 GB – 256 GB | 64 MP | – | 5,000 mAh | 193 g | Feb 2023 | |
| 6.78″ | OLED, 120 Hz | Qualcomm Snapdragon 8+ Gen 1 | 8 GB – 12 GB | 128 GB – 256 GB | 50 MP | – | 5,000 mAh | 199.5 g | Jul 2023 |
Sources
Photo: oasisstatics.oneplus.cn

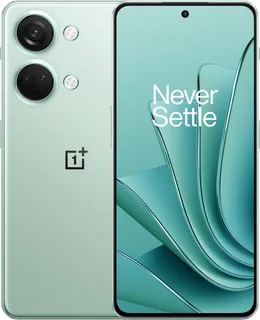

- Green finish upright front and rear: oasisstatics.oneplus.cn/content/dam/oasis/page/2023/cn/ace-2v/green-ace-2v.png

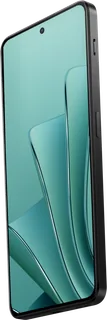

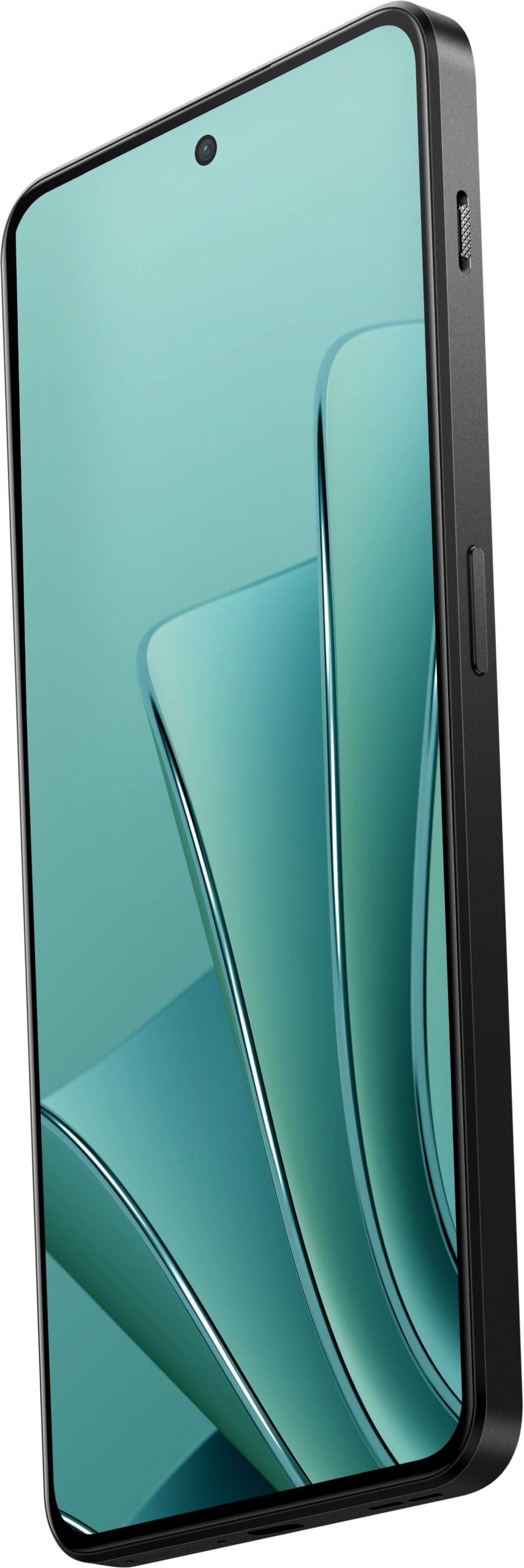

- Phone front viewed at an angle: oasisstatics.oneplus.cn/content/dam/oasis/product-asset-library/vitamin/images-…

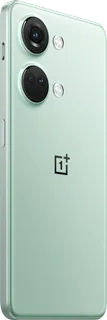

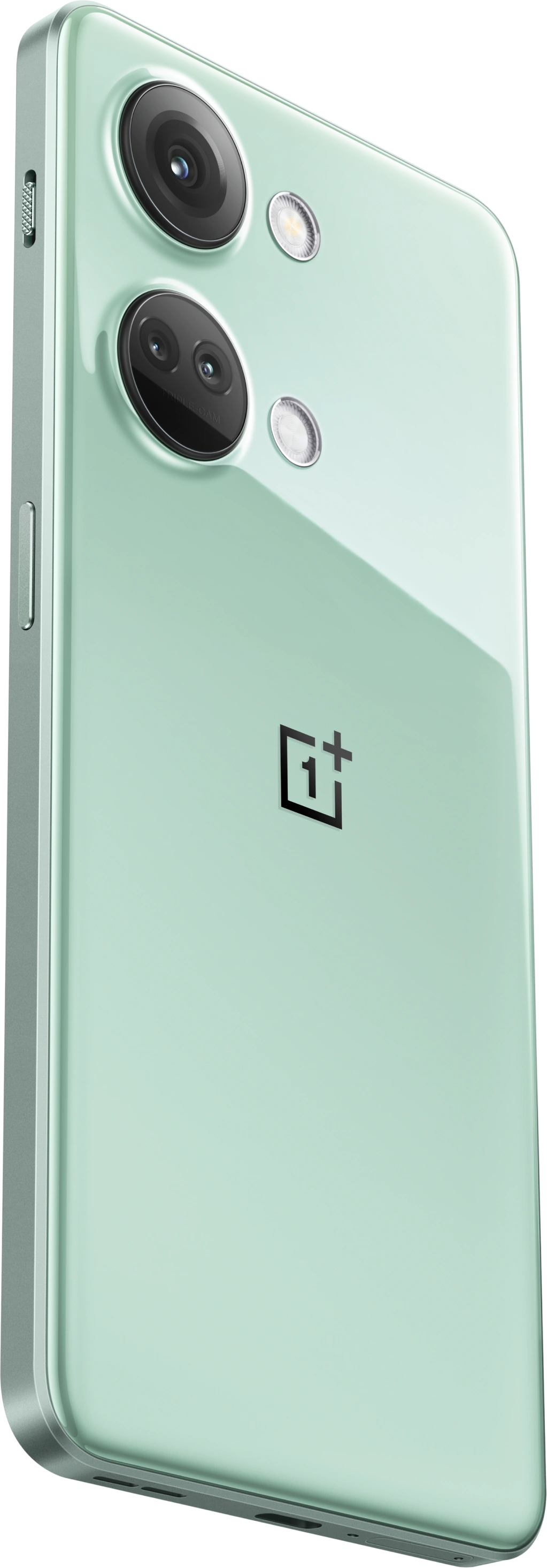

- Green rear viewed at an angle: oasisstatics.oneplus.cn/content/dam/oasis/product-asset-library/vitamin/images-…

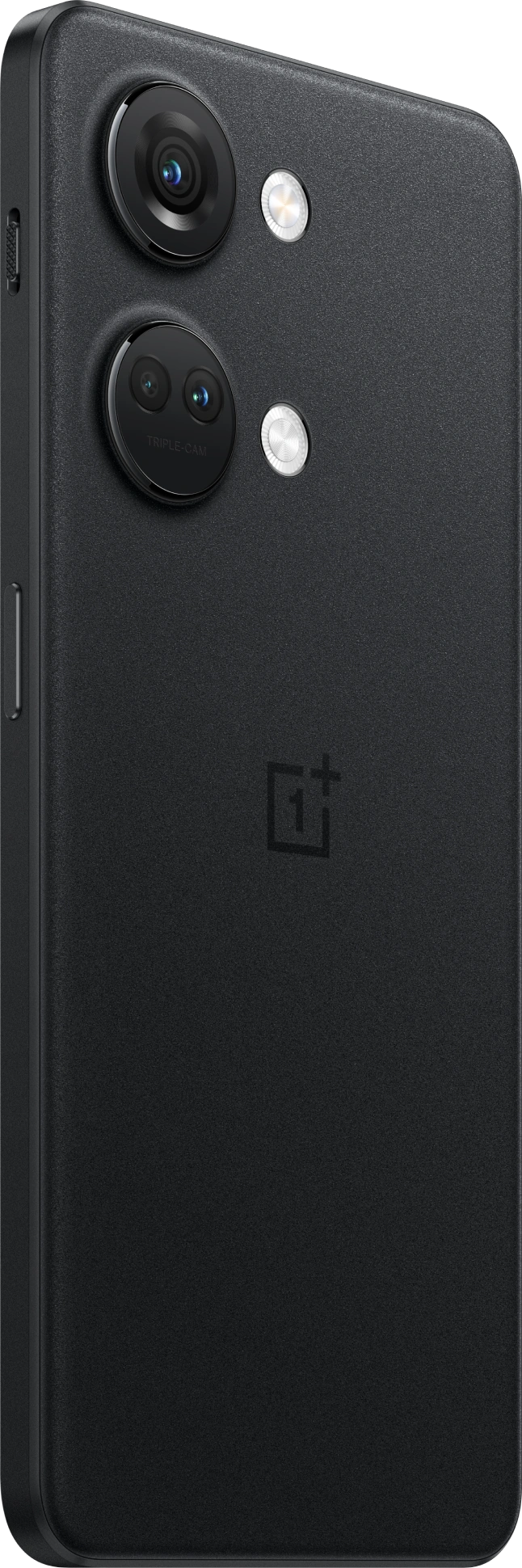

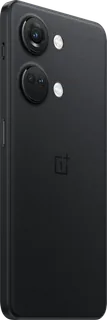

- Black rear three-quarter view: oasisstatics.oneplus.cn/content/dam/oasis/product-asset-library/vitamin/images-…

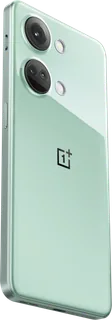

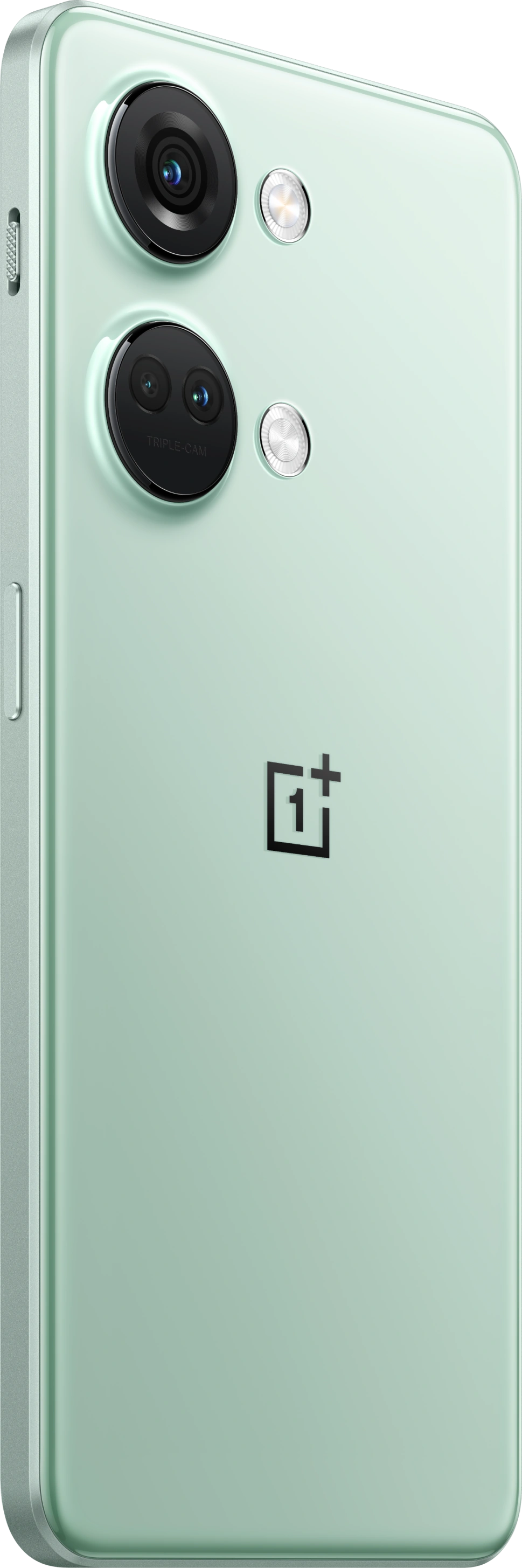

- Green rear three-quarter view: oasisstatics.oneplus.cn/content/dam/oasis/product-asset-library/vitamin/images-…
