Photo 1 of 16

OnePlus OnePlus Ace 3 Pro · Photo source

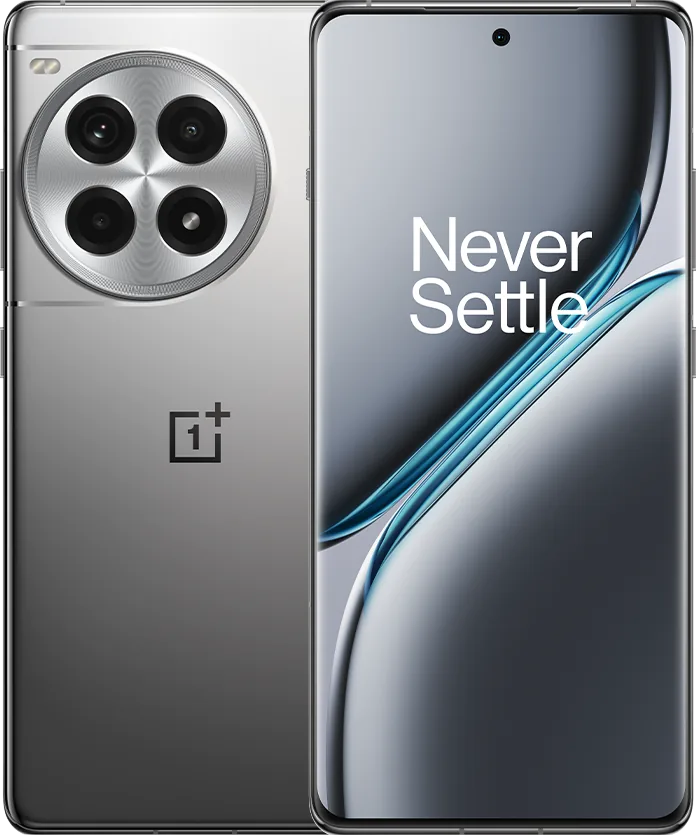

OnePlus OnePlus Ace 3 Pro
Photo 1 of 16

OnePlus OnePlus Ace 3 Pro · Photo source

OnePlus · Ace

OnePlus Ace 3 Pro

Released July 2024

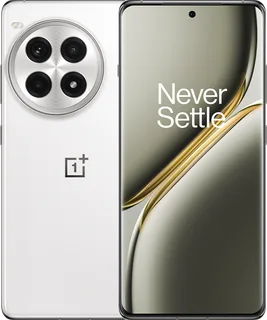

A Chinese phone with Snapdragon 8 Gen 3, a curved 6.78-inch LTPO OLED display, a 6,100 mAh equivalent dual-cell battery and 100 W charging. Silver glass, green leather and white ceramic finishes differ in weight and thickness.

Screen
6.78″
Display
LTPO OLED, 120 Hz
Chip
Qualcomm Snapdragon 8 Gen 3
Memory
12 GB – 24 GB
Storage
256 GB – 1 TB
Main camera
50 MP
Zoom
–
Battery
6,100 mAh
Weight
212 g

What reviewers say

AnTuTu and ZOL praised gaming performance, endurance, fast charging and the display, with good everyday main-camera photographs. AnTuTu criticised the weak macro camera and felt noticeable gaming heat; ZOL found the frame comfortable despite high temperatures. Battery workloads differed. Tests included white ceramic, with ZOL also inspecting green leather.

From antutu.com and mobile.zol.com.cn

Specifications

Report a wrong or missing spec

Display

Screen size
6.78″
Resolution
2780 × 1264
Sharpness
450 pixels per inch
Panel
LTPO OLED
Refresh rate
120 Hz
Peak brightness
4,500 nits
Display type
Curved AMOLED; 8T LTPO adaptive 1–120 Hz, 94.2% screen-to-body ratio
Pixel density
450 ppi
Brightness detail
1,600 nits triggered full-screen maximum; 4,500 nits local peak, separate test conditions
Always-on display
Supported
Screen protection
Corning Gorilla Glass Victus 2
Display features
1.07 billion colours; 100% DCI-P3 in vivid/cinema/brilliant modes and 100% sRGB in natural mode. 3Pulse/1Pulse DC-like dimming and 2,160 Hz PWM. Dolby Vision, video HDR highlight and rain-touch support; maker comfort claims do not establish clinical benefit

Performance

Chip
Qualcomm Snapdragon 8 Gen 3
Memory
12 GB – 24 GB
Storage
256 GB, 512 GB, 1 TB
CPU
TSMC 4 nm; eight cores, maximum 3.3 GHz
GPU
Adreno 750; separate maker gaming display chip assists rendering in supported games
Memory
12, 16 or 24 GB LPDDR5X; published combinations 12/256, 16/256, 16/512 and 24/1024 GB. White ceramic Collector’s Edition has 16/512 and 24/1024 GB; no unlisted RAM/storage combinations inferred
Storage type
256 GB, 512 GB or 1 TB UFS 4.0
Cooling
Second-generation cooling system with 9,126 mm² vapour chamber; graphite is a separate heat-spreading component

Cameras

Main camera
50 MP
Ultra wide camera
8 MP
Telephoto camera
None
Optical zoom
None
Front camera
16 MP

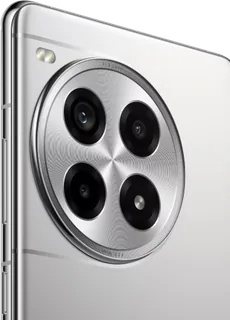

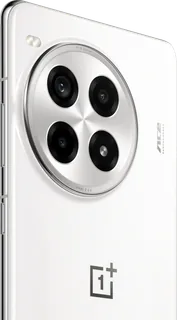

Main camera
50 MP, f/1.8, 24 mm equivalent, six-element lens, autofocus/PDAF and three-axis OIS; overview names Sony IMX890
Ultra wide camera
8 MP, f/2.2, 16 mm equivalent, five-element lens; no OIS or PDAF
Front camera
16 MP, f/2.4
Zoom
No optical zoom; up to 20× digital zoom
Video recording
4K 30/60 fps, 1080p 30/60 fps, 720p 30 fps; super stabilisation 1080p 60 fps. Slow motion 1080p 240 fps or 720p 240/480 fps; cinema 4K 30 and multi-view 1080p 30
Front video
1080p/720p 30 fps; default 1080p 30 with beauty mode enabled
Camera features
Additional 2 MP macro, f/2.4, 22 mm equivalent, three elements. Flicker sensor and dual rear LEDs; HEIF/JPG/DNG rear photographs, HEIF/JPG front. Live photos, night, professional, long exposure, multi-view and AI editing

Battery and charging

Battery
6,100 mAh
Wired charging
Up to 100 W
Wireless charging
None
Battery life detail
Two cells in series: typical 3,050 mAh at 7.78 V, equivalent 6,100 mAh at 3.89 V / 23.73 Wh; rated 2,970 mAh at 7.78 V, equivalent 5,940 mAh / 23.11 Wh. Silicon-carbon anode. Maker four-year >80% retention assumes one full cycle every 1.25 days; laboratory claim, not warranty
Wired charging
100 W SUPERVOOC, supplied 100 W adapter and SUPERVOOC S power-management chip. Maker 1% to full in about 36 minutes at 25±1°C battery/environment, screen off, flight mode and background apps closed

Design

Type
Standard
Weight
212 g
Thickness
8.85 mm
Height × width
163.3 × 75.27 mm
Water and dust resistance
IP65
Materials

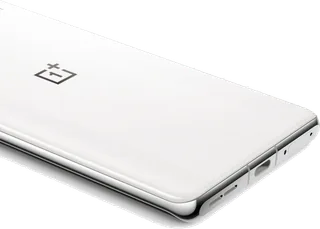

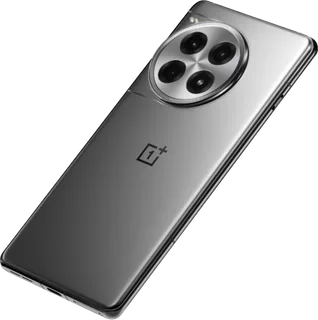

Metal frame; silver glass, green leather or white ceramic rear
Colours

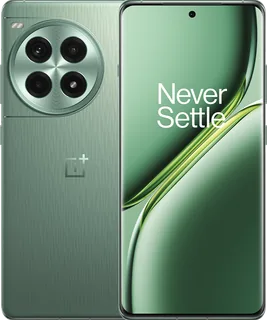

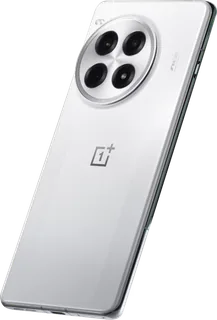

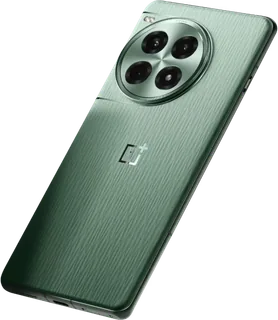

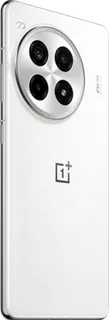

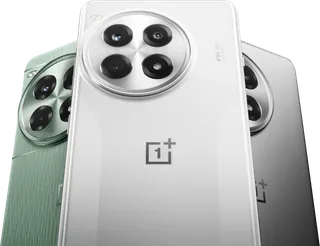

钛空镜银 (silver glass): approximately 212 g / 8.85 mm; 绿野素青 (green leather): 207 g / 8.95 mm; 超跑瓷典藏版 (white ceramic Collector’s Edition): 225 g / 8.69 mm. Headline dimensions/mass describe glass finish; all 163.30 × 75.27 mm. English finish descriptions translate Chinese names
Buttons
Three-position alert slider; X-axis linear vibration motor
Water resistance detail
IP65 under GB/T 4208-2017 / IEC 60529 controlled tests: 6.3 mm nozzle, 2.5–3 m distance, 12.5 L/min for at least three minutes, ≤5°C water/device difference. No immersion rating; wear reduces protection, do not charge wet, liquid damage excluded
Biometrics
Maker overview specifies thin optical in-display fingerprint recognition
Sensors
Geomagnetic, under-screen proximity/light, accelerometer, gravity and gyroscope; infrared remote and step counting
Speakers
Stereo dual speakers and spatial audio
Microphones
Two microphones

Software

Operating system
Android
Software at launch
Chinese ColorOS 14.1 based on Android 14; announced 27 June 2024 and first sale 3 July 2024
Software updates
Launch coverage (Caijing, mirrored by Sina) reports three Android major upgrades over four years of maintenance. Separately, maker 48-month laboratory smoothness testing is not an update guarantee
AI features

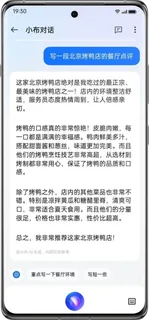

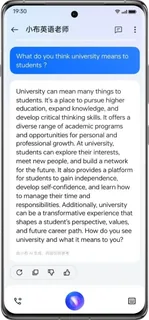

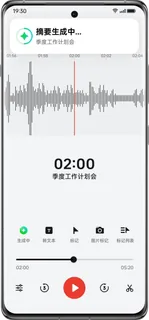

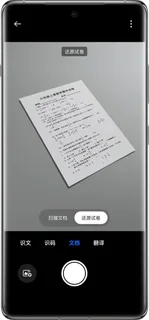

Chinese assistant, photo erasure/cutouts, travel planning and document tools. Game frame interpolation and super resolution require supported titles/settings; some 120 fps modes interpolate a 60 fps input. Maker two-year gaming cloud acceleration begins on entitlement redemption; further use requires payment
In the box
Phone, 100 W SUPERVOOC adapter, USB-A to USB-C cable, quick-start guide, protective case, SIM ejector and brand stickers

Connectivity

Mobile network
CDMA BC0 1X; GSM 850/900/1800; WCDMA 1/4/5/8; LTE FDD 1/3/4/5/8/18/19/26/28A/66 and TDD 34/38/39/40/41; 5G n1/n3/n5/n8/n28A/n38/n40/n41/n77/n78. LTE 4×4 MIMO on 1/3/38/39/41, 2×2 elsewhere; HPUE/HO RxD. Exact Chinese list omits LTE band 20
SIM
Dual nano-SIM, SA/NSA 5G and dual standby/dual active subject to Chinese operator and VoLTE conditions
Wi-Fi
Wi-Fi 7/6/5 and a/b/g/n; 2.4/5 GHz, not a claimed 6 GHz band. Concurrent 2.4 GHz 2×2 and 5 GHz 2×2, 5 GHz 160 MHz, WLAN display/tethering and MU-MIMO
Bluetooth
Bluetooth 5.4, BR/EDR/BLE, low/high power; SBC, AAC, aptX, aptX HD, LDAC and LHDC. Maker qualifies LHDC with OPPO Enco X and OnePlus Buds Pro families
NFC
13.56 MHz reader/writer, HCE, eSE and NFC-SIM in slot 1; Chinese transit, payments and other services vary
USB
USB-C, USB 2.0; USB-C headphones supported
Positioning
BeiDou B1I/B1C/B2a, GPS L1/L5, GLONASS G1, Galileo E1/E5a, QZSS L1/L5; assisted GNSS and WLAN/cellular positioning

Storage options

StorageMemory
256 GB12 GB
256 GB16 GB
512 GB16 GB
1 TB24 GB

Pros and cons

Pros

  • LTPO display and optically stabilised main camera
  • Large battery with 100 W charging
  • Stereo speakers, Wi-Fi 7 and infrared

Cons

  • USB 2.0
  • No optical telephoto
  • Chinese cellular bands omit LTE band 20

Closest rivals

Model
ScreenDisplayChipMemoryStorageMain cameraZoomBatteryWeightReleased
XiaomiPOCO F6 Pro
6.67″OLED, 120 HzQualcomm Snapdragon 8 Gen 212 GB – 16 GB256 GB – 1 TB50 MP–5,000 mAh209 gMay 2024
HonorX9c
6.78″OLED, 120 HzQualcomm Snapdragon 6 Gen 18 GB – 12 GB256 GB – 512 GB108 MP–6,600 mAh189 gNov 2024
iQOONeo9 Pro
6.78″LTPO OLED, 144 HzQualcomm Snapdragon 8 Gen 28 GB – 12 GB128 GB – 256 GB50 MP–5,160 mAh190 gFeb 2024
