OnePlus Ace 3V
A Chinese phone with Snapdragon 7+ Gen 3, a flat 6.74-inch OLED display, glass rear, 5,500 mAh equivalent dual-cell battery and 100 W charging. Its body, cameras and Chinese configurations differ from Nord 4.
- Screen
- 6.74″
- Display
- OLED, 120 Hz
- Chip
- Qualcomm Snapdragon 7+ Gen 3
- Memory
- 12 GB – 16 GB
- Storage
- 256 GB – 512 GB
- Main camera
- 50 MP
- Zoom
- –
- Battery
- 5,500 mAh
- Weight
- 200 g
What reviewers say
AnTuTu and ZOL liked endurance, fast charging, the display and useful Chinese AI tools, finding the main camera adequate for daily photographs. Their launch gaming tests differed: ZOL found Genshin smooth, while AnTuTu encountered heat and a 45 fps limit. These March 2024 tests used different routes and workloads; later firmware was not assessed.
From antutu.com and mobile.zol.com.cn
Product links
Specifications
Report a wrong or missing specDisplay
- Screen size
- 6.74″
- Resolution
- 2772 × 1240
- Sharpness
- 451 pixels per inch
- Panel
- OLED
- Refresh rate
- 120 Hz
- Peak brightness
- 2,150 nits
- Display type
- Flat 2.5D AMOLED, selectable 60/90/120 Hz; 93.5% screen-to-body ratio
- Pixel density
- 450 ppi
- Brightness detail
- 1,100 nits triggered full-screen typical maximum; 2,150 nits local peak typical. Maker allows ±5% variation
- Display features
- 1.07 billion colours; high-brightness 1Pulse DC-like dimming and low-brightness PWM up to 2,160 Hz, depending on refresh setting. Rain-touch support; maker comfort claims do not establish clinical benefit
Performance
- Chip
- Qualcomm Snapdragon 7+ Gen 3
- Memory
- 12 GB – 16 GB
- Storage
- 256 GB, 512 GB
- CPU
- TSMC 4 nm; eight cores, maximum 2.8 GHz
- GPU
- Adreno 732
- Memory
- 12 or 16 GB LPDDR5X; exact combinations 12/256, 12/512 and 16/512 GB
- Storage type
- 256 or 512 GB UFS 4.0
- Cooling
- 9,140 mm² vapour chamber; graphite and gel are separate heat-spreading components
Cameras
- Main camera
- 50 MP
- Ultra wide camera
- 8 MP
- Telephoto camera
- None
- Optical zoom
- None
- Front camera
- 16 MP
- Main camera
- Sony IMX882, 50 MP, f/1.8, 79° field of view, five-element lens, autofocus and OIS; exact maker sensor designation
- Ultra wide camera
- 8 MP, f/2.2, 112° field of view, five-element lens
- Front camera
- 16 MP, f/2.4, 82° field of view, five-element lens
- Zoom
- No optical zoom; up to 20× digital zoom
- Video recording
- 4K 30/60 fps; 1080p/720p 30/60 fps. EIS/OIS supported at 4K 60 fps. Slow motion 1080p 120 fps or 720p 240 fps; cinema/multi-view 1080p 30 fps; time-lapse 1080p/4K 30 fps
- Front video
- 1080p/720p 30 fps; default beauty mode enabled
- Camera features
- Night, professional, portrait, long exposure, text and AI editing modes; no separate macro camera listed
Battery and charging
- Battery
- 5,500 mAh
- Wired charging
- Up to 100 W
- Wireless charging
- None
- Battery life detail
- Two cells in series: typical 2,750 mAh at 7.82 V, equivalent 5,500 mAh at 3.91 V; rated 2,680 mAh at 7.82 V, equivalent 5,360 mAh. Not a single 5,500 mAh cell
- Wired charging
- 100 W long-life SUPERVOOC with supplied adapter and SUPERVOOC S management. Current maker claim: 1% to full in about 26 minutes at 25±1°C battery/environment, flight mode, screen off and background apps closed
Design
- Type
- Standard
- Weight
- 200 g
- Thickness
- 8.47 mm
- Height × width
- 162.7 × 75.2 mm
- Water and dust resistance
- IP65
- Materials
- 2.8D curved glass rear; maker confirms absence of a plastic display bracket, which does not establish a metal body frame
- Colours
- 幻紫银 (purple/silver) and 钛空灰 (grey); English descriptions translate Chinese names. Published 200 g bare-phone mass excludes preapplied screen film
- Buttons
- Three-position alert slider and X-axis vibration motor
- Water resistance detail
- IP65 controlled tests: 6.3 mm nozzle, 2.5–3 m distance, 12.5 L/min for at least three minutes, ≤5°C water/device difference. No immersion rating; wear reduces protection, do not charge wet, liquid damage excluded
- Biometrics
- In-display fingerprint recognition; AnTuTu identifies short-focus optical hardware in its corrected launch review
- Sensors
- Compass, proximity, accelerometer, gravity, under-display ambient light, gyroscope, infrared remote and step counting
- Speakers
- Stereo speakers
- Microphones
- Two microphones
Software
- Operating system
- Android
- Software at launch
- Chinese ColorOS 14.0 based on Android 14. Announced 21 March 2024; limited JD early-stock ordering offered that night and formal general sale confirmed 25 March. Month precision reflects the earlier limited offer
- Software updates
- Maker 48-month smoothness testing is a laboratory claim, not a published software update term
- AI features
- Chinese AI photo erasure, assistant and document tools. English-teacher/interview tools had a dated 28 March 2024 app-update plan at launch; that plan alone does not confirm current service availability. Two-year gaming cloud acceleration begins on redemption; subsequent use requires payment
- In the box
- Phone, 100 W adapter, USB-A to USB-C cable, SIM ejector, case, preapplied screen film, quick-start material, stickers and welcome card
Connectivity
- Mobile network
- CDMA BC0; GSM 850/900/1800; WCDMA 1/4/5/8; LTE FDD 1/3/4/5/8/28A, TDD 34/38/39/40/41; 5G n1/n5/n8/n28A/n41/n77/n78. LTE 4×4 MIMO on 1/3/38/41, 2×2 elsewhere. Exact Chinese list omits LTE band 20
- SIM
- Dual nano-SIM; SA/NSA 5G and dual active subject to Chinese operator and VoLTE conditions
- Wi-Fi
- Wi-Fi 6/5 and a/b/g/n; 2.4/5.1/5.8 GHz, 5 GHz 160 MHz, 2×2 MIMO/MU-MIMO, WLAN display and tethering
- Bluetooth
- Bluetooth 5.4 LE; SBC, AAC, aptX, aptX HD, LDAC and LHDC. Maker qualifies LHDC with OPPO Enco X and OnePlus Buds Pro families
- NFC
- Reader/writer, SIM slot 1, HCE and eSE; Chinese transit/payment services vary
- USB
- USB-C; exact maker page does not publish the USB data generation
- Positioning
- GPS L1/L5, BeiDou B1I/B1C/B2a, GLONASS G1, Galileo E1/E5a and QZSS L1/L5
Storage options
| Storage | Memory |
|---|---|
| 256 GB | 12 GB |
| 512 GB | 12 GB |
| 512 GB | 16 GB |
Pros and cons
Pros
- Optically stabilised main camera
- Large battery and 100 W charging
- Stereo speakers, alert slider and infrared
Cons
- No optical telephoto
- IP65 does not cover immersion
- Chinese cellular bands omit LTE band 20
Closest rivals
Model | Screen | Display | Chip | Memory | Storage | Main camera | Zoom | Battery | Weight | Released |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.67″ | OLED, 120 Hz | Qualcomm Snapdragon 8 Gen 2 | 12 GB – 16 GB | 256 GB – 1 TB | 50 MP | – | 5,000 mAh | 209 g | May 2024 | |
| 6.78″ | OLED, 120 Hz | Qualcomm Snapdragon 6 Gen 1 | 8 GB – 12 GB | 256 GB – 512 GB | 108 MP | – | 6,600 mAh | 189 g | Nov 2024 | |
| 6.78″ | LTPO OLED, 144 Hz | Qualcomm Snapdragon 8 Gen 2 | 8 GB – 12 GB | 128 GB – 256 GB | 50 MP | – | 5,160 mAh | 190 g | Feb 2024 |
Sources
- oneplus.com/cn/ace-3v/specs
- oneplus.com/cn/ace-3v
- phone.cnmo.com/news/770602.html
- news.qudong.com/article/848427.shtml
- antutu.com/doc/131303.htm
Photo: oasisstatics.oneplus.cn

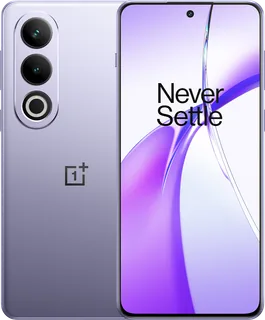

- Purple/silver finish upright front and rear: oasisstatics.oneplus.cn/content/dam/oasis/page/2024/cn/ace-3v/purple-3v-specs.p…

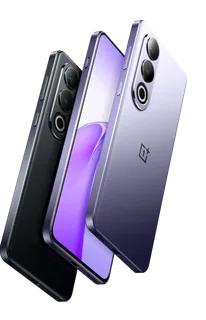

- OnePlus Ace 3V grouped front and angled rear views in purple and grey: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2152_14155-1.png.…
- Maker Chinese assistant call interface illustration: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2195_10474-1.png.…

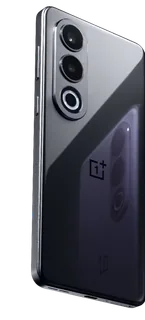

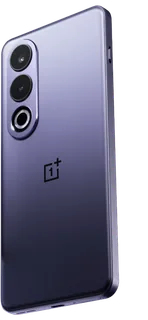

- Purple rear viewed at an angle: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2153_3264-1.png.a…
- Grey rear viewed at an angle: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2153_3265-1.png.a…

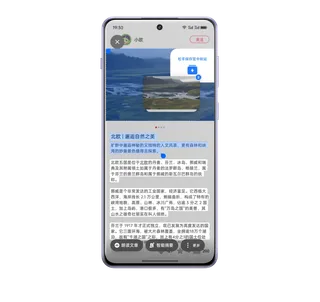

- OnePlus Ace 3V front showing the supplied Chinese clipboard interface: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2152_9185-1.png.a…

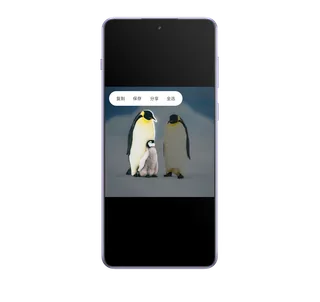

- OnePlus Ace 3V front showing the supplied photo selection interface: oneplus.com/content/dam/oasis/page/audi/cn/assets/images-pack-2152_9192-1.png.a…
- A person holding OnePlus Ace 3V in Magic Purple Silver, supplied close lifestyle framing: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

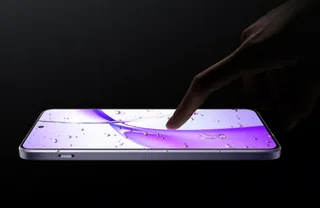

- A hand touching the physical display of OnePlus Ace 3V, supplied wide framing: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

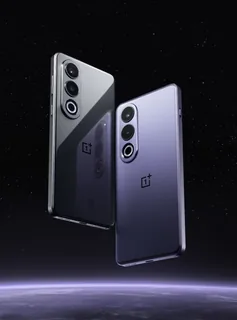

- OnePlus Ace 3V in Titanium Sky Grey and Magic Purple Silver, supplied rear pair on a dark purple background: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
- OnePlus Ace 3V in Titanium Sky Grey, supplied rear camera housing and upper body detail: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

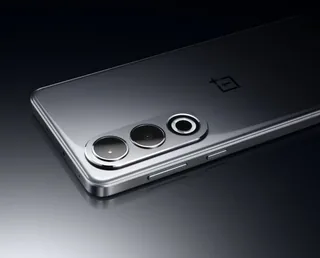

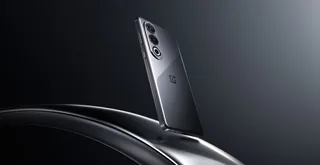

- OnePlus Ace 3V in Titanium Sky Grey, angled rear body in a dark studio composition: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

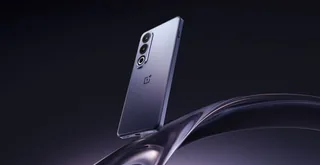

- OnePlus Ace 3V in Magic Purple Silver, angled rear body in a purple studio composition: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

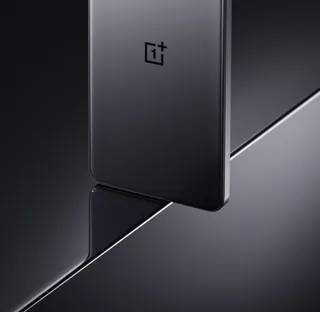

- OnePlus Ace 3V in Titanium Sky Grey, supplied lower rear body detail: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

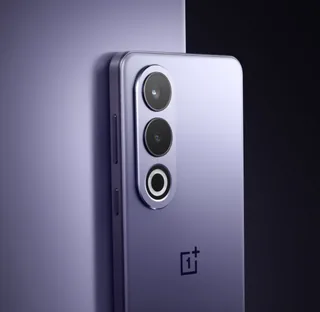

- OnePlus Ace 3V in Magic Purple Silver, supplied upper rear body and camera housing detail: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

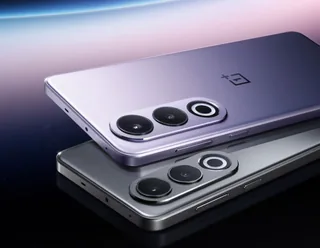

- OnePlus Ace 3V in Magic Purple Silver and Titanium Sky Grey, supplied stacked rear body composition: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

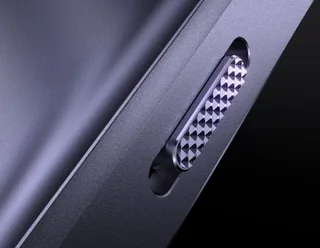

- OnePlus Ace 3V in Magic Purple Silver, supplied alert slider and side housing detail: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

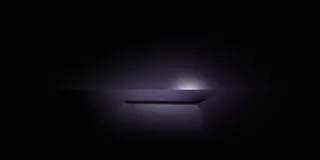

- OnePlus Ace 3V, supplied thin side profile in a dark purple studio composition: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
- OnePlus Ace 3V, supplied angled front body view on a white background: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
- A person holding OnePlus Ace 3V in Magic Purple Silver, supplied wider lifestyle framing: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

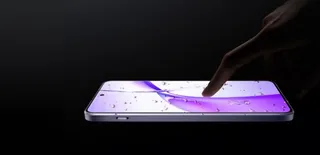

- A hand touching the physical display of OnePlus Ace 3V, supplied closer framing: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

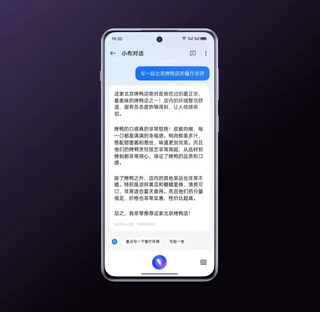

- OnePlus Ace 3V showing a Chinese-language AI chat on its physical display: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

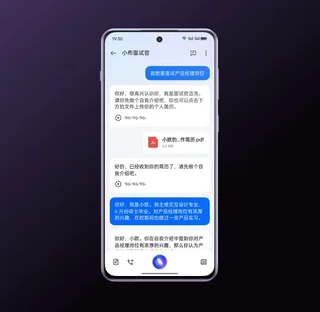

- OnePlus Ace 3V showing a document conversation on its physical display: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

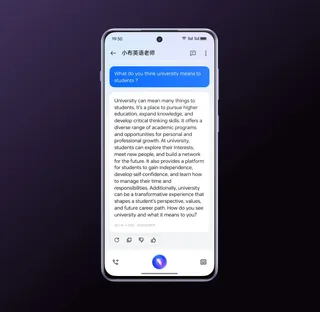

- OnePlus Ace 3V showing an English-language AI response on its physical display: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

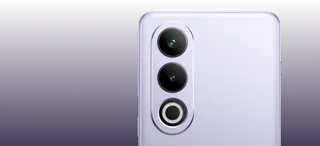

- OnePlus Ace 3V in Magic Purple Silver, supplied upper rear camera housing detail on a purple background: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
- Hands using OnePlus Ace 3V to play a driving game while seated: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
- A person using OnePlus Ace 3V in Titanium Sky Grey in a cafe: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

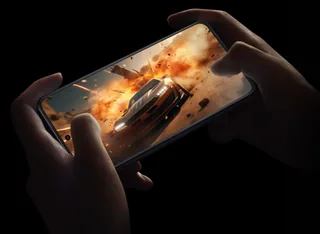

- Hands using OnePlus Ace 3V with a driving game on its physical display: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.

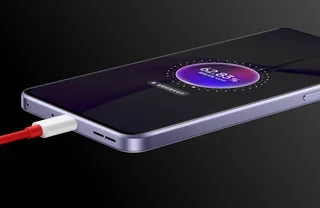

- OnePlus Ace 3V with a charging cable attached and charging interface on its physical display: Official OnePlus product photograph/render; complete supplied framing, background and native transparency preserved.
