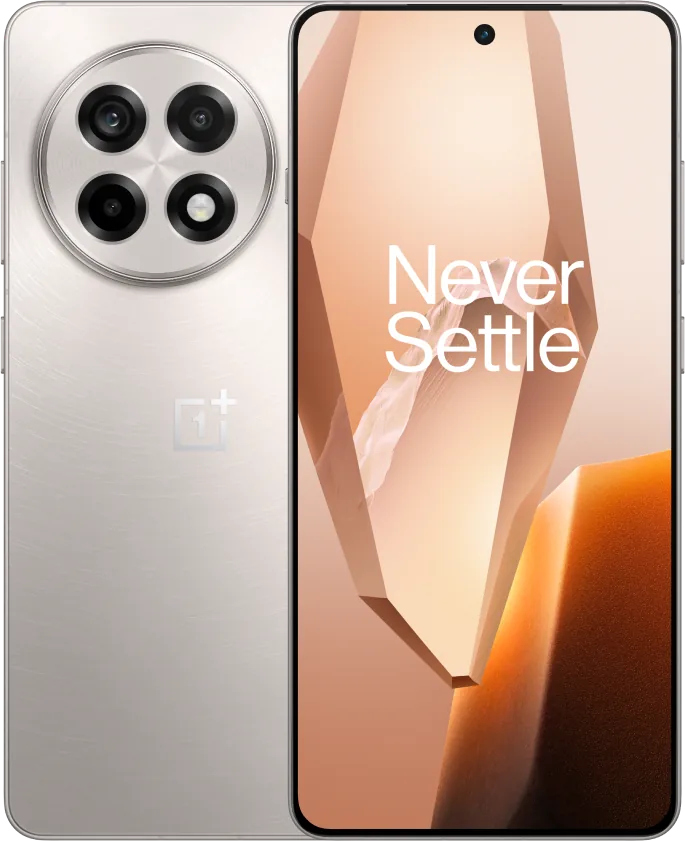

OnePlus OnePlus Ace 5
Photo 1 of 8

OnePlus OnePlus Ace 5 · Photo source

OnePlus · Ace

OnePlus Ace 5

Released December 2024

A Chinese 6.78-inch gaming phone with a Snapdragon 8 Gen 3 chip, 80 W wired charging and a single-cell battery marketed as 6,400 mAh. Glass and ceramic finishes use ColorOS rather than the global 13R’s OxygenOS.

Screen
6.78″
Display
LTPO OLED, 120 Hz
Chip
Qualcomm Snapdragon 8 Gen 3
Memory
12 GB – 16 GB
Storage
256 GB – 1 TB
Main camera
50 MP
Zoom
–
Battery
6,415 mAh
Weight
206 g

What reviewers say

ZOL and AnTuTu praised the build and steady 60 fps gaming. ZOL found strong battery endurance and comfortable ceramic construction. AnTuTu’s January 2025 test throttled with enhanced 120 fps gaming, unlike its stable standard mode; its camera samples mainly illustrate the Pro, so ZOL’s favourable camera assessment applies specifically to this model.

From mobile.zol.com.cn and antutu.com

Specifications

Report a wrong or missing spec

Display

Screen size
6.78″
Resolution
2780 × 1264
Sharpness
450 pixels per inch
Panel
LTPO OLED
Refresh rate
120 Hz
Peak brightness
4,500 nits
Display type
Flat flexible OLED; 1–120 Hz LTPO adaptive refresh (maker overview footnote 11); 93.9% screen-to-body ratio and 10-bit colour
Pixel density
450 ppi
Brightness detail
Maker typical maximum 800 nits normal full-screen, 1,600 nits triggered full-screen and 4,500 nits peak; peak is a separate condition
Screen protection
OPPO Crystal Shield glass
Display features
100% DCI-P3 in listed colour modes; always-on display, local adaptive refresh and 2160 Hz PWM / three-pulse or one-pulse dimming modes, with an alternative DC-like mode. Overview shows Dolby Vision, HDR10+, ZREAL and HDR Vivid support

Performance

Chip
Qualcomm Snapdragon 8 Gen 3
Memory
12 GB – 16 GB
Storage
256 GB, 512 GB, 1 TB
CPU
TSMC 4 nm; eight cores (one prime, three performance, two additional performance and two efficiency); up to 3.3 GHz
GPU
Adreno 750 at 903 MHz
Memory
12 or 16 GB LPDDR5X
Storage type
UFS 4.0; 256 GB, 512 GB or 1 TB
Cooling
Maker 天工散热 Elite vapour-chamber system, with 9,925 mm² advertised VC area and graphite. Maker explicitly says Ace 5 and Ace 5 Pro cooling differ; no Pro-only construction transferred

Cameras

Main camera
50 MP
Ultra wide camera
8 MP
Telephoto camera
None
Optical zoom
None
Front camera
16 MP
Main camera
50 MP Sony IMX906 (maker overview), f/1.8, 24 mm equivalent, six-element lens; autofocus, phase detection and two-axis OIS
Ultra wide camera
8 MP, f/2.2, 16 mm equivalent, five-element lens and 112° field of view; fixed focus
Front camera
16 MP Sony IMX480, f/2.4
Zoom
No optical zoom; up to 20× digital zoom
Video recording
4K or 1080p at 30/60 fps; 720p 30 fps. Stabilisation specified at 1080p 60 fps; slow motion 1080p 240 or 720p 240/480 fps. Cinema mode 4K 30; time-lapse 4K/1080p 30; multi-view 1080p 30
Front video
1080p or 720p 30 fps, with stabilisation; beauty processing enabled by default
Camera features
2 MP macro camera, f/2.4, 22 mm equivalent, three-element lens and fixed focus. Single-colour-temperature rear LED flash and flicker sensor; JPG, HEIF and RAW rear images. Portrait, night, professional, panorama, long exposure, document, macro, tilt-shift, AI reflection/removal and live-photo modes; supported services depend on software

Battery and charging

Battery
6,415 mAh
Wired charging
Up to 80 W
Wireless charging
None
Battery life detail
Non-removable single cell: 6,415 mAh / 24.57 Wh typical and 6,285 mAh / 24.08 Wh rated. Overview headline rounds capacity to 6,400 mAh; headline field uses exact specification typical value
Wired charging
Up to 80 W SUPERVOOC; supplied adapter rated up to 80 W. AnTuTu’s 7 January 2025 standard-phone test charged from 5% to full in 50 minutes at 25°C; its 33-minute result and bypass support apply to the Pro, not this test phone

Design

Type
Standard
Weight
206 g
Thickness
8.02 mm
Height × width
161.72 × 75.77 mm
Water and dust resistance
IP65
Materials
Metal frame; Crystal Shield glass front and black/titanium backs; Tianqing ceramic edition has a ceramic back
Colours
引力钛 (Gravitational Titanium), 全速黑 (Full-speed Black), 天青瓷 (Tianqing ceramic special edition). English descriptions translate Chinese names. Glass finishes approximately 206 g; ceramic approximately 223 g, without protective film; maker publishes a shared 8.02 mm thickness with configuration/manufacturing tolerance
Buttons
Three-position Alert Slider for silent, vibration or ringing
Water resistance detail
IP65 under GB/T 4208-2017 / IEC 60529; maker test uses a 6.3 mm nozzle at 2.5–3 m, 12.5 L/min for at least three minutes. Wear can reduce protection; immersion damage is excluded from warranty
Biometrics
In-display optical fingerprint reader
Sensors
Proximity, ambient light, colour temperature, compass, accelerometer, gyroscope and Hall sensors; infrared remote transmitter and X-axis linear motor
Speakers
Stereo speakers; OReality Audio
Microphones
Three microphones

Software

Operating system
Android
Software at launch
Chinese ColorOS 15.0 based on Android; exact maker table does not state Android major version. First Chinese sale immediately after the 26 December 2024 launch; Ace 5 Pro’s 31 December date does not apply
AI features
Chinese Xiaobu assistant, document conversion/translation/summaries, note formatting and voice summaries; supported apps, files, languages and network requirements vary. iPhone sharing requires compatible apps and devices. Enhanced-frame and upscaling game support changes with software; no universal native 120 fps claim
In the box
Phone, USB-A to USB-C cable, charger, SIM ejector, protective case and quick-start guide

Connectivity

Mobile network
GSM 850/900/1800; CDMA BC0; WCDMA 1/4/5/6/8/19; LTE FDD 1/3/4/5/8/18/19/26/28A/66 and TDD 34/38/39/40/41/42/48; 5G SA/NSA n1/n3/n5/n8/n28A/n38/n40/n41/n48/n66/n77/n78. Exact Chinese list does not include LTE band 20
SIM
Dual nano-SIM; Chinese operator and dual-SIM VoLTE conditions apply
Wi-Fi
Wi-Fi 7/6/5 and a/b/g/n; 2.4/5.1/5.8 GHz, 2×2 MIMO, up to 160 MHz and eight spatial-stream sounding MU-MIMO; WLAN display, tethering and simultaneous 2.4/5 GHz operation
Bluetooth
Bluetooth 5.4, BLE Audio; SBC, AAC, aptX, aptX HD, LDAC and LHDC 5.0
NFC
13.56 MHz reader/writer, HCE, embedded secure element and NFC-SIM in slot 1; Chinese transport/payment services vary
USB
USB-C, USB 2.0; standard USB-C earphones supported
Positioning
BeiDou B1I/B1C/B2a, GPS L1/L5, GLONASS G1, Galileo E1/E5a and QZSS L1/L5; assisted, WLAN and cellular positioning

Storage options

StorageMemory
256 GB12 GB
256 GB16 GB
512 GB12 GB
512 GB16 GB
1 TB16 GB

Pros and cons

Pros

  • 1–120 Hz LTPO OLED display
  • Stabilised 50 MP main camera
  • Large single-cell battery and supplied 80 W charger

Cons

  • No optical telephoto camera
  • IP65 protects against jets, not immersion
  • USB 2.0; Chinese software and network bands

Closest rivals

Model
ScreenDisplayChipMemoryStorageMain cameraZoomBatteryWeightReleased
XiaomiPOCO F6 Pro
6.67″OLED, 120 HzQualcomm Snapdragon 8 Gen 212 GB – 16 GB256 GB – 1 TB50 MP–5,000 mAh209 gMay 2024
HonorX9c
6.78″OLED, 120 HzQualcomm Snapdragon 6 Gen 18 GB – 12 GB256 GB – 512 GB108 MP–6,600 mAh189 gNov 2024
iQOONeo9 Pro
6.78″LTPO OLED, 144 HzQualcomm Snapdragon 8 Gen 28 GB – 12 GB128 GB – 256 GB50 MP–5,160 mAh190 gFeb 2024
