OnePlus Ace Racing Edition
A Chinese Dimensity 8100-MAX phone with a 6.59-inch 120 Hz LCD, 5,000 mAh battery, 67 W charging and 3.5 mm headphone socket. This is the original 2022 Racing Edition, distinct from Ace 5 Racing Edition.
- Screen
- 6.59″
- Display
- LCD, 120 Hz
- Chip
- MediaTek Dimensity 8100-MAX
- Memory
- 8 GB – 12 GB
- Storage
- 128 GB – 256 GB
- Main camera
- 64 MP
- Zoom
- –
- Battery
- 5,000 mAh
- Weight
- 205 g
What reviewers say
AnTuTu and ZOL liked the comfortable moulded body, gaming performance and useful headphone socket. ZOL praised the LCD and colour reproduction; AnTuTu considered the display ordinary for its price and disliked the recessed fingerprint button. Their launch charging tests differed in temperature and protocol; AnTuTu also reported pre-release game frame-rate restrictions.
From antutu.com and mobile.zol.com.cn
Product links
Specifications
Report a wrong or missing specDisplay
- Screen size
- 6.59″
- Resolution
- 2412 × 1080
- Sharpness
- 401 pixels per inch
- Panel
- LCD
- Refresh rate
- 120 Hz
- Peak brightness
- 600 nits
- Display type
- LTPS LCD; six adaptive refresh settings (maker overview). 90.8% screen-to-body ratio
- Pixel density
- 401 ppi
- Brightness detail
- 480 nits typical; up to 600 nits typical in sunlight
- Display features
- 16.7 million colours, 8-bit; vivid 97% NTSC/100% DCI-P3, soft 70% NTSC/99% sRGB. 240 Hz touch sampling; maker AI backlight learning claim is not a quality measurement
Performance
- Chip
- MediaTek Dimensity 8100-MAX
- Memory
- 8 GB – 12 GB
- Storage
- 128 GB, 256 GB
- CPU
- TSMC 5 nm; eight cores (four large/four small), maximum 2.85 GHz
- GPU
- Arm Mali G610 MC6 at 850 MHz
- AI engine
- MediaTek APU 5.0
- Memory
- 8 or 12 GB LPDDR5; exact combinations 8/128, 8/256 and 12/256 GB
- Storage type
- 128 or 256 GB UFS 3.1
- Cooling
- Maker eight-layer cooling system with vapour chamber, diamond heat-conducting material and graphite; no unpublished VC area inferred
Cameras
- Main camera
- 64 MP
- Ultra wide camera
- 8 MP
- Telephoto camera
- None
- Optical zoom
- None
- Front camera
- 16 MP
- Main camera
- 64 MP, f/1.7, 81° field of view, six-element lens, autofocus and closed-loop focus motor
- Ultra wide camera
- 8 MP, f/2.2, 112° field of view, five-element lens, fixed focus
- Front camera
- 16 MP, f/2.05, 79° field of view, five-element lens, no autofocus
- Zoom
- No optical telephoto camera listed
- Video recording
- 4K 30 fps; 1080p/720p 30/60 fps; EIS at 1080p 60 fps. Slow motion 1080p 120 fps or 720p 240 fps; multi-view 1080p 30 fps
- Front video
- 1080p/720p 30 fps with electronic stabilisation; default 1080p 30 with beauty enabled
- Camera features
- Additional 2 MP macro, f/2.4, 89° field of view, three elements, fixed focus. Rear night/professional/panorama/portrait/time-lapse/slow-motion/text/multi-view/cinema/macro modes. Lower camera-shaped decorative area does not establish a fourth camera
Battery and charging
- Battery
- 5,000 mAh
- Wired charging
- Up to 67 W
- Wireless charging
- None
- Battery life detail
- Single cell, typical 5,000 mAh at 3.87 V / 19.35 Wh; rated 4,890 mAh at 3.87 V / 18.92 Wh. Maker normal-use 1.3-day claim is not continuous screen runtime
- Wired charging
- 67 W SUPERVOOC, supplied charger maximum 67 W; maker about 30 minutes to 80%, starting at 2%, fast-charge option enabled, screen off, flight mode, background apps closed, 25±1°C, 25–75% humidity and 86–106 kPa. Adapter supports SUPERVOOC 2.0, SUPERVOOC, VOOC 3.0, PD 3.0 and QC 2.0 at 9 V/2 A for the latter two
Design
- Type
- Standard
- Weight
- 205 g
- Thickness
- 8.7 mm
- Height × width
- 164.3 × 75.8 mm
- Materials
- Injection-moulded rear with grey sandstone or blue glazed finish; AnTuTu identifies plastic rear, not glass
- Colours
- 竞技灰 (grey) and 光速蓝 (blue); English descriptions translate Chinese names. Bare-phone 205 g excludes preapplied film
- Buttons
- X-axis linear vibration motor; no alert slider shown on exact maker model
- Biometrics
- Side fingerprint sensor and face unlock
- Sensors
- Ambient light, proximity, geomagnetic, accelerometer, gyroscope and step counting
- Speakers
- Dual closed-cavity stereo speakers (maker overview)
Software
- Operating system
- Android
- Software at launch
- Chinese ColorOS 12.1 based on Android 12. Announced 17 May 2022; planned first sale 31 May at 20:00. Later 2022 retail review confirms availability, but earliest completed first-sale month is unresolved, so release uses year precision
- Software updates
- Maker 36-month smoothness laboratory certification is not a software update term
- In the box
- Phone, charger, SIM ejector, protective case, quick-start/safety guides, welcome letter and brand stickers; exact maker packing list does not specify cable
Connectivity
- Mobile network
- GSM 850/900/1800/1900; CDMA/CDMA2000 BC0; WCDMA 1/4/5/8/19; LTE TDD 34/38/39/40/41, FDD 1/3/4/5/7/8/18/19/28A; 5G n1/n3/n5/n8/n28A/n41/n77/n78. Chinese list omits LTE band 20
- SIM
- Dual nano-SIM; both cards can use 5G. Chinese operator VoLTE requirements apply, including non-data Telecom card
- Wi-Fi
- Wi-Fi 6/5 and a/b/g/n; 2.4/5.1/5.8 GHz, 2×2 MIMO and eight-spatial-stream sounding MU-MIMO, WLAN display/tethering
- Bluetooth
- Bluetooth 5.3, low/high power; SBC, AAC, aptX, aptX HD, LDAC and LHDC
- NFC
- Supported; regional payment/transit services vary
- USB
- USB-C; exact maker page does not publish a USB data generation. Separate 3.5 mm headphone socket
- Positioning
- GPS/A-GPS, BeiDou, GLONASS, Galileo and QZSS; no dual-frequency/dual-antenna positioning. WLAN/cellular positioning and compass supported
Storage options
| Storage | Memory |
|---|---|
| 128 GB | 8 GB |
| 256 GB | 8 GB |
| 256 GB | 12 GB |
Pros and cons
Pros
- 120 Hz LCD and 3.5 mm headphone socket
- 67 W charging and supplied adapter
- Stereo speakers and side fingerprint sensor
Cons
- No optical telephoto
- Chinese cellular bands omit LTE band 20
Closest rivals
Model | Screen | Display | Chip | Memory | Storage | Main camera | Zoom | Battery | Weight | Released |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.62″ | OLED, 120 Hz | Qualcomm Snapdragon 870 | 8 GB – 12 GB | 128 GB – 256 GB | 64 MP | – | 4,700 mAh | 190 g | May 2022 | |
| 6.55″ | OLED, 120 Hz | Qualcomm Snapdragon 778G+ | 8 GB – 12 GB | 128 GB – 256 GB | 50 MP | – | 4,500 mAh | 193.5 g | Jul 2022 | |
| 6.67″ | OLED, 120 Hz | Snapdragon 8+ Gen 1 | 8 GB – 12 GB | 128 GB – 256 GB | 200 MP | – | 5,000 mAh | 205 g | Oct 2022 |
Sources
- oneplus.com/cn/ace-race/specs
- oneplus.com/cn/ace-race
- news.tom.com/202205/4710807070.html
- gizmochina.com/2022/06/27/oneplus-ace-racing-edition-review-strong-competitor-t…
- antutu.com/doc/127356
Photo: oasisstatics.oneplus.cn

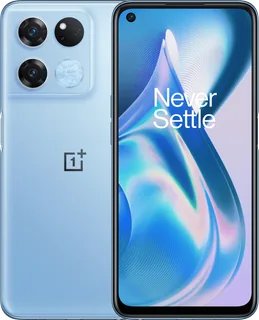

- Blue finish upright front and rear: oasisstatics.oneplus.cn/content/dam/oasis/page/2022/operation/may/cn/540x540-bl…

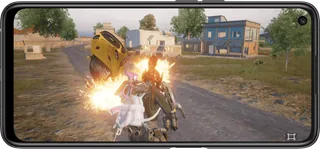

- Phone gaming interface viewed horizontally: oasisstatics.oneplus.cn/content/dam/oasis/page/pkoc/ace-race/module-hyperboost/…

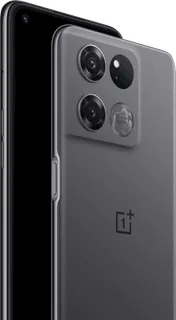

- Grey finish grouped front and rear viewed at an angle: oasisstatics.oneplus.cn/content/dam/oasis/page/pkoc/ace-race/module-performance…

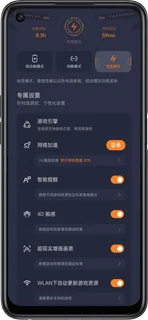

- Maker Chinese gaming settings interface illustration: oasisstatics.oneplus.cn/content/dam/oasis/page/pkoc/ace-race/module-performance…

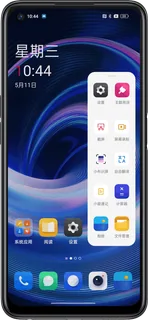

- Maker Chinese multitasking interface illustration: oasisstatics.oneplus.cn/content/dam/oasis/page/pkoc/ace-race/module-performance…

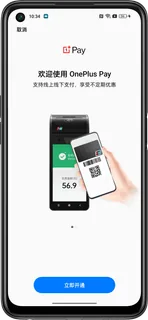

- Maker Chinese OnePlus Pay interface illustration: oasisstatics.oneplus.cn/content/dam/oasis/page/pkoc/ace-race/module-performance…
