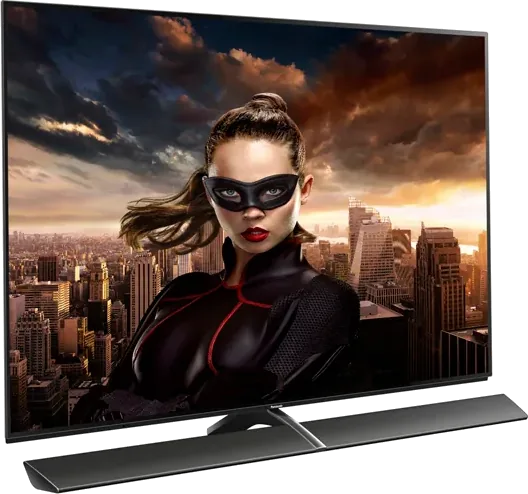

Panasonic · OLED
EZ1002
Panasonic's 2017 UK flagship 4K OLED series, with HCX² processing and a detachable Technics-tuned speaker.
- Sizes
- 65–77″
- Panel
- OLED
- Refresh
- –
- HDR
- HDR10, HLG
- HDMI 2.1
- 0 of 4
- Software
- my Home Screen
What reviewers say
AVForums and HDTVTest both praised the 65-inch EZ1002's exceptional colour accuracy, deep blacks, video processing and HDR10 tone mapping. Both noted its lack of Dolby Vision, while AVForums reported slight banding just above black and less overall HDR brightness than high-end LCD sets.
From avforums.com and hdtvtest.co.uk
Specifications
Report a wrong or missing specDisplay
- Panel
- OLED
- Panel detail
- Panasonic calls this the Master HDR OLED with an Absolute Black filter. HDTVTest measured 120 Hz on its 65-inch review sample; Panasonic did not publish a native refresh rate for both sizes.
- Resolution
- 3840 × 2160 (4K)
- HDR formats
- HDR10, HLG
- Picture processing
- Master HDR OLED and Studio Colour HCX² processor; Panasonic also lists THX 4K and Ultra HD Premium certification.
Sizes
- Sizes
- 65, 77″
- Largest size
- 77″
Gaming
- HDMI ports
- 4 (0 HDMI 2.1 at 4K 120 Hz+)
- Variable refresh rate
- None
- HDMI detail
- Four HDMI inputs; HDMI 2 supports Audio Return Channel. HDTVTest found only HDMI 1 and 2 handle full-bandwidth 4K at 50 or 60 Hz. Component, composite, CI+ and an SD card slot are also present.
- Input lag
- HDTVTest measured 26 ms in Game mode on the 65-inch sample.
Smart TV and sound
- Smart TV platform
- my Home Screen
- Processor
- Studio Colour HCX²
- Speakers
- 80 W
- Wi-Fi
- Built-in 2.4/5 GHz IEEE 802.11a/b/g/n
- Bluetooth
- Bluetooth 3.0
- Speaker detail
- Detachable Technics-tuned Dynamic Blade Speaker, specified by Panasonic at 80 W total (20 W × 4).
- Casting
- Panasonic my Home Screen 2.0 with Freeview Play, network media and internet apps; service availability may have changed.
- TV tuners
- UK DVB-S/S2 Freesat and DVB-T/T2 Freeview HD, plus PAL I analogue reception; two satellite inputs.
- USB
- One USB 3.0 and two USB 2.0 ports; SD card slot.
- Ethernet
- 10/100 Ethernet port.
- Optical audio out
- Optical PCM and Dolby Digital output; 3.5 mm headphone socket.
Design and power
- Size
- TV only, W × H × D: 65-inch 1452 × 837 × 42 mm; 77-inch 1723 × 998 × 52 mm. With pedestal and speaker: 65-inch 1452 × 918 × 330 mm; 77-inch 1723 × 1091 × 373 mm.
- Stand
- Supplied pedestal and detachable speaker. Wall mounting holes are 400 × 300 mm.
- Power use
- Panasonic product fiche on-mode average: 180 W for 65 inches and 245 W for 77 inches.
- Energy class
- Historical Panasonic UK product fiche rates both sizes B.
- In the box
- Standard and touchpad remote controls, pedestal and Dynamic Blade Speaker. The 65-inch UK model reached retailers in June 2017; the 77-inch model followed later that year.
Sizes
| Size | Model | Weight without stand |
|---|---|---|
| 65″ | TX-65EZ1002B | 20.5 kg |
| 77″ | TX-77EZ1002B | 35 kg |
Pros and cons
Pros
- OLED contrast and wide viewing angles
- HDR10 and HLG support with detailed calibration controls
- Four HDMI inputs and an 80 W integrated speaker
Cons
- No Dolby Vision support
- Only two HDMI inputs accept full-bandwidth 4K at 50 or 60 Hz
- No 3D playback
Closest rivals
Model | Sizes | Panel | Refresh | HDR | HDMI 2.1 | Software | Released |
|---|---|---|---|---|---|---|---|
| 55–77″ | OLED | 120 Hz | Dolby Vision | 2 of 4 | webOS | 2021 | |
| 55–77″ | OLED | 120 Hz | Dolby Vision | 2 of 4 | webOS | Mar 2022 | |
| 55–77″ | OLED | 120 Hz | Dolby Vision | 2 of 4 | webOS | Apr 2023 |
