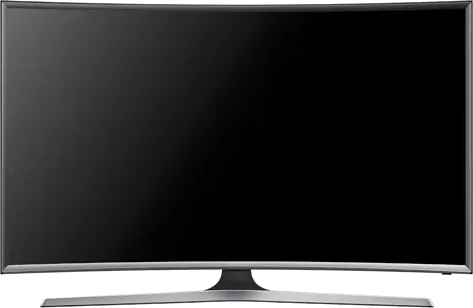

LED J6300
Samsung's 2015 UK curved Full HD LCD series with Tizen smart TV software, available in 32-, 40-, 48- and 55-inch sizes.
- Sizes
- 32–55″
- Panel
- LED LCD
- Refresh
- 120 Hz
- HDR
- None
- HDMI 2.1
- 0 of 4
- Software
- Tizen
What reviewers say
HDTVTest and Expert Reviews praised the 32-inch model's picture, motion controls and connectivity, but wanted lower gaming lag. HDTVTest found excellent calibrated colour and deep blacks; Expert Reviews liked its speakers. Their viewing-angle judgements differed: HDTVTest noted VA-panel limits, while Expert Reviews was happy watching from wide angles.
From hdtvtest.co.uk and expertreviews.co.uk
Specifications
Report a wrong or missing specDisplay
- Panel
- LED LCD
- Panel detail
- Curved LCD; Samsung specifies a 3000 R curve for 32, 40 and 48 inches, and 4200 R for 55 inches. Direct-lit VA panel on the 32-inch HDTVTest sample.
- Resolution
- 1920 × 1080 (Full HD)
- Refresh rate
- 120 Hz (32″), – (40, 48, 55″)
- HDR formats
- None
- Picture processing
- Samsung lists Micro Dimming Pro, Wide Colour Enhancer Plus and Auto Depth Enhancer. HDTVTest found no advanced backlight dimming on its 32-inch model; Micro Dimming Pro is picture processing rather than a published local-dimming zone count.
- Motion handling
- Samsung's 800 Picture Quality Index is not native Hz. HDTVTest measured 120 Hz on its 32-inch sample, supporting that configuration's refresh figure; native rates for the other sizes are unpublished in the checked maker tables.
Sizes
- Sizes
- 32, 40, 48, 55″
- Largest size
- 55″
Gaming
- HDMI ports
- 4 (0 HDMI 2.1 at 4K 120 Hz+)
- Variable refresh rate
- None
- Auto low latency mode
- No
- HDMI detail
- Four HDMI inputs with ARC and HDMI-CEC, MHL, component and shared composite inputs in Samsung's UK tables. The UK curved J6300 is distinct from the flat US J6300.
- Input lag
- 42 ms in PC mode and 49 ms in Game Mode on the 32-inch HDTVTest sample; Expert Reviews measured 48 ms in Game Mode on its 32-inch sample.
- Game features
- Manual Game Mode; no variable refresh or automatic low-latency switching.
Smart TV and sound
- Smart TV platform
- Tizen
- Processor
- HyperReal picture engine; quad-core smart processor
- Speakers
- 20 W
- eARC
- No
- Wi-Fi
- Built-in Wi-Fi
- Speaker detail
- Two 10 W speakers in all checked UK size tables. Samsung lists 2-channel down-firing bass-reflex speakers on 40, 48 and 55 inches; the 32-inch table's channel text is malformed, so no channel count is assigned to that size.
- Audio features
- Dolby Digital Plus, DTS Studio Sound, Multiroom Link and TV SoundConnect. DTS Premium Sound 5.1 is explicit in the 40-, 48- and 55-inch tables; the 32-inch codec text is malformed.
- Casting
- Mobile-to-TV mirroring, DLNA, Smart View and Wi-Fi Direct.
- Software updates
- Tizen 2.3 in Samsung's developer model-group table; original app availability is not guaranteed today.
- TV tuners
- DVB-T2/C Freeview HD tuner, analogue tuner and CI+ 1.3.
- USB
- Three USB ports with media playback, recording and time shift.
- Ethernet
- One Ethernet LAN port.
- Optical audio out
- One optical digital audio output; headphone socket also provided.
Design and power
- Size
- Width × height × depth without stands: 32-inch 730.3 × 428.2 × 91.5 mm; 40-inch 915.9 × 533.6 × 104.1 mm; 48-inch 1082.2 × 628.2 × 118.7 mm; 55-inch 1239.1 × 715.8 × 113.7 mm. Configuration weights exclude stands.
- Stand
- V-shaped stand; Samsung's UK tables list with-stand weights of 5.6, 8.6, 12.3 and 17.1 kg for 32, 40, 48 and 55 inches respectively.
- Power use
- Maximum use by size: 32-inch 102 W; 40-inch 116 W; 48-inch 135 W; 55-inch 158 W. These are maximum ratings, not typical use.
- In the box
- TM1250A remote, batteries, power cord and manual.
Sizes
| Size | Model | Refresh rate | Weight without stand |
|---|---|---|---|
| 32″ | UE32J6300AKXXU | 120 Hz | 5.2 kg |
| 40″ | UE40J6300AKXXU | – | 7.6 kg |
| 48″ | UE48J6300AKXXU | – | 11.3 kg |
| 55″ | UE55J6300AKXXU | – | 16.1 kg |
Pros and cons
Pros
- Four HDMI inputs and three USB ports
- Built-in Wi-Fi, Freeview HD and USB recording
- Includes a 32-inch Full HD option
Cons
- No 4K or HDR support
- No HDMI 2.1 or variable refresh support
- Original online apps may no longer be available
Closest rivals
Model | Sizes | Panel | Refresh | HDR | HDMI 2.1 | Software | Released |
|---|---|---|---|---|---|---|---|
| 42–55″ | LED LCD | – | None | 0 of 4 | NetCast | Jun 2010 | |
| 32–55″ | LED LCD | – | None | 0 of 4 | LG Smart TV | May 2012 | |
| 42–55″ | LED LCD | – | None | 0 of 4 | Sony Entertainment Network | 2014 |
