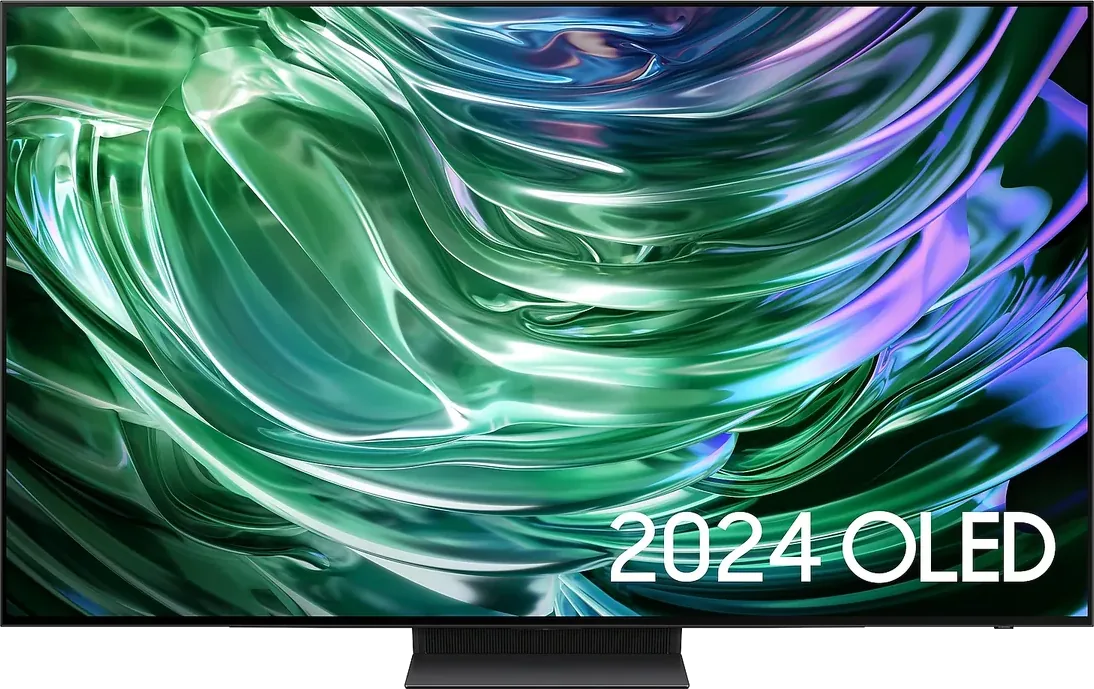

Samsung OLED S90D · Photo source
Samsung · OLED
OLED S90D
Samsung's 2024 mid-range 4K OLED TV, sold in the UK in 48 to 83 inches, with 4K 144Hz on all four HDMI ports and the NQ4 AI Gen2 processor; the panel type depends on size.
- Sizes
- 48–83″
- Panel
- OLED, QD-OLED
- Refresh
- 144 Hz
- HDR
- HDR10+
- HDMI 2.1
- 4 of 4
- Software
- Tizen
What reviewers say
Reviewers agree it is a strong mid-range OLED, with deep blacks, rich colour, high brightness for an OLED, wide viewing angles and excellent gaming performance. Tom's Guide criticised the lack of Dolby Vision, a less than fluid interface and panel types that vary by size, and RTINGS found it struggles a little in very bright rooms.
From tomsguide.com and rtings.com
Specifications
Report a wrong or missing specDisplay
- Panel
- OLED (48, 55, 77, 83″), QD-OLED (65″)
- Panel detail
- Samsung doesn't say which panel each size uses; the 48″ and 83″ use WOLED (HDTVTest), and RTINGS reports the UK 65″ (QE65S90DATXXU) as likely QD-OLED and the "AE" models (55″, 77″) as likely WOLED
- Resolution
- 3840 × 2160 (4K)
- Refresh rate
- 144 Hz
- HDR formats
- HDR10, HDR10+, HLG
- HDR extras
- OLED HDR+ (OLED HDR on 48″); HDR10+ Adaptive and HDR10+ Gaming
- Screen finish
- Anti Reflection; glossy (RTINGS)
- Picture processing
- 4K AI Upscaling, Real Depth Enhancer, HDR Brightness Optimizer
- Picture modes
- Filmmaker Mode; Smart Calibration (Basic)
- Motion handling
- Motion Xcelerator 144Hz
- Viewing angle
- Ultra Viewing Angle
Sizes
- Sizes
- 48, 55, 65, 77, 83″
- Largest size
- 83″
Gaming
- HDMI ports
- 4 (all HDMI 2.1 at 4K 120 Hz+)
- Variable refresh rate
- HDMI VRR, FreeSync Premium
- Auto low latency mode
- Yes
- HDMI detail
- 4K 144Hz on HDMI 1/2/3/4; eARC; Anynet+ (HDMI-CEC)
- Game features
- FreeSync Premium, HGiG, Game Motion Plus, Dynamic Black EQ, Super Ultra Wide Game View, Mini Map Zoom
- Cloud gaming
- Samsung Gaming Hub
Smart TV and sound
- Smart TV platform
- Tizen
- Processor
- NQ4 AI Gen2 Processor
- Speakers
- 40 W, 2.1 channels
- Dolby Atmos
- Yes
- eARC
- Yes
- Wi-Fi
- Wi-Fi 5
- Bluetooth
- 5.2
- Speaker detail
- 40 W, 2.1ch, OTS Lite
- Audio features
- Q-Symphony, Active Voice Amplifier Pro, Adaptive Sound Pro, 360 Audio, Audio Pre-selection Descriptor
- Voice assistants
- Bixby and Alexa built in, with far-field voice; works with Alexa and Google Assistant speakers
- Casting
- Apple AirPlay, Tap View and screen or sound mirroring from Samsung phones
- Software updates
- Security updates until at least 31 December 2029
- TV tuners
- Twin DVB-T2/C/S2 and analogue; CI+ 1.4 slot; HbbTV 2.0.3
- USB
- 2 × USB-A
- Ethernet
- 1 × LAN
- Optical audio out
- 1 × optical
Design and power
- Size
- Without stand, 48″ 1069.3 × 619.9 × 39.6 mm; 55″ 1225.4 × 708.6 × 39.9 mm; 65″ 1444.3 × 831.7 × 39.9 mm; 77″ 1718.5 × 987.6 × 44.9 mm; 83″ 1851.0 × 1062.8 × 44.9 mm
- Stand
- Simple Plus Blade stand; footprint 366 × 265.2 mm (48″ to 65″) or 366 × 359 mm (77″, 83″)
- VESA pattern
- 48″ to 65″ 300 × 200 mm; 77″ and 83″ 400 × 300 mm
- Power use
- Typical/max, 48″ 65.7/210 W; 55″ 81/320 W; 65″ 90/390 W; 77″ 126/490 W; 83″ 150/670 W; 0.5 W standby
- Energy class
- G (48″, 55″); F (65″ to 83″)
- Colours
- Graphite Black
- In the box
- Remote controls TM2360E and TM1240A (UK), power cable, user manual
Sizes
| Size | Model | Panel | Weight without stand |
|---|---|---|---|
| 48″ | QE48S90DAEXXU | OLED | 10.6 kg |
| 55″ | QE55S90DAEXXU | OLED | 14.6 kg |
| 65″ | QE65S90DATXXU | QD-OLED | 21.2 kg |
| 77″ | QE77S90DAEXXU | OLED | 32.4 kg |
| 83″ | QE83S90DAEXXU | OLED | 37.6 kg |
Pros and cons
Pros
- All four HDMI ports take 4K 144Hz, with VRR, FreeSync Premium and ALLM
- Five UK sizes from 48″ to 83″
- HDR10+ Adaptive and HDR10+ Gaming
Cons
- No Dolby Vision
- Mixed panels by size; the 48″ and 83″ are WOLED (HDTVTest), and only the UK 65″ is likely QD-OLED (RTINGS)
- Wi-Fi 5 and Bluetooth 5.2
Closest rivals
Model | Sizes | Panel | Refresh | HDR | HDMI 2.1 | Software | Released |
|---|---|---|---|---|---|---|---|
| 42–83″ | OLED | 144 Hz | Dolby Vision | 4 of 4 | webOS | Apr 2024 | |
| 42–83″ | OLED | 144 Hz | Dolby Vision | 4 of 4 | webOS | Mar 2025 | |
| 42–83″ | OLED | 165 Hz | Dolby Vision | 4 of 4 | webOS | Mar 2026 |
Previous model: OLED S90C. Newer model: OLED S90F.
Sources
- samsung.com/uk/support/model/QE65S90DATXXU
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- searchapi.samsung.com/v6/front/b2c/product/spec/detail
- hdtvtest.co.uk/news/Samsung-announces-US-pricing-for-S95D-and-S90D-OLED-TVs
- hdtvtest.co.uk/news/Samsung-details-UK-pricing-and-launch-dates-for-most-2024-T…
- rtings.com/tv/reviews/samsung/s90d-oled
Photo: images.samsung.com

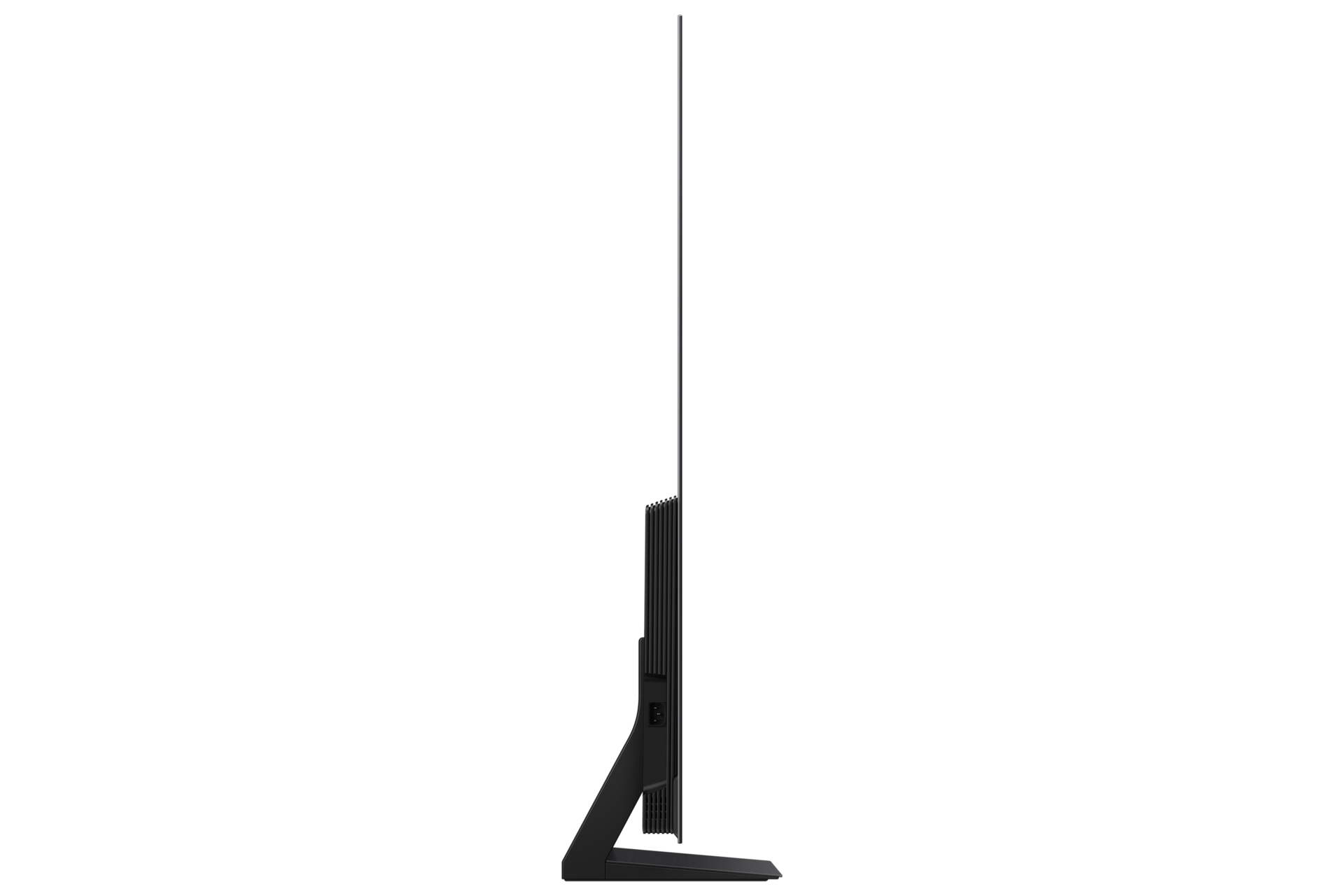

- OLED S90D, 65-inch configuration, side profile with supplied stand: Samsung official product gallery

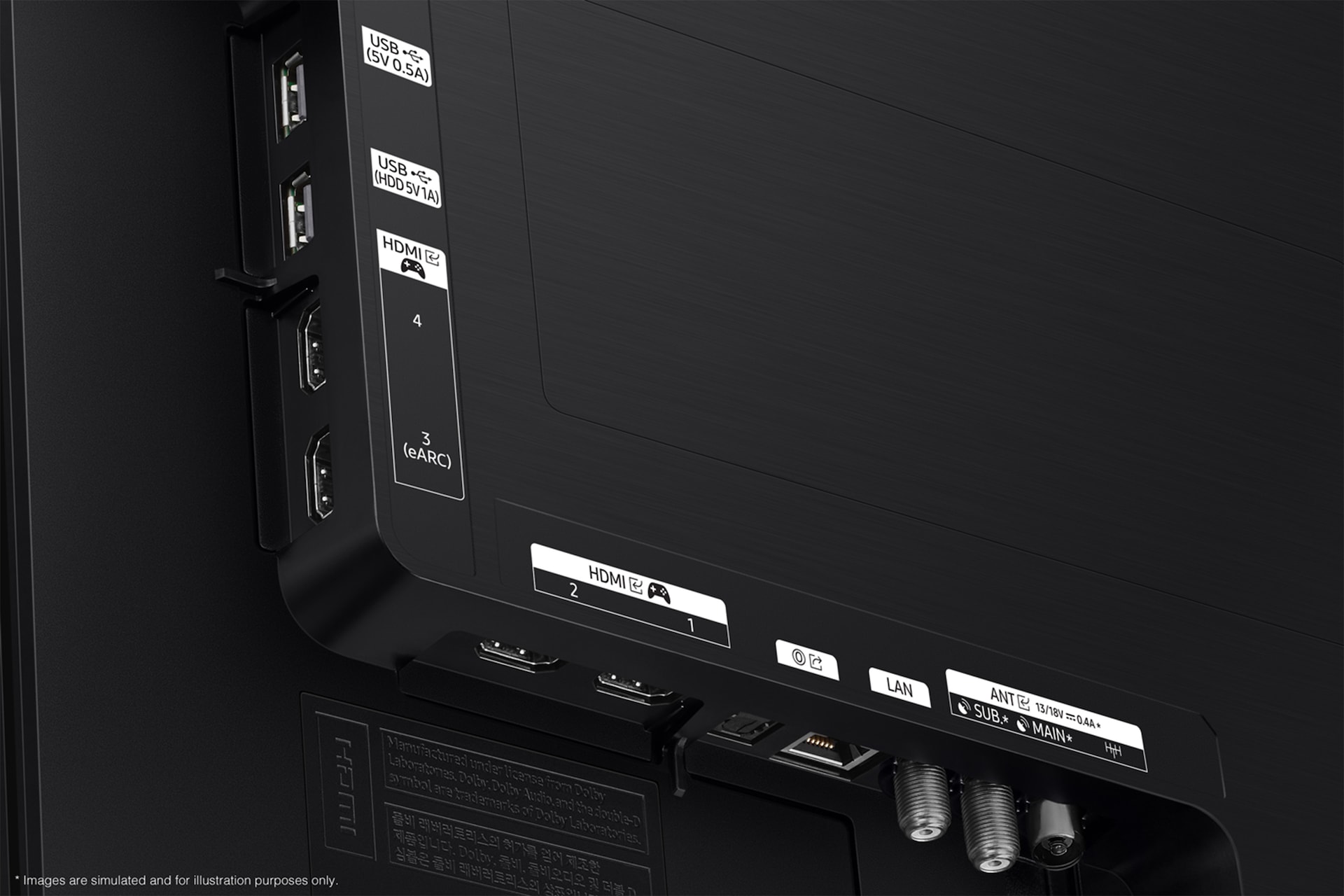

- OLED S90D, 65-inch configuration, rear connection-panel close-up: Samsung official product gallery
