Sony · BRAVIA

X900H / XH90

Released 2020

A 2020 4K full-array LED LCD TV, sold as XH90 in the UK, with Android TV and 55–85-inch sizes.

Sizes: 55–85″
Panel: LED LCD
Refresh: 120 Hz
HDR: Dolby Vision
HDMI 2.1: 2 of 4
Software: Android TV

What reviewers say

What Hi-Fi?’s 65-inch and T3’s 75-inch UK reviews praise colourful HDR pictures, contrast, motion and upscaling. Both recommend better external sound, but T3 hears more body while What Hi-Fi? finds bass and spatial effects limited. Their missing HDMI 2.1 features describe launch software; Sony firmware later added 4K 120 Hz, eARC and VRR.

From whathifi.com and t3.com

Specifications

Report a wrong or missing spec

Display

Panel: LED LCD
Resolution: 3840 × 2160 (4K)
Refresh rate: 120 Hz
HDR formats: HDR10, HLG, Dolby Vision
Picture processing: 4K HDR Processor X1, TRILUMINOS Display, Live Colour, Precision Colour Mapping, X-tended Dynamic Range, Object-based HDR Remaster and 4K X-Reality PRO. Full-array LED local dimming; no maker-published zone count.
Picture modes: Custom, Cinema, Game, Graphics, Photo, Dolby Vision Bright/Dark and Netflix Calibrated.
Motion handling: X-Motion Clarity. Current Sony firmware adds 4K 120 Hz signal support; the original video-signal table still lists 4K only up to 60 Hz. RTINGS reports blurred text/halved vertical detail in some 4K 120 Hz modes, so signal support does not assert uncompromised full-resolution rendering.

Sizes

Sizes: 55, 65, 75, 85″
Largest size: 85″

Gaming

HDMI ports: 4 (2 HDMI 2.1 at 4K 120 Hz+)
Variable refresh rate: HDMI VRR
Auto low latency mode: Yes
HDMI detail: Four side HDMI inputs; HDMI 3/4 provide the two HDMI 2.1 inputs (exact reviews/RTINGS), with eARC on HDMI 3. Maker UK specifications list 4K120/eARC/VRR/ALLM with update footnotes, while the old ARC row says ARC only. Sony’s applicable-model firmware record explicitly adds 4K 120 Hz, eARC and VRR.
Game features: ALLM after firmware, confirmed by RTINGS’s March 2022 test update and maker’s specified feature list. RTINGS reports that VRR disables local dimming and Dolby Vision; Dolby Vision and 4K 120 Hz require different HDMI modes. No FreeSync or certified G-Sync main entry is assigned.

Smart TV and sound

Smart TV platform: Android TV
Processor: 4K HDR Processor X1
Dolby Atmos: Yes
eARC: Yes
Wi-Fi: Wi-Fi 5 (802.11ac)
Bluetooth: 4.2
Speaker detail: UK 65-inch: Acoustic Multi-Audio with two bass-reflex full-range speakers and two sound-positioning tweeters, X-Balanced Speaker and 10 W + 10 W (20 W). T3 names 20 W for its tested UK 75-inch. Other size amplifier figures are not borrowed.
Audio features: Dolby Atmos and DTS Digital Surround. Atmos support does not mean physical overhead speakers.
Voice assistants: Voice remote with Google Assistant; compatible Alexa/Google smart speakers require separate devices.
Casting: Chromecast built-in, Apple AirPlay and HomeKit.
Software updates: Android TV; maker firmware v6.2322 cumulative notes document upgrade from Android 9 to Android 10, Apple TV app, eARC, 4K 120 Hz and VRR additions. The selected current update v6.2624 further improves security and performance.
TV tuners: UK twin DVB-T/T2, DVB-C and DVB-S/S2 tuners; analogue and CI+. Regional US tuner conventions are not applied.
USB: 2 × side USB; USB HDD recording supported.
Ethernet: 1 × side Ethernet LAN.
Optical audio out: 1 × side digital audio output; side headphone output also provided.

Design and power

Size: UK models without stand, W × H × D: 55-inch 123.1 × 71.0 × 7.0 cm; 65-inch 145.0 × 83.3 × 7.0 cm; 75-inch 167.4 × 96.1 × 7.1 cm; 85-inch 189.9 × 108.9 × 7.2 cm. With-stand weights 17.5, 23.2, 34.4 and 47.7 kg respectively. Configuration weights exclude the stand.
Stand: UK Metal Blade Stand widths: 55-inch 105.3 cm, 65-inch 112.8 cm, 75-inch 132.1 cm and 85-inch 152.7 cm. With-stand W × H × D: 123.1 × 78.0 × 33.8, 145.0 × 90.3 × 33.8, 167.4 × 103.4 × 41.0 and 189.9 × 116.2 × 44.1 cm respectively.
VESA pattern: 55/65/75-inch 300 × 300 mm; 85-inch 400 × 400 mm.
Power use: UK 55-inch 116 kWh per 1000 hours; 65-inch 143. UK 65-inch standby 0.50 W; network standby 2.00 W over Wi-Fi/LAN or 0.50 W over HDMI-CEC.
Colours: Black aluminium bezel and dark-silver stand.
In the box: Table-top stand, voice remote, batteries, power cord and instructions. UK model codes are XH9005, with XH9096 for 85-inch; X900H is the North American family name. Maker US 20 April 2020 record offered 65/75-inch pre-orders and planned summer 55/85-inch ordering, not first sale. Maker China’s March/April release says its spring family launched first there, without an exact X9000H sale date; T3 gives only summer 2020. Release remains conservative 2020 after this bounded gap.

Sizes

Size	Model	Weight without stand
55″	KD-55XH9005	16.5 kg
65″	KD-65XH9005	22.2 kg
75″	KD-75XH9005	32.9 kg
85″	KD-85XH9096	45.8 kg

Pros and cons

Pros

Full-array local dimming
Dolby Vision support
4K 120 Hz, VRR and ALLM

Cons

Two HDMI 2.1 inputs
No HDR10+
VRR disables local dimming (RTINGS)

Closest rivals

Model	Sizes	Panel	Refresh	HDR	HDMI 2.1	Software	Released
SamsungNeo QLED QN85A (2021)	55–85″	LED LCD	120 Hz	HDR10+	1 of 4	Tizen	2021
SamsungNeo QLED QN85B (2022)	55–85″	Mini-LED	120 Hz	HDR10+	– of 4	Tizen	2022
SamsungNeo QLED QN85C (2023)	55–85″	Mini-LED	120 Hz	HDR10+	4 of 4	Tizen	2023

Newer model: X90J.

Sources

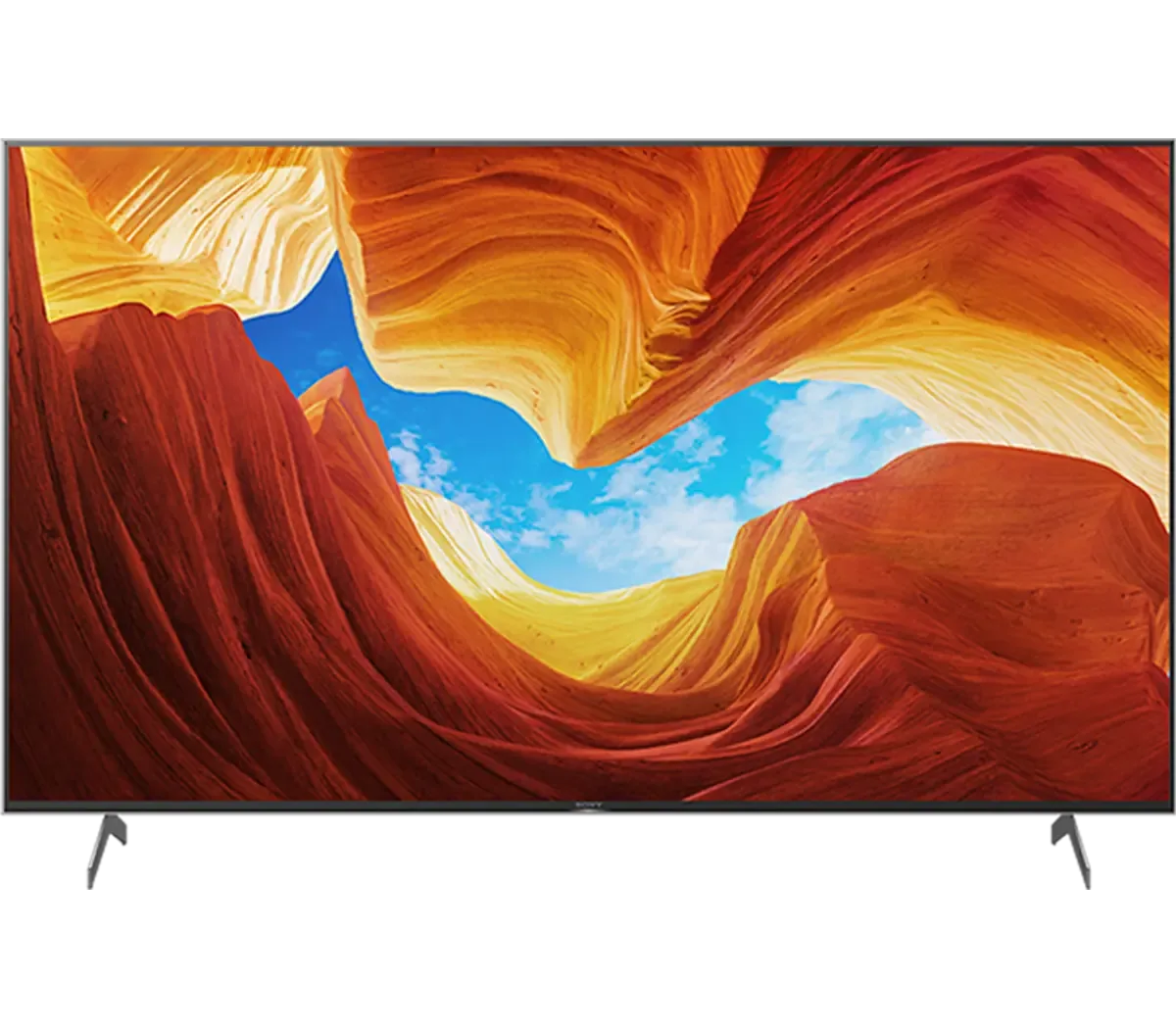

Photo: Sony official store photograph of the US 65-inch XBR-65X900H; regional configuration shown, supplied transparency and screen artwork retained.
