Photo 1 of 5

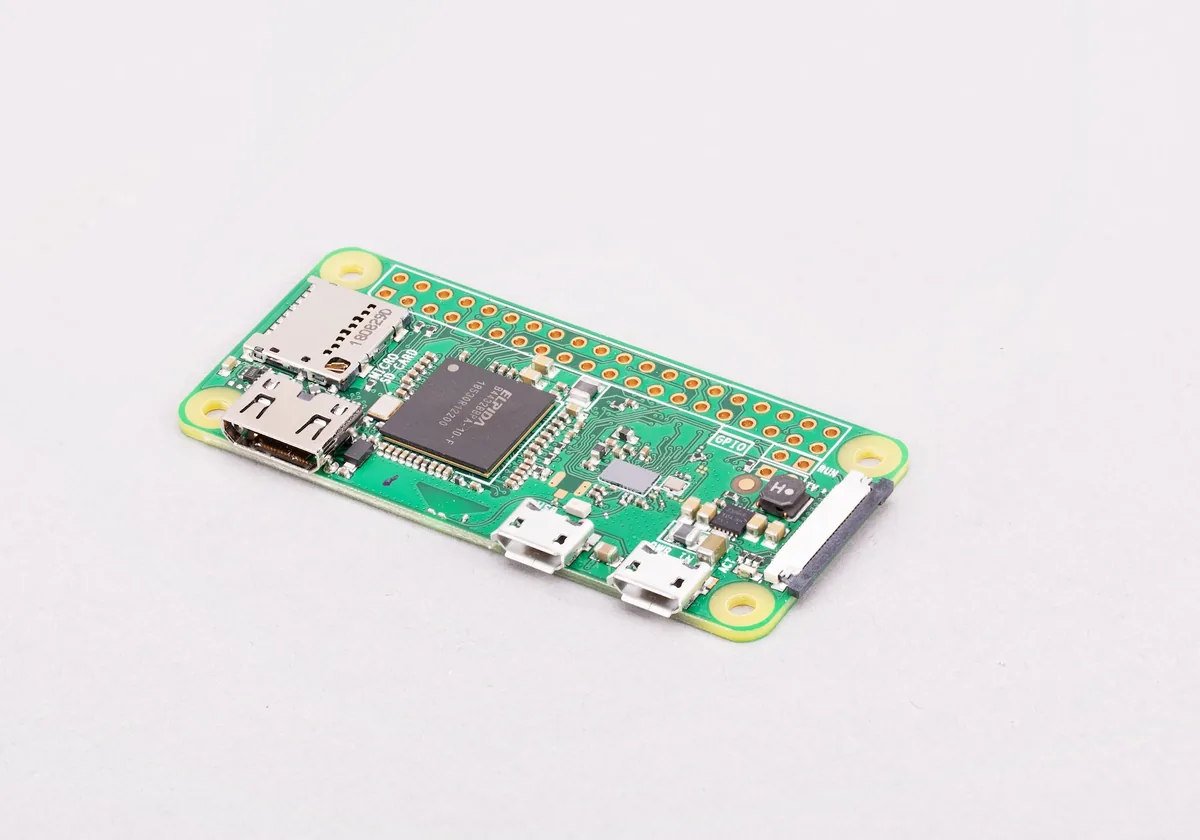

Raspberry Pi Zero W · Photo source
Raspberry Pi · Zero
Zero W
Raspberry Pi Zero with built-in Wi-Fi and Bluetooth, keeping the 1GHz single-core processor and 512 MB of memory in the same 65 × 30 mm board, for small connected projects.
- Processor
- Broadcom BCM2835 (Arm1176JZF-S)
- Clock
- 1 GHz
- Memory
- 512 MB
- Wi-Fi
- Yes
Specifications
Report a wrong or missing specPerformance
- Processor
- Broadcom BCM2835 (Arm1176JZF-S)
- CPU cores
- 1
- Clock
- 1 GHz
- Memory
- 512 MB
- CPU
- Single-core ARM1176JZF-S at 1GHz
- GPU
- VideoCore IV
- Memory
- 512MB
- Storage
- microSD card slot
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- No
- USB ports
- 1
- Display outputs
- 1
- GPIO pins
- 40
- PCIe
- No
- Ports
- Micro USB On-The-Go data port, micro USB power, mini HDMI; composite video and reset headers
- Displays
- Mini HDMI; composite video header
- Wi-Fi and Bluetooth
- 2.4GHz 802.11n Wi-Fi (Cypress CYW43438); Bluetooth 4.0, BLE
- GPIO
- HAT-compatible 40-pin header, unpopulated (pre-soldered on Zero WH)
- Camera and display connectors
- CSI camera connector
Design
- Size
- 65 × 30 mm
- Power
- Micro USB
- Size
- 65 × 30 mm, the same form factor as Zero and Zero 2 W
Pros and cons
Pros
- 802.11n Wi-Fi and Bluetooth 4.0 built in
- Camera connector
- Same size as Raspberry Pi Zero
Cons
- Single-core CPU
- 2.4GHz-only Wi-Fi
- One micro USB data port; GPIO header not fitted (fitted on Zero WH)
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Broadcom BCM2837B0 (Arm Cortex-A53) | 1.4 GHz | 512 MB | Yes | Nov 2018 | |
| Broadcom BCM2835 (Arm1176JZF-S) | 1 GHz | 512 MB | No | Nov 2015 | |
| Broadcom BCM2837 (Arm Cortex-A53) | 1.2 GHz | 1 GB | Yes | Feb 2016 |
Newer model: Zero 2 W.
Sources
- raspberrypi.com/news/raspberry-pi-zero-w-joins-family
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- pip.raspberrypi.com/categories/592-raspberry-pi-zero-w
- pip-assets.raspberrypi.com/categories/584-raspberry-pi-zero-2-w/documents/RP-00…
Photo: raw.githubusercontent.com

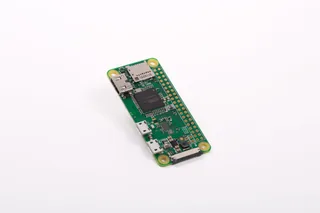

- Raspberry Pi Zero W, angled launch photograph: Raspberry Pi official supplied photograph; complete published framing, background and native alpha preserved.

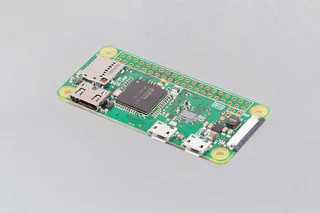

- Raspberry Pi Zero W, angled product-page photograph: Raspberry Pi official supplied photograph; complete published framing, background and native alpha preserved.

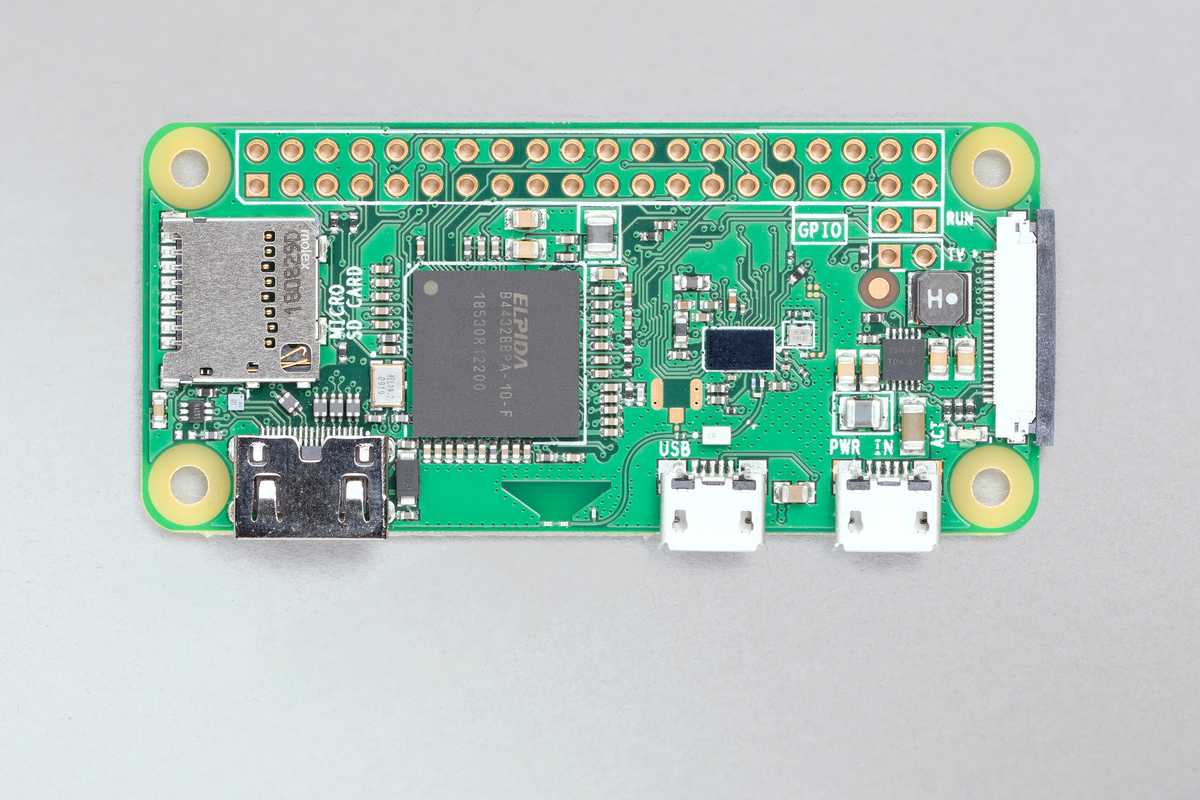

- Raspberry Pi Zero W, component-side top view: Raspberry Pi official supplied photograph; complete published framing, background and native alpha preserved.

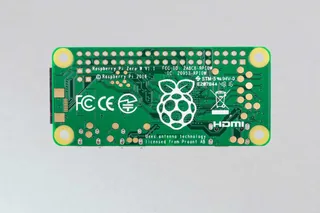

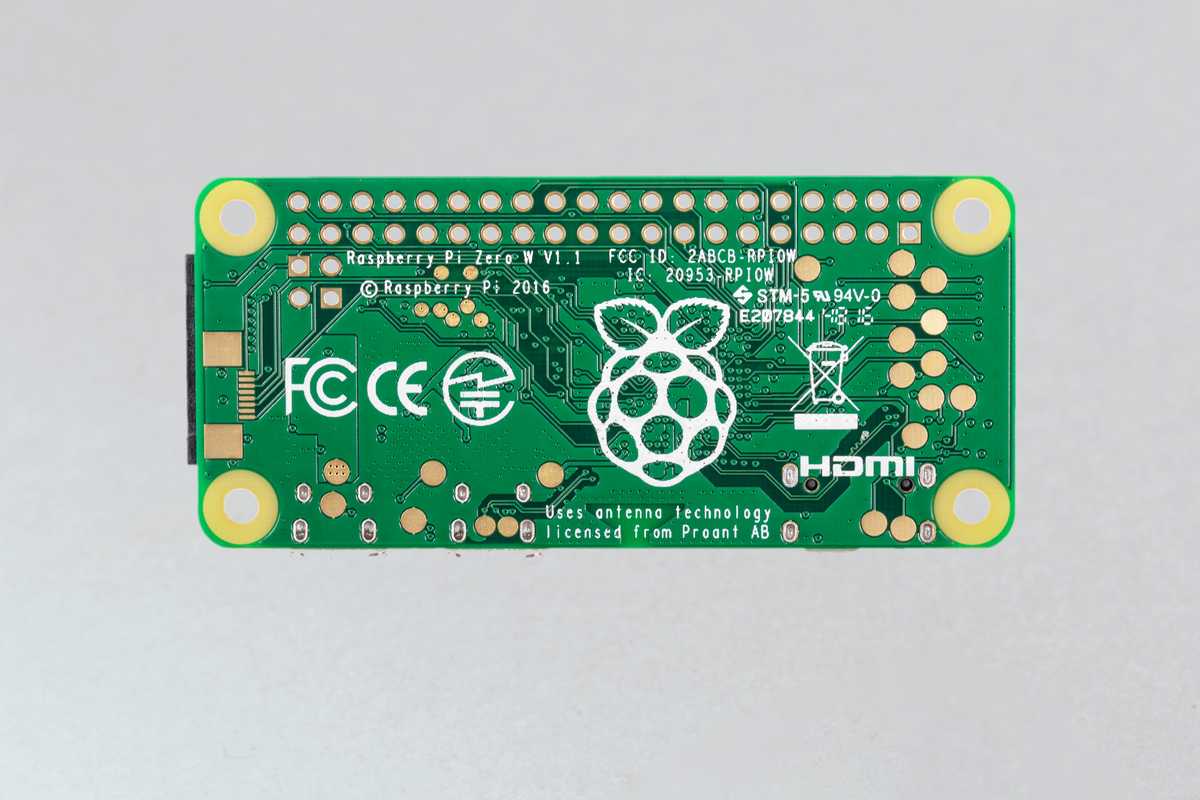

- Raspberry Pi Zero W, underside view: Raspberry Pi official supplied photograph; complete published framing, background and native alpha preserved.
