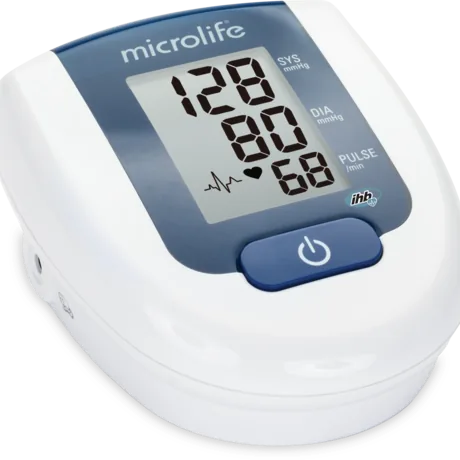

BP 3AG1

Release date not published

A simple upper-arm monitor with irregular-heartbeat indication and one memory of 30 readings.

Product links

Type: Upper arm
Irregular heartbeat detection: Yes
AFib detection or ECG: No
Method: Oscillometric upper-arm measurement during deflation. One automatic measurement started with ON/OFF button; no MAM triple-mode selector in exact guide. Actual first retail sale unresolved
Accuracy: Exact March 2023 guide gives blood pressure 20–280 mmHg and pulse 40–200 bpm; current global support instead lists systolic 60–255 and diastolic 40–200 mmHg. Static pressure accuracy ±3 mmHg and pulse accuracy ±5%; cuff-pressure display 0–299 mmHg is separate
Clinical validation: Exact guide claims shared measurement technology with BP 3BTO-A tested under BIHS protocol. Independent exact BP 3AG1 validation was not recovered in the bounded registry search, so headline validation is omitted. Broad special-population wording in maker guide is not promoted to independently established exact-model validation
Features: Generic irregular-heartbeat indication, not AFib-specific screening or ECG recording. Low-battery warning, pulse indicator and automatic switch-off after approximately one minute. No date/time controls or automatic averaging mode in exact guide

Users: 1
Readings stored: 30
Bluetooth and app: No
Memory: One history of the last 30 readings, with no user selector or timestamps. First recall displays count then latest reading; repeated memory presses show earlier values. Oldest overwritten when full. Complete history can be cleared, individual saved values cannot; newly displayed reading can be excluded
App: No Bluetooth, USB socket or PC-transfer function in exact guide and labelled controls
Power: Four 1.5 V AA alkaline cells; approximately 920 measurements with new batteries. Optional Microlife DC 6 V, 600 mA adapter stops battery-current use while connected. NiMH cells supported with external charging, not charged inside monitor

Cuff: Supplied cuff size not established in recovered global support and guide. Optional S 17–22, M 22–32, M-L 22–42 and L 32–42 cm cuffs and optional pre-shaped cuffs listed; these are not all supplied. Optional small cuff needs the connector from original supplied cuff

Display details: LCD with systolic, diastolic, pulse, irregular-heartbeat, battery and stored-value indications. ON/OFF and memory buttons, cuff and DC sockets. IP20
Size: 140 × 120 × 70 mm; 400 g including batteries in exact guide and global maker support
In the box: Exact global supplied-accessory list not recovered; optional cuff sizes and mains adapter are not treated as bundled. Guide filename contains 3AG1-30 and W identifiers while its exact cover and controls identify BP 3AG1; no cosmetic duplicate record created
