X5 BT
An automatic upper-arm monitor with Bluetooth, AFib and premature-beat screening, and two 60-reading histories.
- Type
- Upper arm
- Users
- 2
- App
- Yes
- Validated
- –
Product links
Specifications
Report a wrong or missing specMeasuring
- Type
- Upper arm
- Irregular heartbeat detection
- Yes
- AFib detection or ECG
- Yes
- Method
- Automatic oscillometric upper-arm measurement during deflation with semiconductor pressure sensor. First-sale date unresolved
- Accuracy
- Pressure 30–260 mmHg; pulse 40–199 bpm. Maker accuracy ±3 mmHg pressure and ±5% pulse
- Clinical validation
- Maker flyer carries ESH/BIHS claims. Medaval's exact X5 BT entry says validation checking remains unresolved; headline validation omitted rather than transferring a non-Bluetooth X5 study
- Features
- Pulse-arrhythmia screening distinguishes AFib and premature beats, including combined findings. Not an ECG. Cuff-fit, movement and hypertension risk indicators; non-storing guest mode. Generic PARR web text about tachycardia/bradycardia does not establish separate X5 BT detection icons
Cuff
- Cuff fits
- 24–40 cm
- Cuff
- Latex-free Universal Cone Cuff, 24–40 cm, with cuff holder
Connections and memory
- Users
- 2
- Readings stored
- 60 per user
- Bluetooth and app
- Yes
- Memory
- Two 60-reading histories with date/time and latest-three average. Seven-day morning average uses 04:00–11:59; nighttime average uses 18:00–02:00. Oldest replaced when full; guest readings not stored
- App
- Bluetooth low energy sends new and stored readings to Rossmax Healthstyle after binding. Optional specially designed USB cable links data socket to Rossmax BP Manager PC software. Rossmax now states BP Manager PC software is discontinued and no longer available; the monitor remains usable independently
- Power
- Four AAA cells, DC 6 V; optional DC 6 V adaptor rated at least 600 mA. Automatic shutdown after one minute without key operation
Design
- Display details
- 69 × 78 mm LCD with arrhythmia type, date/time, user and Bluetooth indicators; IP21
- Size
- 96 × 139.7 × 63.2 mm (L × W × H); 248.6 g without batteries
- In the box
- Maker lists batteries, Universal Cone Cuff, instruction manual and zipper bag. Mains adaptor and PC cable optional
Pros and cons
Pros
- AFib and premature-beat screening
- Bluetooth reading transfer
- Seven-day morning and nighttime averages
Cons
- Pulse screening is not an ECG
- PC cable and mains adaptor optional
- 60 readings per user
Closest rivals
Model | Type | Users | App | Validated | Released |
|---|---|---|---|---|---|
| Upper arm | 2 | Yes | – | – | |
| Upper arm | 2 | Yes | – | – | |
| Upper arm | 1 | Yes | Yes | – |
Sources
- rossmax.com/en/products/monitoring/blood-pressure-monitors.html
- rossmax.com/downloads/IBs/OBM_IB_X5%282%29BT_EN_SW.pdf
- rossmax.com/downloads/Epaper/Epaper_X5_BT_EN.pdf
- medaval.ie/resources/EN/devices/Rossmax-X5-BT.html
- rossmax.com/en/rossmax-downloads.html
Photo: rossmax.com

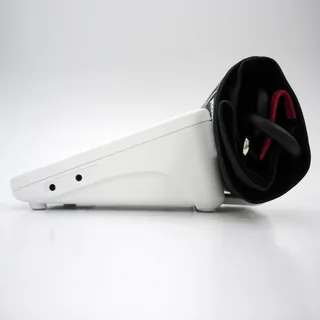

- Maker’s shared X5-family cuff holder view, supplied on the X5 BT page: rossmax.com/images/products/X5/X5_PP_003.jpg

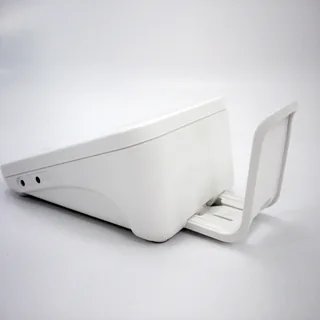

- Maker’s shared X5-family rear stand view, supplied on the X5 BT page: rossmax.com/images/products/X5/X5_PP_004.jpg

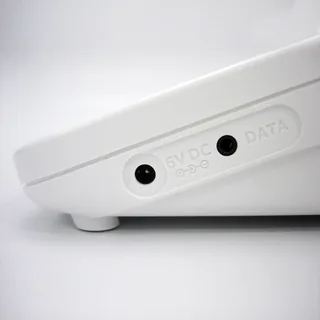

- Maker’s shared X5-family power and data sockets, supplied on the X5 BT page: rossmax.com/images/products/X5/X5_PP_005.jpg

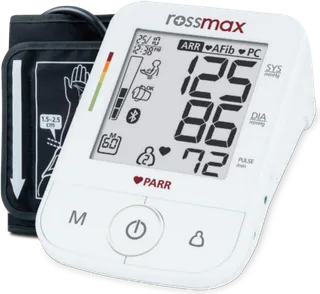

- X5 BT official brochure opposite angled view with cuff in holder, earlier body print: rossmax.com/downloads/Flyer/OBM_OP_5thBPM_EN.pdf

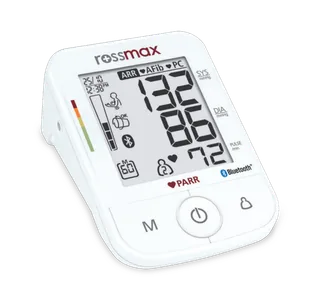

- Rossmax X5 BT monitor, device-only front view: Rossmax exact-model epaper complete embedded product photograph; supplied canvas and native alpha preserved.
