AMD · Ryzen

Ryzen 5 7600X

Released September 2022

A six-core Zen 4 processor for AM5, the entry point to AMD's first DDR5 platform.

Model history · 2 models, 2020–2022

2020Ryzen 5 5600X Compare
2022Ryzen 5 7600X

Cores: 6/12
Boost: 5.3 GHz
L3: 32 MB
Power: 105 W
Socket: AM5

Unlocked

What reviewers say

Reviewers agree it is a big step up from its predecessor, with excellent gaming and single-threaded performance on a platform with a long future. The main reservation is the high cost of moving to AM5 with DDR5 memory; Club386 found Intel's Core i5-13600K much faster in applications and slightly faster in games for similar money, and noted that no cooler is included.

From tomshardware.com, techradar.com and club386.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores: 6
Threads: 12
Base clock: 4.7 GHz
Boost clock: 5.3 GHz
L3 cache: 32 MB
Cores: 6 Zen 4 cores with simultaneous multithreading; codename Raphael AM5; 2 dies in the package
Clocks: Precision Boost 2; Precision Boost Overdrive and Curve Optimizer supported
Cache: L1 384 KB, L2 6 MB, L3 32 MB

Graphics and AI

Built-in graphics: Yes
Graphics: AMD Radeon Graphics, 2 graphics cores at 2200 MHz; USB-C DisplayPort Alt Mode

Platform

Socket: AM5
Base power: 105 W
Unlocked: Yes
Cooler in the box: No
Memory support: DDR5, 2 channels, up to 128 GB (UDIMM); DDR5-5200 with 2 modules, DDR5-3600 with 4; ECC with motherboard support
PCIe: PCIe 5.0; 28 lanes (24 usable); native USB: 4 × USB 3.2 Gen 2 (10Gbps), 1 × USB 2.0
Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
Process: TSMC 5nm FinFET (CPU cores), TSMC 6nm FinFET (I/O die)
Cooler: Not included; Premium air cooler recommended for optimal performance; Tjmax 95°C

Pros and cons

Pros

PCIe 5.0 and DDR5 on the AM5 socket
Up to 5.3 GHz boost
Built-in Radeon graphics

Cons

No cooler in the box
105 W default TDP, against 65 W for the 5600X

Closest rivals

Model	Cores	Boost	L3	Power	Socket	Released
IntelCore i5-12400F	6/12	4.4 GHz	18 MB	65 W	LGA1700	Jan 2022
AMDRyzen 5 4500	6/12	4.1 GHz	8 MB	65 W	AM4	Apr 2022
AMDRyzen 5 5500	6/12	4.2 GHz	16 MB	65 W	AM4	Apr 2022

Previous model: Ryzen 5 5600X. Newer model: Ryzen 5 9600X.

Sources

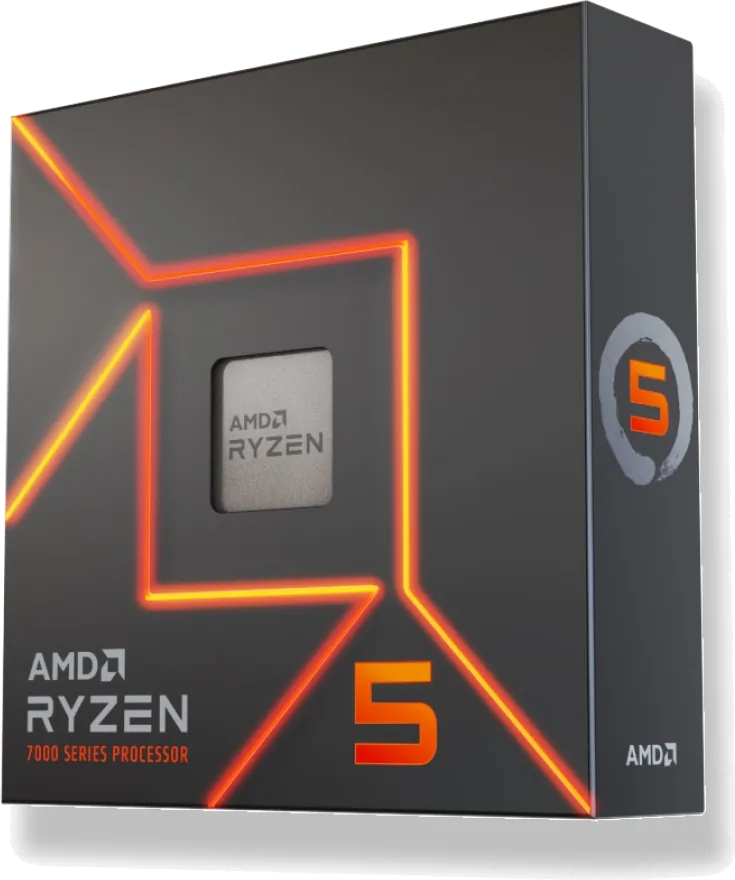

Photo: amd.com
