AMD · Threadripper

Ryzen Threadripper PRO 7995WX

Released November 2023

A 96-core Zen 4 workstation processor for sTR5, with eight-channel DDR5 registered memory and PCIe 5.0 expansion.

Cores: 96/192
Boost: 5.1 GHz
L3: 384 MB
Power: 350 W
Socket: sTR5

Unlocked

What reviewers say

Reviewers find very high rendering throughput, with smaller gains in ordinary editing and lightly threaded work. AEC Magazine’s pre-production Lenovo ThinkStation P8 tests show how incomplete memory-channel population can limit simulation and compilation. Puget finds cheaper HEDT alternatives competitive where PRO memory capacity and expansion are unnecessary.

From pugetsystems.com and aecmag.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores: 96
Threads: 192
Base clock: 2.5 GHz
Boost clock: 5.1 GHz
L3 cache: 384 MB
Cores: Storm Peak; Zen 4 architecture. Boxed 100-100000884WOF; tray 100-000000884. AMD’s 19 October 2023 support launch date is the announcement. HP’s 27 November 2023 QuickSpecs lists this exact CPU as a factory-configured Z6 G5 A option, supporting November availability; AMD’s 21 November retail wording does not name the selected PRO models.
Clocks: Precision Boost 2; Precision Boost Overdrive and Curve Optimizer voltage offsets supported
Cache: L1 6144 KB; L2 96 MB

Graphics and AI

Built-in graphics: No
Graphics: A separate graphics card is required

Platform

Socket: sTR5
Base power: 350 W
Unlocked: Yes
Cooler in the box: No
Memory support: DDR5 RDIMM; eight channels; up to 5200 MT/s. ECC enabled by default; AMD EXPO supported. WRX90 supports up to 2 TB; TRX50 reduces this to four channels and up to 1 TB.
PCIe: PCIe 5.0; 148 native/platform lanes, 144 usable, including 128 PCIe 5.0 lanes with WRX90. TRX50 limits expansion to 92 total/88 usable lanes, including 48 PCIe 5.0. Four native USB 3.2 Gen 2 ports and four SATA ports; NVMe boot and RAID 0, 1, 5 and 10 supported.
Chipsets: WRX90, TRX50 and AMD PRO 695; AMD PRO technologies, DASH management and AMD Memory Guard supported. Platform capabilities depend on the motherboard.
Process: CPU cores: TSMC 5 nm FinFET; I/O die: TSMC 6 nm FinFET. 13 package dies; CCD 71 mm², I/O die 388 mm².
Cooler: Cooler not included; maximum operating temperature 95°C

Pros and cons

Pros

96 cores and 192 threads
Eight-channel DDR5 with ECC support
PCIe 5.0 expansion support

Cons

350 W TDP
Requires registered DDR5 memory
Cooler sold separately

Closest rivals

Model	Cores	Boost	L3	Power	Socket	Released
AMDRyzen Threadripper PRO 9995WX	96/192	5.4 GHz	384 MB	350 W	sTR5	Jul 2025
AMDRyzen Threadripper 7980X	64/128	5.1 GHz	256 MB	350 W	sTR5	Nov 2023
AMDRyzen Threadripper PRO 7985WX	64/128	5.1 GHz	256 MB	350 W	sTR5	Nov 2023

Newer model: Ryzen Threadripper PRO 9995WX.

Sources

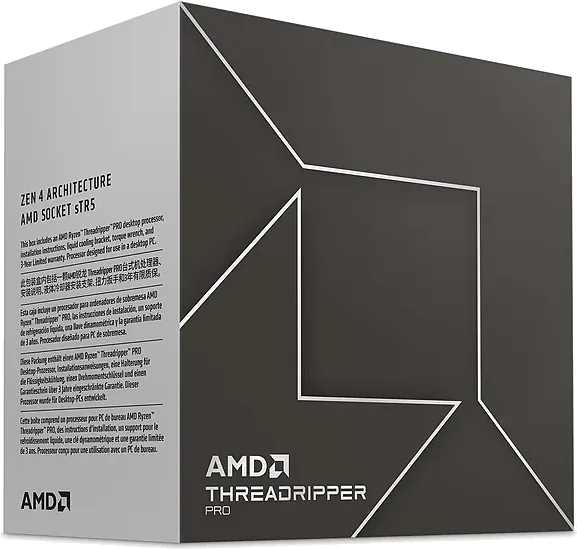

Photo: LDLC exact Ryzen Threadripper PRO 7995WX listing image; generic PRO 7000 retail-box artwork without a visible model label. Original white studio background retained.
