AMD Ryzen Threadripper PRO 9995WX

AMD · Threadripper

Ryzen Threadripper PRO 9995WX

Released July 2025

A 96-core Zen 5 workstation processor for sTR5, with eight-channel DDR5 registered memory and PCIe 5.0 expansion.

Model history · 2 models, 2023–2025
  1. 2023Ryzen Threadripper PRO 7995WXCompare
  2. 2025Ryzen Threadripper PRO 9995WX
Cores
96/192
Boost
5.4 GHz
L3
384 MB
Power
350 W
Socket
sTR5

What reviewers say

Reviews find exceptional throughput in heavily threaded rendering and compilation, with smaller gains in ordinary editing and lightly threaded work. Puget reports strong improvements over the previous 96-core generation. StorageReview’s Dell Precision 7875 tests confirm substantial CPU rendering and software RAW-decoding capacity, although its memory and cooling configuration differs from Puget’s.

From pugetsystems.com and storagereview.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores
96
Threads
192
Base clock
2.5 GHz
Boost clock
5.4 GHz
L3 cache
384 MB
Cores
Shimada Peak; Zen 5 architecture. Boxed 100-100001361WOF; tray 100-000001361. AMD’s 17 July 2025 blog names this model and says PRO 9000 systems are available starting 23 July; announcement and on-sale dates are distinct.
Clocks
Precision Boost 2; Precision Boost Overdrive and Curve Optimizer voltage offsets supported
Cache
L1 7680 KB; L2 96 MB

Graphics and AI

Built-in graphics
No
Graphics
A separate graphics card is required

Platform

Socket
sTR5
Base power
350 W
Unlocked
Yes
Cooler in the box
No
Memory support
DDR5 RDIMM; eight channels; up to 6400 MT/s. ECC enabled by default; AMD EXPO supported. WRX90 supports up to 2 TB; TRX50 reduces this to four channels and up to 1 TB.
PCIe
PCIe 5.0; 148 native/platform lanes, 144 usable, including 128 PCIe 5.0 lanes with WRX90. TRX50 limits expansion to 92 total/88 usable lanes, including 80 PCIe 5.0. Four native USB 3.2 Gen 2 ports and four SATA ports; NVMe boot and RAID 0, 1, 5 and 10 supported.
Chipsets
WRX90, TRX50 and AMD PRO 695; AMD PRO technologies, DASH management and AMD Memory Guard supported. Platform capabilities depend on the motherboard; AMD’s platform guide says OEM systems do not support overclocking.
Process
CPU cores: TSMC 4 nm FinFET; I/O die: TSMC 6 nm FinFET. 13 package dies.
Cooler
Cooler not included; maximum operating temperature 95°C

Pros and cons

Pros

  • 96 cores and 192 threads
  • Eight-channel DDR5 with ECC support
  • PCIe 5.0 expansion support

Cons

  • 350 W TDP
  • Requires registered DDR5 memory
  • Cooler sold separately

Closest rivals

Model
CoresBoostL3PowerSocketReleased
AMDRyzen Threadripper PRO 7995WX
96/1925.1 GHz384 MB350 WsTR5Nov 2023
AMDRyzen Threadripper 9980X
64/1285.4 GHz256 MB350 WsTR5Jul 2025
AMDRyzen Threadripper PRO 9985WX
64/1285.4 GHz256 MB350 WsTR5Jul 2025

Previous model: Ryzen Threadripper PRO 7995WX.

Sources

  1. amd.com/en/products/processors/workstations/ryzen-threadripper/9000-wx-series/a…
  2. amd.com/en/blogs/2025/amd-introduces-new-zen-5-based-ryzen-threadripper-pro.html

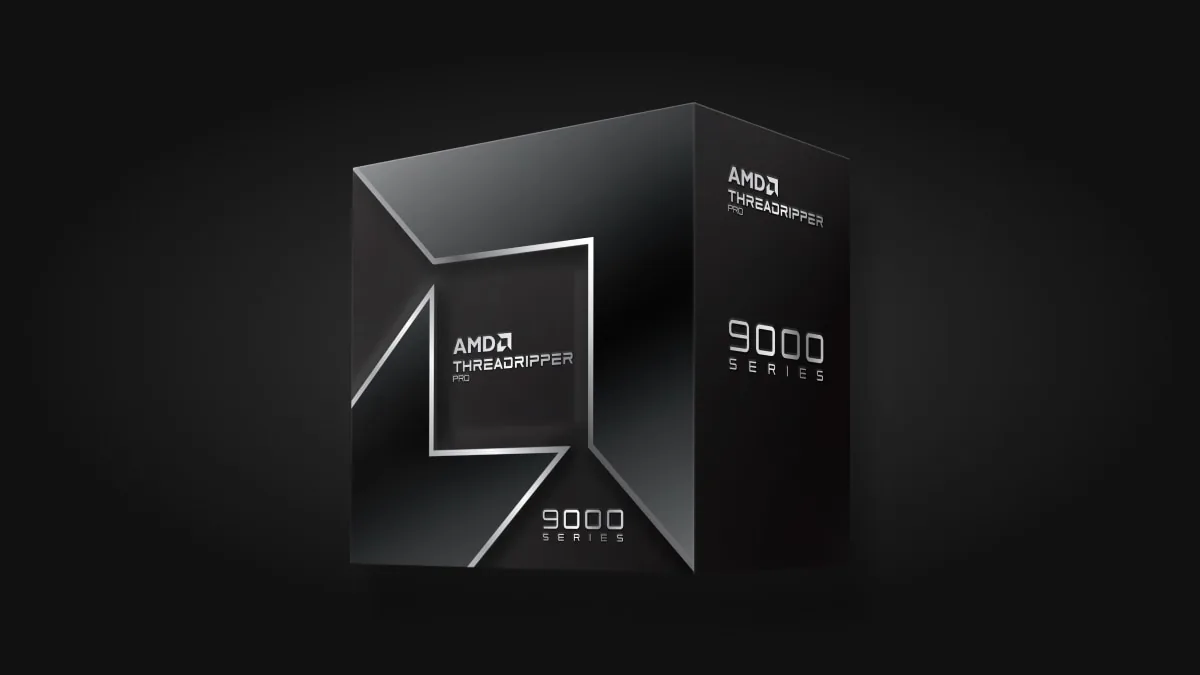

Photo: AMD exact Ryzen Threadripper PRO 9995WX product-page image; generic PRO 9000 series retail packaging without a visible model label. Complete supplied dark studio background and canvas retained; no masking or trimming.
