AMD Ryzen Threadripper PRO 9965WX

AMD · Threadripper

Ryzen Threadripper PRO 9965WX

Released July 2025

A 24-core Zen 5 workstation processor for sTR5, with eight-channel DDR5 registered memory and PCIe 5.0 expansion.

Model history · 3 models, 2022–2025
  1. 2022Ryzen Threadripper PRO 5965WXCompare
  2. 2023Ryzen Threadripper PRO 7965WXCompare
  3. 2025Ryzen Threadripper PRO 9965WX
Cores
24/48
Boost
5.4 GHz
L3
128 MB
Power
350 W
Socket
sTR5

What reviewers say

Reviews find strong CPU video, effects and audio processing performance. Puget finds it competitive in After Effects and CPU video codecs; Scan’s DAWBench testing shows substantial capacity but weaker sample-library and routing performance at the smallest ASIO buffers. Higher-core models finish heavily threaded rendering and compilation faster.

From pugetsystems.com and scanproaudio.info

Specifications

Report a wrong or missing spec

Cores and clocks

Cores
24
Threads
48
Base clock
4.2 GHz
Boost clock
5.4 GHz
L3 cache
128 MB
Cores
Shimada Peak; Zen 5 architecture. Boxed 100-100000724WOF; tray 100-000000724. AMD’s 17 July 2025 blog names this model and says PRO 9000 systems are available starting 23 July; announcement and on-sale dates are distinct.
Clocks
Precision Boost 2; Precision Boost Overdrive and Curve Optimizer voltage offsets supported
Cache
L1 1920 KB; L2 24 MB

Graphics and AI

Built-in graphics
No
Graphics
A separate graphics card is required

Platform

Socket
sTR5
Base power
350 W
Unlocked
Yes
Cooler in the box
No
Memory support
DDR5 RDIMM; eight channels; up to 6400 MT/s. ECC enabled by default; AMD EXPO supported. WRX90 supports up to 2 TB; TRX50 reduces this to four channels and up to 1 TB.
PCIe
PCIe 5.0; 148 native/platform lanes, 144 usable, including 128 PCIe 5.0 lanes with WRX90. TRX50 limits expansion to 92 total/88 usable lanes, including 80 PCIe 5.0. Four native USB 3.2 Gen 2 ports and four SATA ports; NVMe boot and RAID 0, 1, 5 and 10 supported.
Chipsets
WRX90, TRX50 and AMD PRO 695; AMD PRO technologies, DASH management and AMD Memory Guard supported. Platform capabilities depend on the motherboard; AMD’s platform guide says OEM systems do not support overclocking.
Process
CPU cores: TSMC 4 nm FinFET; I/O die: TSMC 6 nm FinFET. 5 package dies.
Cooler
Cooler not included; maximum operating temperature 95°C

Pros and cons

Pros

  • 24 cores and 48 threads
  • Eight-channel DDR5 with ECC support
  • PCIe 5.0 expansion support

Cons

  • 350 W TDP
  • Requires registered DDR5 memory
  • Cooler sold separately

Closest rivals

Model
CoresBoostL3PowerSocketReleased
AMDRyzen Threadripper 9960X
24/485.4 GHz128 MB350 WsTR5Jul 2025
AMDRyzen Threadripper 9970X
32/645.4 GHz128 MB350 WsTR5Jul 2025
AMDRyzen Threadripper PRO 9975WX
32/645.4 GHz128 MB350 WsTR5Jul 2025

Previous model: Ryzen Threadripper PRO 7965WX.

Sources

  1. amd.com/en/products/processors/workstations/ryzen-threadripper/9000-wx-series/a…
  2. amd.com/en/blogs/2025/amd-introduces-new-zen-5-based-ryzen-threadripper-pro.html

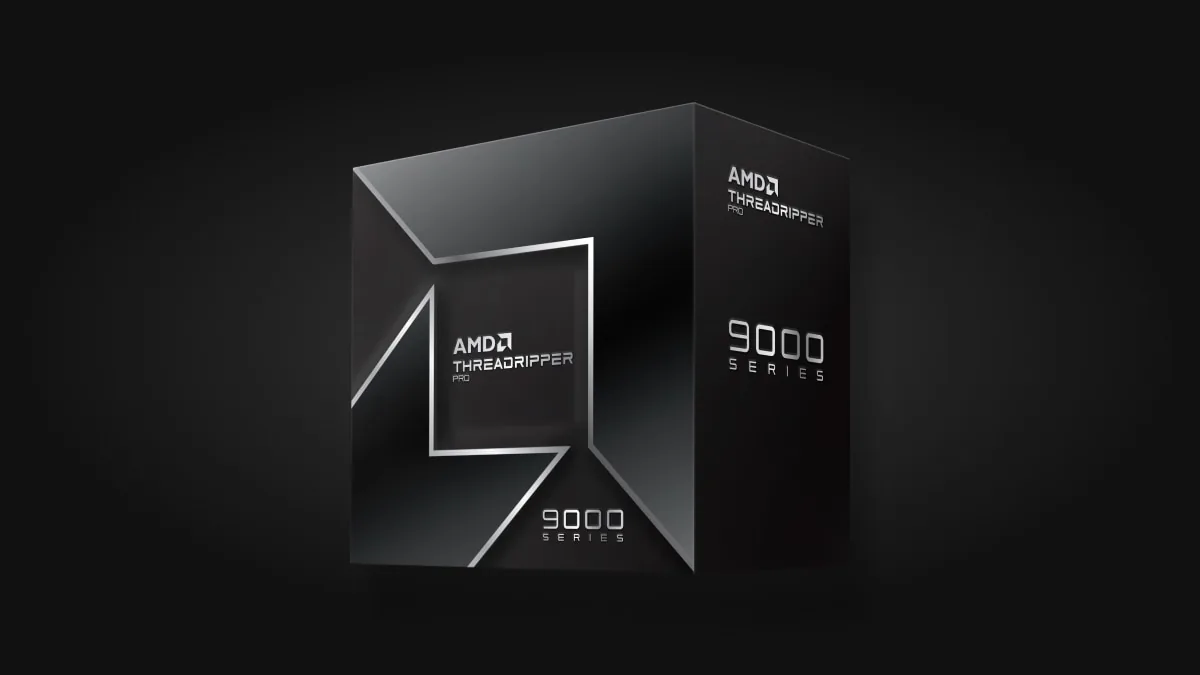

Photo: AMD exact Ryzen Threadripper PRO 9965WX product-page image; generic PRO 9000 series retail packaging without a visible model label. Complete supplied dark studio background and canvas retained; no masking or trimming.
