Apple · eMac

eMac (2005)

Released May 2005

A white all-in-one PowerPC G4 desktop with a 17-inch CRT, Radeon 9600 graphics and a choice of Combo or double-layer DVD-writing drives.

Specifications

Processor: PowerPC G4 7447A (1.42 GHz)
CPU cores: 1
Graphics: ATI Radeon 9600
Memory: 256 MB, 512 MB or 1 GB
Storage: 80 GB to 160 GB
CPU: Consumer Combo and SuperDrive versions have a 1.42 GHz PowerPC G4 with 512 KB full-speed L2 cache and no L3 cache. The separate education-only CD or no-optical-drive configurations use 1.25 GHz and Radeon 9200 hardware; their figures are not applied to this consumer record.
GPU: ATI Radeon 9600 on an AGP 4× bus. The retained Apple support table prints 63 MB DDR video memory; contemporary AppleInsider launch coverage reports 64 MB. The discrepancy is retained rather than silently changing the maker table.
Memory type: 184-pin PC2700 DDR333 SDRAM in two slots; Combo includes 256 MB and SuperDrive includes 512 MB, expandable to Apple's stated 1 GB maximum. The guide also allows PC3200 DIMMs, running at DDR333 speed without a performance benefit.
Storage type: Ultra ATA/100 7200 rpm hard drive, 80 GB with Combo drive or 160 GB with SuperDrive. Combo reads DVDs and writes CDs. SuperDrive supports 8× DVD±R writing, 4× DVD±RW writing and 2.4× double-layer DVD+R writing.

Screen size: 17″
Resolution: 1280 × 960
Panel: CRT
Display type: Flat 17-inch CRT with 16-inch viewable area. Apple's retained specification labels 1280 × 960 as native resolution; this is an analogue CRT supported mode rather than a fixed pixel matrix. A refresh figure is not published in this exact support sheet.

Ports: 3 × USB-A, Ethernet, headphone jack
Ethernet: 0.1 Gb/s
Wi-Fi: Optional AirPort Extreme 802.11g
Bluetooth: Optional Bluetooth 1.1
Back ports: Three USB 2.0 ports on the computer, plus two USB 1.0 ports on the supplied keyboard; two FireWire 400 ports; 10/100BASE-T Ethernet with Auto-MDIX; mini-VGA; audio line-in; side headphone output; optional-wireless hardware. The Combo/SuperDrive table lists a V.92 modem.
External displays: Mini-VGA RGB output supports display mirroring up to 1280 × 960; optional Apple Video Adaptor provides S-video or composite television output. Extended desktop is not supported.
Speakers: Built-in stereo speakers
Microphones: Built-in microphone at the upper left of the display

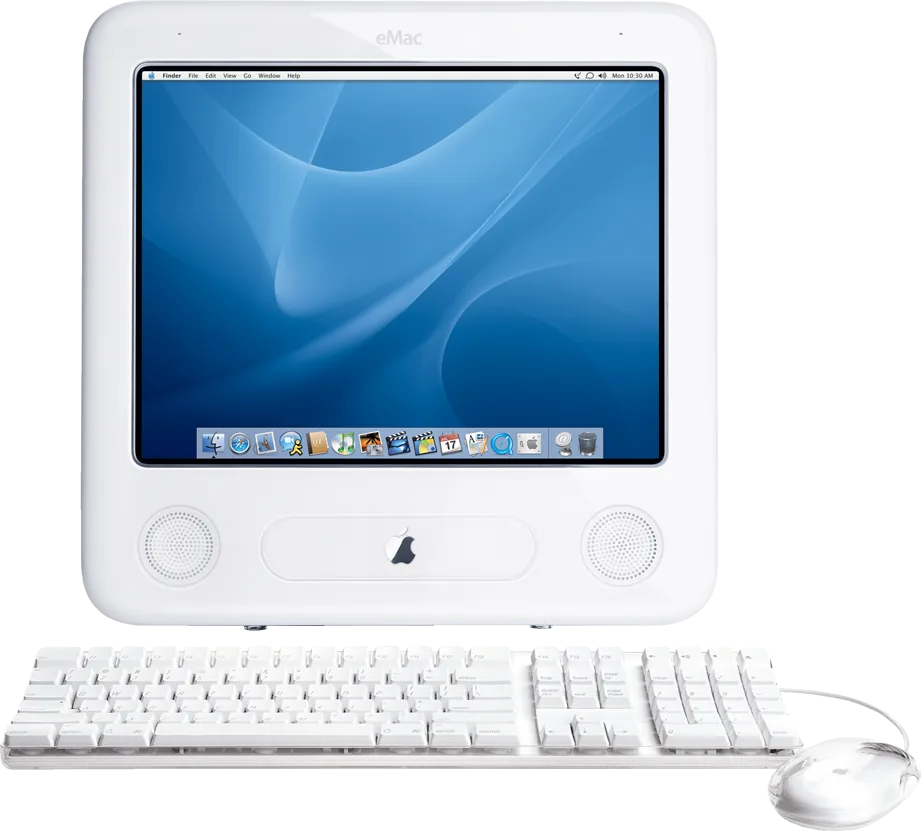

Keyboard and mouse: Apple Keyboard and Apple Mouse; the manufacturer's exact 2005 product image includes both.

Type: All-in-one
Weight: 22.7 kg
Width × depth × height: 406 × 433 × 406 mm
Operating system: macOS
Size and weight detail: Apple's metric specification gives 40.6 × 40.6 × 43.3 cm (height × width × depth) and 22.7 kg. These metric figures are retained; the inch values in the same table do not convert exactly.
Power supply: The user guide states that the eMac does not have a universal power supply. Check the voltage requirements printed inside the optical-drive door for the particular regional unit.
Colours: White
In the box: Computer, keyboard, mouse and AC cord; telephone cable where modem supplied. Launched with Mac OS X 10.4 Tiger and Classic application support. May 2005 sale evidence comes from contemporary AppleInsider launch coverage, not the March printing date of the user guide.

Processor	Memory	Storage	Storage type	Graphics
PowerPC G4 7447A (1.42 GHz)	256 MB	80 GB	Hard drive	ATI Radeon 9600
PowerPC G4 7447A (1.42 GHz)	512 MB	80 GB	Hard drive	ATI Radeon 9600
PowerPC G4 7447A (1.42 GHz)	1 GB	80 GB	Hard drive	ATI Radeon 9600
PowerPC G4 7447A (1.42 GHz)	512 MB	160 GB	Hard drive	ATI Radeon 9600
PowerPC G4 7447A (1.42 GHz)	1 GB	160 GB	Hard drive	ATI Radeon 9600

Model	Type	Processor	Memory	Storage	Screen	Weight	Released
AppleeMac (USB 2.0, 2004)	All-in-one	Freescale PowerPC G4 7447A (1.25 GHz)	256 MB – 1 GB	40 GB – 160 GB	17″	22.7 kg	Apr 2004
AppleeMac (ATI Graphics, 2003)	All-in-one	Motorola PowerPC G4 0.8 GHz (eMac ATI Graphics) or PowerPC G4 1 GHz (eMac ATI Graphics)	128 MB – 1 GB	40 GB – 80 GB	17″	22.7 kg	May 2003
AppleiMac G4 (15-inch, Early 2003)	All-in-one	Motorola PowerPC G4 800 MHz (iMac Flat Panel)	256 MB – 1 GB	60 GB	15″	9.7 kg	Feb 2003
