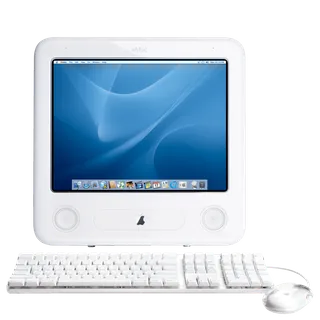

Apple eMac (2005) vs Apple eMac (ATI Graphics, 2003)

Every spec side by side, from each maker's published figures.

Better figure, where one is clearly better

AppleeMac (2005)AppleeMac (ATI Graphics, 2003)
Overview
ReleasedMay 2005May 2003
Performance
ProcessorPowerPC G4 7447A (1.42 GHz)PowerPC G4 0.8 GHz (eMac ATI Graphics) or PowerPC G4 1 GHz (eMac ATI Graphics)
CPU cores11
GraphicsATI Radeon 9600ATI Radeon 7500 (32 MB DDR)
Memory256 MB, 512 MB or 1 GB128 MB, 256 MB, 512 MB or 1 GB
Storage80 GB to 160 GB40 GB to 80 GB
CPUConsumer Combo and SuperDrive versions have a 1.42 GHz PowerPC G4 with 512 KB full-speed L2 cache and no L3 cache. The separate education-only CD or no-optical-drive configurations use 1.25 GHz and Radeon 9200 hardware; their figures are not applied to this consumer record.800 MHz or 1 GHz PowerPC G4 with Velocity Engine, 256 KB full-speed on-chip L2 cache and 133 MHz system bus. EveryMac's exact-model processor inventory identifies PowerPC 7445; Apple publishes the G4 family and clocks.
GPUATI Radeon 9600 on an AGP 4× bus. The retained Apple support table prints 63 MB DDR video memory; contemporary AppleInsider launch coverage reports 64 MB. The discrepancy is retained rather than silently changing the maker table.ATI Radeon 7500 with AGP 4× support and 32 MB dedicated DDR video memory
Memory type184-pin PC2700 DDR333 SDRAM in two slots; Combo includes 256 MB and SuperDrive includes 512 MB, expandable to Apple's stated 1 GB maximum. The guide also allows PC3200 DIMMs, running at DDR333 speed without a performance benefit.128 MB PC133 SDRAM standard with CD-ROM or Combo drives; 256 MB with SuperDrive. Two user-accessible 168-pin DIMM slots support Apple's 1 GB maximum using 128 MB, 256 MB or 512 MB DIMMs.
Storage typeUltra ATA/100 7200 rpm hard drive, 80 GB with Combo drive or 160 GB with SuperDrive. Combo reads DVDs and writes CDs. SuperDrive supports 8× DVD±R writing, 4× DVD±RW writing and 2.4× double-layer DVD+R writing.800 MHz CD-ROM model has a 40 GB Ultra ATA disk; 1 GHz Combo has 60 GB; 1 GHz SuperDrive has 80 GB. CD-ROM reads at 32×. Combo reads DVD at 8× and writes CD-R at 32×, CD-RW at 10×. SuperDrive writes DVD-R at 4×, CD-R at 16× and CD-RW at 8×. These are the generation's published base pairings; unspecified cross-configuration drives are not assumed.
Display
Screen size17″17″
Resolution1280 × 9601280 × 960
PanelCRTCRT
Display typeFlat 17-inch CRT with 16-inch viewable area. Apple's retained specification labels 1280 × 960 as native resolution; this is an analogue CRT supported mode rather than a fixed pixel matrix. A refresh figure is not published in this exact support sheet.Flat 17-inch CRT with 16-inch viewable area and 0.25 mm dot pitch. Five supported screen modes from 640 × 480 to 1280 × 960 are analogue CRT modes, not a fixed pixel matrix. External VGA timing figures are not substituted for internal display refresh.
Connections
Ports3 × USB-A, Ethernet, headphone jack3 × USB-A, Ethernet, headphone jack
Ethernet0.1 Gb/s0.1 Gb/s
Wi-FiOptional AirPort Extreme 802.11gOptional AirPort Extreme 802.11g
BluetoothOptional Bluetooth 1.1–
Back portsThree USB 2.0 ports on the computer, plus two USB 1.0 ports on the supplied keyboard; two FireWire 400 ports; 10/100BASE-T Ethernet with Auto-MDIX; mini-VGA; audio line-in; side headphone output; optional-wireless hardware. The Combo/SuperDrive table lists a V.92 modem.Three USB 1.1 ports on the computer, shared across two 12 Mbps controllers, plus two on the keyboard; two FireWire 400 ports sharing 8 W; mini-VGA; headphone and audio line-in; built-in 10/100BASE-T Ethernet and 56K V.92 modem. A D-Link USB Bluetooth adapter is an optional accessory; no built-in Bluetooth is specified.
External displaysMini-VGA RGB output supports display mirroring up to 1280 × 960; optional Apple Video Adaptor provides S-video or composite television output. Extended desktop is not supported.VGA display mirroring through an optional Apple VGA Display Adapter; S-video/composite through an optional Apple Video Adapter. Published VGA modes include 1280 × 960 at 75 Hz, 1024 × 768 up to 100 Hz and lower resolutions up to 120 Hz. Extended desktop is not supported.
SpeakersBuilt-in stereo speakersIntegrated stereo system with internal 16 W digital amplifier
MicrophonesBuilt-in microphone at the upper left of the displayBuilt-in microphone
Keyboard and mouseApple Keyboard and Apple Mouse; the manufacturer's exact 2005 product image includes both.Apple Keyboard, Apple Mouse and modem cable; optional Tilt and Swivel Stand
Design and power
TypeAll-in-oneAll-in-one
Weight22.7 kg22.7 kg
Width × depth × height406 × 433 × 406 mm406 × 433 × 406 mm
Operating systemmacOSmacOS
Size and weight detailApple's metric specification gives 40.6 × 40.6 × 43.3 cm (height × width × depth) and 22.7 kg. These metric figures are retained; the inch values in the same table do not convert exactly.Maker metric dimensions and reference weight retained. Weight varies with configuration and manufacturing process; published centimetre and inch values do not convert exactly.
Power supplyThe user guide states that the eMac does not have a universal power supply. Check the voltage requirements printed inside the optical-drive door for the particular regional unit.Configured for 100 V AC or 220 V AC according to country; 47–63 Hz, single phase
Power use–Maximum continuous electrical power 170 W
ColoursWhiteWhite
In the boxComputer, keyboard, mouse and AC cord; telephone cable where modem supplied. Launched with Mac OS X 10.4 Tiger and Classic application support. May 2005 sale evidence comes from contemporary AppleInsider launch coverage, not the March printing date of the user guide.Mac OS X 10.2 Jaguar and iLife. Apple's exact footnote permits native Mac OS 9 startup only on CD-ROM and Combo configurations; all can run Mac OS 9 applications through Classic in Mac OS X. AirPort Extreme works only in Mac OS X. Apple confirmed immediate consumer sale on 6 May 2003.
