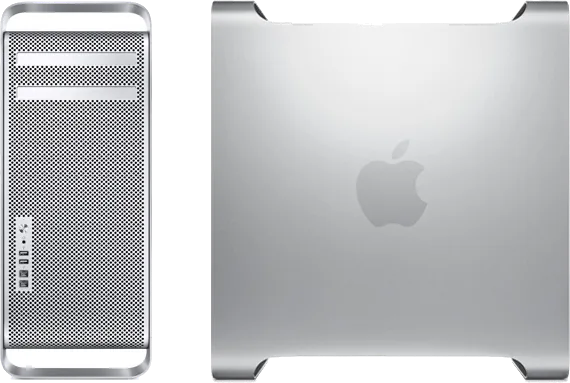

Mac Pro (Mid 2010)
An Intel Xeon tower with single- or dual-processor configurations, four internal drive bays and PCI Express expansion.
Model history · 16 models, 1999–2010
- 1999Power Mac G4 (AGP Graphics)Compare
- 2000Power Mac G4 (Gigabit Ethernet)Compare
- 2001Power Mac G4 (Digital Audio)Compare
- 2001Power Mac G4 (QuickSilver 2001)Compare
- 2002Power Mac G4 (QuickSilver 2002)Compare
- 2002Power Mac G4 (Mirrored Drive Doors 2002)Compare
- 2003Power Mac G4 (FW800)Compare
- 2003Power Mac G4 (Mirrored Drive Doors 2003)Compare
- 2003Power Mac G5 (2003)Compare
- 2004Power Mac G5 (June 2004)Compare
- 2005Power Mac G5 (Early 2005)Compare
- 2005Power Mac G5 (Late 2005)Compare
- 2006Mac Pro (2006)Compare
- 2008Mac Pro (Early 2008)Compare
- 2009Mac Pro (Early 2009)Compare
- 2010Mac Pro (Mid 2010)
- Type
- Tower
- Processor
- Intel Xeon W3530, W3565, W3680, E5620, X5650 or X5670
- Memory
- 3 GB – 32 GB
- Storage
- 512 GB – 2 TB
- Screen
- –
- Weight
- –
What reviewers say
Reviewers valued the accessible expansion, stronger graphics and quiet cooling. Extra cores brought substantial gains in well-threaded work such as 3D rendering, but Macworld and Ars found that many everyday, imaging and video tasks gained much less. The price remained high, and TechRadar criticised the lack of a Blu-ray option.
From macworld.com, arstechnica.com, techradar.com, techradar.com, techradar.com and techradar.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Intel Xeon W3530, Intel Xeon W3565, Intel Xeon W3680, 2 × Intel Xeon E5620, 2 × Intel Xeon X5650 or 2 × Intel Xeon X5670
- CPU cores
- 4, 6, 8 or 12
- CPU threads
- 8, 12, 16 or 24
- Graphics
- ATI Radeon HD 5770 (1 GB GDDR5), ATI Radeon HD 5870 (1 GB GDDR5) or 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card)
- Memory
- 3 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB or 32 GB
- Storage
- 512 GB to 2 TB
- CPU
- Standard single 2.8 GHz quad-core Xeon W3530 (Turbo Boost up to 3.06 GHz) or two 2.4 GHz quad-core Xeon E5620 processors (up to 2.66 GHz; eight physical cores and sixteen threads in total). Maker factory upgrades are a single 3.2 GHz quad-core W3565 or 3.33 GHz six-core W3680, or two six-core X5650 at 2.66 GHz or X5670 at 2.93 GHz. Processor count means physical sockets; chip core and thread figures are per processor.
- GPU
- ATI Radeon HD 5770 or HD 5870 with 1 GB GDDR5; optional two HD 5770 cards with 1 GB each. Both cards have two Mini DisplayPort outputs and one dual-link DVI port. Graphics memory is per card.
- Memory type
- Single-processor systems have four slots and dual-processor systems eight slots for DDR3 ECC SDRAM. Memory runs at 1066 MHz with 2.8/3.2 GHz single and 2.4 GHz dual processors, or 1333 MHz with the six-core processors. Factory order tables list 3, 6, 8, 12 or 16 GB for single-processor systems and 6, 8, 12, 16, 24 or 32 GB for dual systems. The current maker support sheet gives higher supported upgrade limits of 32 and 64 GB respectively using up to 8 GB DIMMs; these are distinguished from the original factory rows.
- Storage type
- Four 3.5-inch cable-free drive bays with independent 3 Gb/s SATA channels and included carriers. Factory choices per bay are a 1 or 2 TB 7200 rpm hard drive with 32 MB cache, or a 512 GB SSD; up to 8 TB with four hard drives or 2 TB with four SSDs. Configurations list one selected drive, with optional additional drives described here. Optional Mac Pro RAID Card has 512 MB cache and 72-hour battery backup; SSDs are not compatible with this card in RAID or Enhanced JBOD mode. Standard 18x double-layer SuperDrive, optional second optical drive.
- Expansion slots
- One double-wide PCI Express 2.0 x16 graphics slot and three further full-length slots (one x16 and two x4); 300 W combined maximum. All slots mechanically accept x16 cards. Optional dual- or quad-channel 4 Gb Fibre Channel card.
Display
- Screen
- None built in
Connections
- Ports
- 5 × USB-A, 2 × Ethernet, headphone jack
- Ethernet
- 1 Gb/s
- Wi-Fi
- 802.11n
- Bluetooth
- 2.1 + EDR
- Front ports
- Two USB 2.0 ports, two FireWire 800 ports and a headphone minijack
- Back ports
- Three USB 2.0 ports, two FireWire 800 ports, two independent Gigabit Ethernet ports with jumbo-frame support, optical TOSLINK audio input and output, and analogue stereo line input and output. Graphics outputs vary by card; FireWire and DVI are described here because the main port list has no fields for them. Included keyboard has two additional USB 2.0 ports, excluded from chassis counts.
- External displays
- Up to three displays with one graphics card, or six with two HD 5770 cards. Digital resolution up to 2560 × 1600 and analogue up to 2048 × 1536; optional Mini DisplayPort/DVI/VGA adapters. Multichannel audio through Mini DisplayPort.
- Speakers
- Internal speaker and front headphone output; optical and analogue audio input/output
- Keyboard and mouse
- Apple Keyboard with Numeric Keypad and Magic Mouse; optional Apple Wireless Keyboard, Apple Mouse or Magic Trackpad
Design and power
- Type
- Tower
- Width × depth × height
- 206 × 475 × 511 mm
- Operating system
- macOS
- Size and weight detail
- Standard quad-core configuration weighs 18.1 kg; standard eight-core configuration 18.7 kg. Actual weight varies by configuration and manufacturing process; a shared weight is omitted.
- Power supply
- AC input 100–120 V or 200–240 V, 50–60 Hz; maximum current 12 A at low voltage or 5 A at high voltage
- Noise
- Apple gives operator-position sound pressure of 26 dB for the 2.8 GHz model and 25 dB for the 2.4 GHz dual-processor model at idle, 26 dB for both during hard-drive access and 37 dB during optical access. Sound power is 3.6 B at idle, 3.7/3.6 B during hard-drive access and 4.6 B during optical access.
- Materials
- Recyclable aluminium enclosure; BFR-free and internal cables PVC-free
- In the box
- Mac Pro, power cord, Apple Keyboard with Numeric Keypad, Magic Mouse, USB keyboard extension cable, install/restore DVDs and documentation. Mac OS X Snow Leopard and iLife included; Mac OS X Server and professional applications optional.
Configurations
| Processor | Memory | Storage | Storage type | Graphics |
|---|---|---|---|---|
| Intel Xeon W3530 | 3 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 3 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3530 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3530 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 3 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 3 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 3 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 3 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5620 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5620 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5670 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5670 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
Pros and cons
Pros
- Four accessible internal drive bays and replaceable memory
- Dual-processor options with twelve physical CPU cores
- Two independent Gigabit Ethernet ports
Cons
- USB ports are limited to USB 2.0
- No Thunderbolt port
- Weight differs by processor configuration and exceeds 18 kg
Closest rivals
Model | Type | Processor | Memory | Storage | Screen | Weight | Released |
|---|---|---|---|---|---|---|---|
| Tower | Intel Xeon W3520, W3540, W3580, E5520, X5550 or X5570 | 3 GB – 32 GB | 640 GB – 1 TB | – | – | Mar 2009 | |
| Tower | Intel Xeon E5462, E5472 or X5482 | 2 GB – 32 GB | 300 GB – 1 TB | – | – | Jan 2008 | |
| Tower | Intel Xeon W3565, E5645, W3680, X5650 or X5675 | 6 GB – 64 GB | 512 GB – 2 TB | – | – | Jun 2012 |
Previous model: Mac Pro (Early 2009). Newer model: Mac Pro (Mid 2012).
Sources
- support.apple.com/en-gb/112578
- apple.com/uk/newsroom/2010/07/27Apple-Unveils-New-Mac-Pro-With-Up-to-12-Process…
Photo: cdsassets.apple.com
