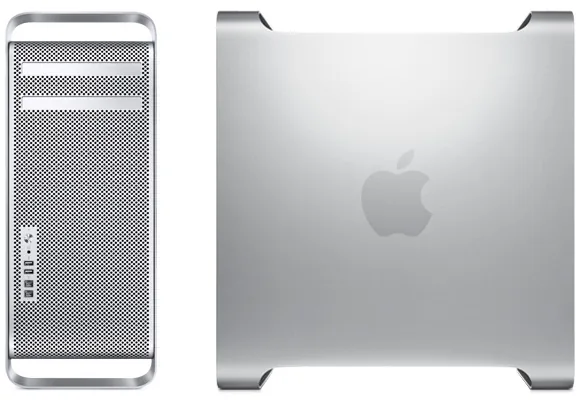

Mac Pro (Mid 2012)
An Intel Xeon tower with single- or dual-processor configurations, four internal drive bays and PCI Express expansion.
Model history · 17 models, 1999–2012
- 1999Power Mac G4 (AGP Graphics)Compare
- 2000Power Mac G4 (Gigabit Ethernet)Compare
- 2001Power Mac G4 (Digital Audio)Compare
- 2001Power Mac G4 (QuickSilver 2001)Compare
- 2002Power Mac G4 (QuickSilver 2002)Compare
- 2002Power Mac G4 (Mirrored Drive Doors 2002)Compare
- 2003Power Mac G4 (FW800)Compare
- 2003Power Mac G4 (Mirrored Drive Doors 2003)Compare
- 2003Power Mac G5 (2003)Compare
- 2004Power Mac G5 (June 2004)Compare
- 2005Power Mac G5 (Early 2005)Compare
- 2005Power Mac G5 (Late 2005)Compare
- 2006Mac Pro (2006)Compare
- 2008Mac Pro (Early 2008)Compare
- 2009Mac Pro (Early 2009)Compare
- 2010Mac Pro (Mid 2010)Compare
- 2012Mac Pro (Mid 2012)
- Type
- Tower
- Processor
- Intel Xeon W3565, E5645, W3680, X5650 or X5675
- Memory
- 6 GB – 64 GB
- Storage
- 512 GB – 2 TB
- Screen
- –
- Weight
- –
Specifications
Report a wrong or missing specPerformance
- Processor
- Intel Xeon W3565, 2 × Intel Xeon E5645, Intel Xeon W3680, 2 × Intel Xeon X5650 or 2 × Intel Xeon X5675
- CPU cores
- 4, 6 or 12
- CPU threads
- 8, 12 or 24
- Graphics
- ATI Radeon HD 5770 (1 GB GDDR5), ATI Radeon HD 5870 (1 GB GDDR5) or 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card)
- Memory
- 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 32 GB, 48 GB or 64 GB
- Storage
- 512 GB to 2 TB
- CPU
- Standard single 3.2 GHz quad-core Xeon W3565 (up to 3.46 GHz Turbo Boost) or two 2.4 GHz six-core Xeon E5645 processors (up to 2.67 GHz; twelve physical cores and 24 threads in total). Apple offers a single 3.33 GHz six-core processor or two six-core processors at 2.66 or 3.06 GHz; EveryMac identifies these original factory options as W3680, X5650 and X5675 respectively. Processor count in configurations means physical sockets, with chip figures per processor.
- GPU
- ATI Radeon HD 5770 or HD 5870 with 1 GB GDDR5; optional two HD 5770 cards with 1 GB each. Both cards have two Mini DisplayPort outputs and one dual-link DVI port. Graphics memory is per card.
- Memory type
- Single-processor systems have four slots and maker-supported memory up to 32 GB; dual-processor systems have eight slots and up to 64 GB. DDR3 ECC SDRAM at 1066 MHz with the 3.2 GHz CPU and 1333 MHz with the other listed CPUs; 1, 2, 4 or 8 GB DIMMs.
- Storage type
- Four 3.5-inch cable-free drive bays with independent 3 Gb/s SATA channels and included carriers. Each factory bay can hold a 1 or 2 TB 7200 rpm hard drive with 32 MB cache, or a 512 GB SSD. Listed configurations describe one selected drive; optional extra drives can bring total hard-drive capacity to 8 TB. One 18x double-layer SuperDrive is standard, with an optional second optical drive.
- Expansion slots
- One double-wide PCI Express 2.0 x16 graphics slot and three further full-length slots (one x16 and two x4); 300 W combined maximum. All slots mechanically accept x16 cards. Optional dual- or quad-channel 4 Gb Fibre Channel card.
Display
- Screen
- None built in
Connections
- Ports
- 5 × USB-A, 2 × Ethernet, headphone jack
- Ethernet
- 1 Gb/s
- Wi-Fi
- 802.11n
- Bluetooth
- 2.1 + EDR
- Front ports
- Two USB 2.0 ports, two FireWire 800 ports and a headphone minijack
- Back ports
- Three USB 2.0 ports, two FireWire 800 ports, two independent Gigabit Ethernet ports with jumbo-frame support, optical TOSLINK audio input and output, and analogue stereo line input and output. Graphics outputs vary by card; FireWire and DVI are described here because the main port list has no fields for them. Included keyboard has two additional USB 2.0 ports, excluded from chassis counts.
- External displays
- Up to three displays with one graphics card, or six with two HD 5770 cards. Digital resolution up to 2560 × 1600 and analogue up to 2048 × 1536; optional Mini DisplayPort/DVI/VGA adapters. Multichannel audio through Mini DisplayPort.
- Speakers
- Internal speaker and front headphone output; optical and analogue audio input/output
- Keyboard and mouse
- Apple Keyboard with Numeric Keypad and Magic Mouse; optional Apple Wireless Keyboard, Apple Mouse or Magic Trackpad
Design and power
- Type
- Tower
- Width × depth × height
- 206 × 475 × 511 mm
- Operating system
- macOS
- Size and weight detail
- Quad-core standard configuration weighs 18.1 kg; standard twelve-core configuration 18.7 kg. Actual weight varies by configuration and manufacturing process, so a shared weight is omitted.
- Power supply
- AC input 100–120 V or 200–240 V, 50–60 Hz; maximum current 12 A at low voltage or 5 A at high voltage
- Noise
- Apple gives operator-position sound pressure of 26 dB for the 3.2 GHz model and 25 dB for the 2.4 GHz dual-processor model at idle or during hard-drive access; 42 dB during optical-drive access. Corresponding sound power is 3.7/3.5 B at idle and 4.7/5.1 B during optical access.
- Materials
- Recyclable aluminium enclosure; BFR-free and internal cables PVC-free
- In the box
- Mac Pro, power cord, keyboard, Magic Mouse, USB keyboard extension cable and documentation. Current maker sheet describes OS X Mountain Lion and iLife; the generation was introduced before Mountain Lion. Apple also offered a server configuration with OS X Server, 8 GB memory and two 1 TB drives, supplied without keyboard or mouse; its distinct bundled software and drive arrangement are described here.
Configurations
| Processor | Memory | Storage | Storage type | Graphics |
|---|---|---|---|---|
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3565 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3565 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 48 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 48 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 64 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon E5645 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon E5645 | 64 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 6 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 8 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| Intel Xeon W3680 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| Intel Xeon W3680 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 48 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 48 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 64 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5650 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5650 | 64 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 12 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 12 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 16 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 16 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 24 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 24 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 32 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 32 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 48 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 48 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 64 GB | 512 GB | SSD | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 512 GB | SSD | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 512 GB | SSD | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 1 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 1 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
| 2 × Intel Xeon X5675 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5770 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 2 TB | Hard drive | ATI Radeon HD 5870 (1 GB GDDR5) |
| 2 × Intel Xeon X5675 | 64 GB | 2 TB | Hard drive | 2 × ATI Radeon HD 5770 (1 GB GDDR5 per card) |
Pros and cons
Pros
- Four accessible internal drive bays and replaceable memory
- Dual-processor options with twelve physical CPU cores
- Two independent Gigabit Ethernet ports
Cons
- USB ports are limited to USB 2.0
- No Thunderbolt port
- Weight differs by processor configuration and exceeds 18 kg
Closest rivals
Model | Type | Processor | Memory | Storage | Screen | Weight | Released |
|---|---|---|---|---|---|---|---|
| Tower | Intel Xeon W3530, W3565, W3680, E5620, X5650 or X5670 | 3 GB – 32 GB | 512 GB – 2 TB | – | – | Aug 2010 | |
| Tower | Intel Xeon W3520, W3540, W3580, E5520, X5550 or X5570 | 3 GB – 32 GB | 640 GB – 1 TB | – | – | Mar 2009 | |
| Compact | Intel Xeon E5-1620 v2, Xeon E5-1650 v2, Xeon E5-1680 v2 or Xeon E5-2697 v2 | 12 GB – 64 GB | 256 GB – 1 TB | – | 5 kg | Dec 2013 |
Previous model: Mac Pro (Mid 2010). Newer model: Mac Pro (Late 2013).
Sources
- support.apple.com/en-gb/118464
- apple.com/environment/reports/docs/macpro_per_june2012.pdf
- everymac.com/systems/apple/mac_pro/faq/mac-pro-mid-2010-westmere-how-to-upgrade…
Photo: cdsassets.apple.com
