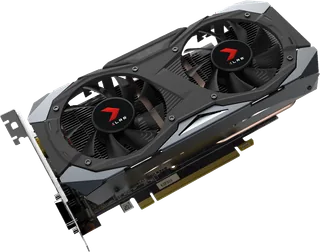

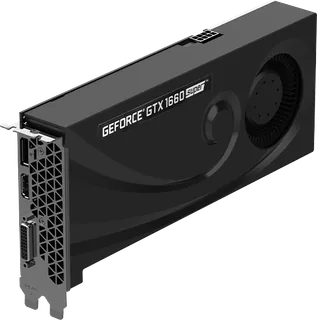

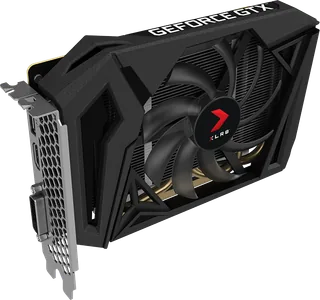

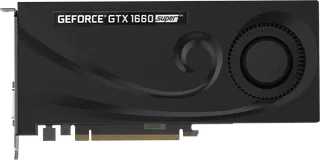

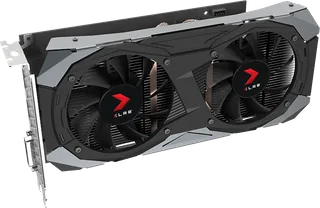

NVIDIA GeForce GTX 1660 SUPER · Photo source

NVIDIA GeForce GTX 1660 SUPER
Photo 1 of 34

NVIDIA GeForce GTX 1660 SUPER · Photo source

NVIDIA · GeForce

GeForce GTX 1660 SUPER

Released October 2019

A 2019 Turing graphics card with 6 GB of GDDR6 memory, retaining the GTX 1660's core count with faster memory.

Memory
6 GB
Shaders
1,408
Boost clock
1,785 MHz
Bandwidth
336 GB/s
Power
125 W

What reviewers say

Reviewers praised strong 1080p performance close to the GTX 1660 Ti and its launch value, while noting the absence of hardware RTX features. PC Gamer and TechRadar tested EVGA's SC Ultra; PCWorld tested PNY's Single Fan. Their cooling and noise findings apply to those boards rather than every GTX 1660 SUPER.

From pcgamer.com, techradar.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Turing
Shader cores
1,408
Boost clock
1,785 MHz
Architecture

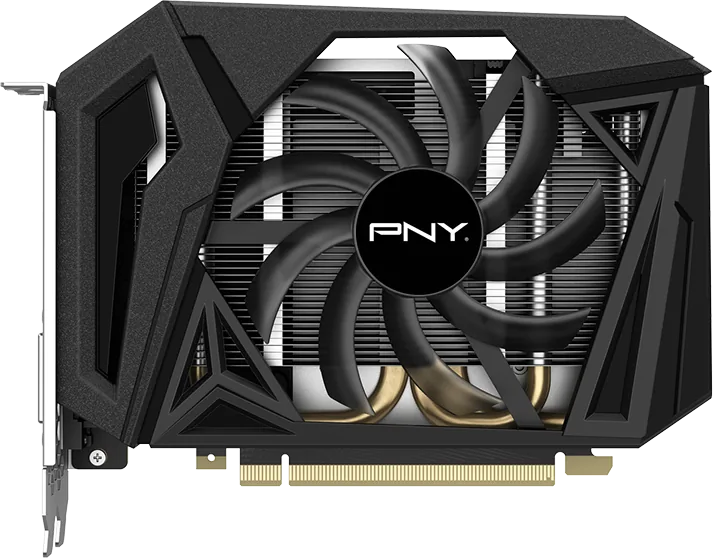

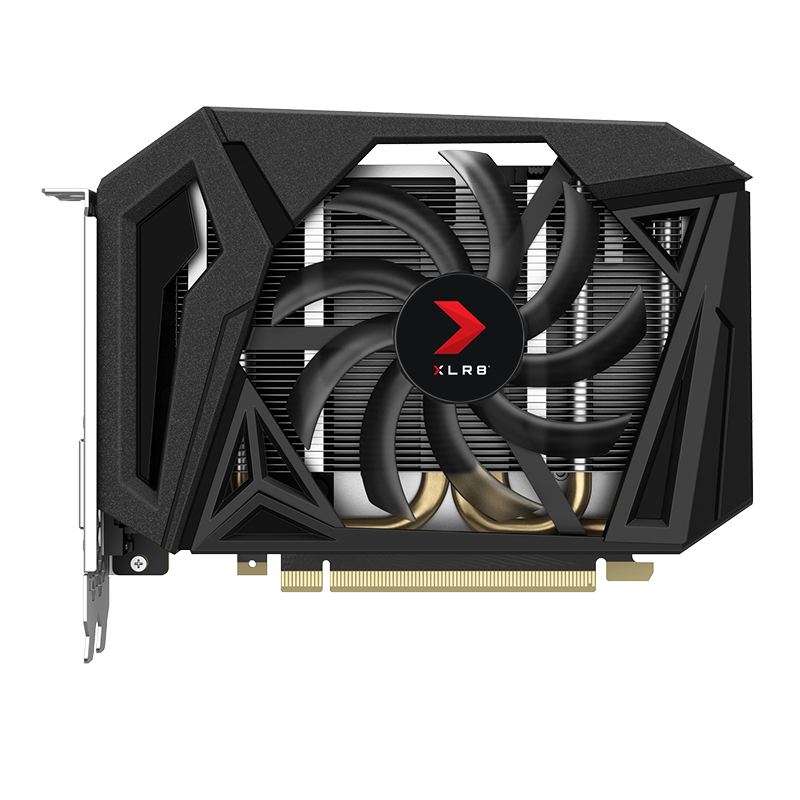

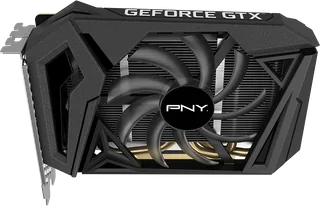

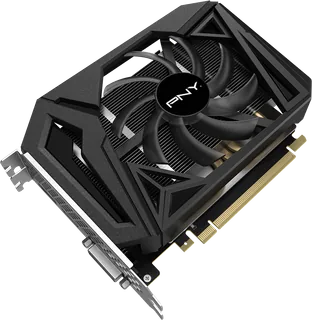

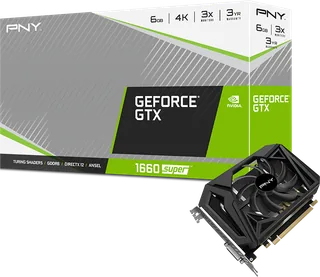

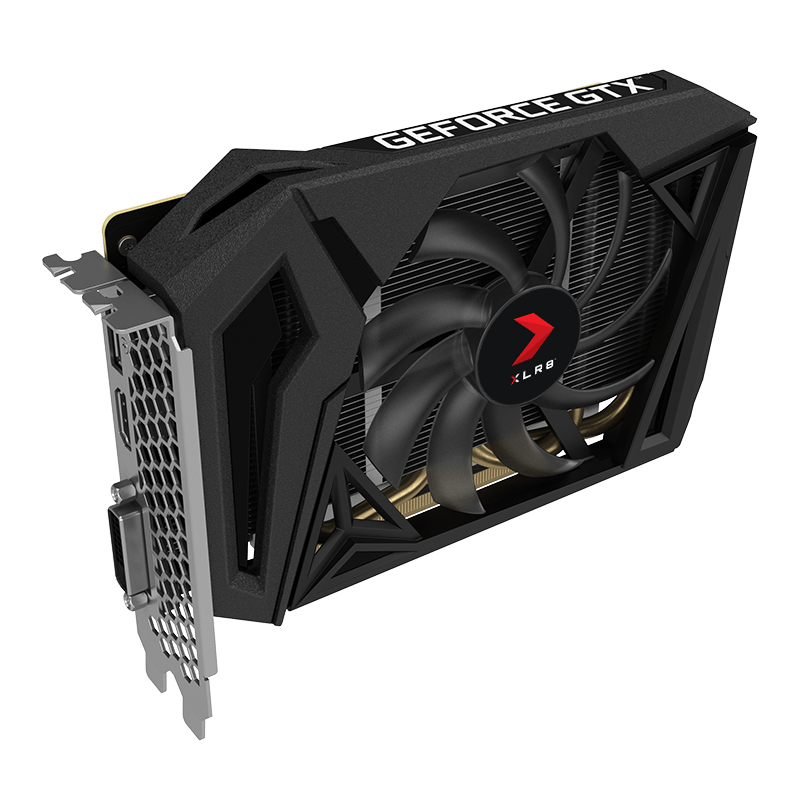

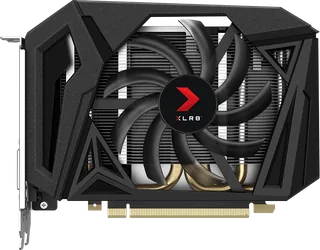

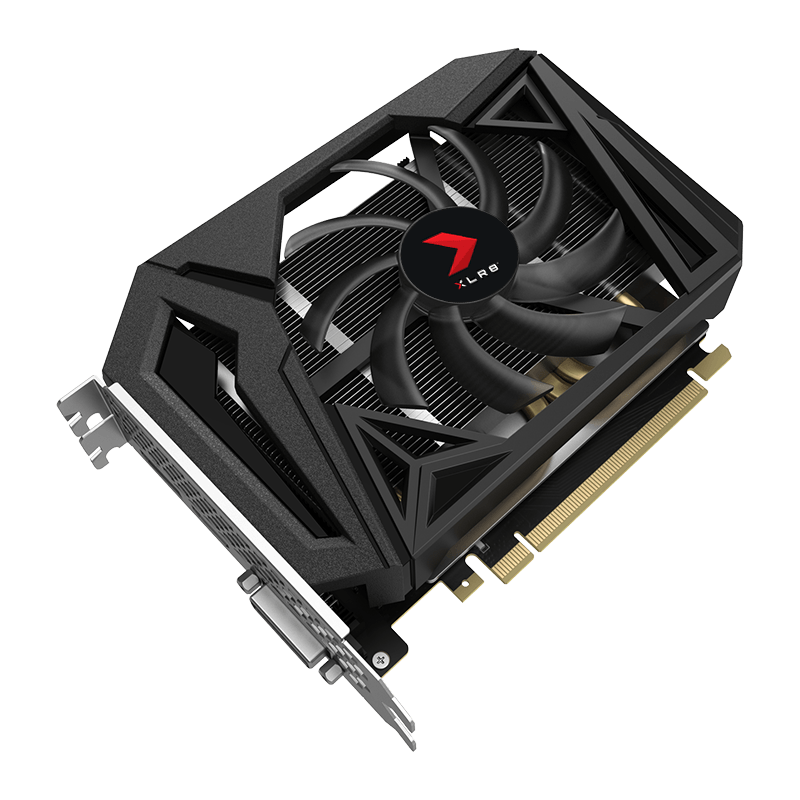

NVIDIA reference GPU figures; the photo shows PNY's stock-clock Single Fan partner card. There is no retail Founders Edition.
Ray tracing
No hardware RT Cores
AI cores
No Tensor Cores
Upscaling and frame generation
No NVIDIA DLSS support
Base clock
1,530 MHz

Memory

Video memory
6 GB GDDR6
Memory bus
192-bit
Memory bandwidth
336 GB/s
Memory detail
14 Gbps GDDR6; PNY publishes 336 GB/sec bandwidth

Connections and power

Board power
125 W
Interface
PCIe 3.0
Display outputs

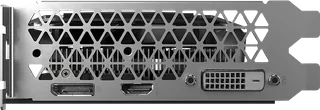

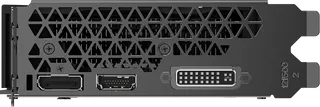

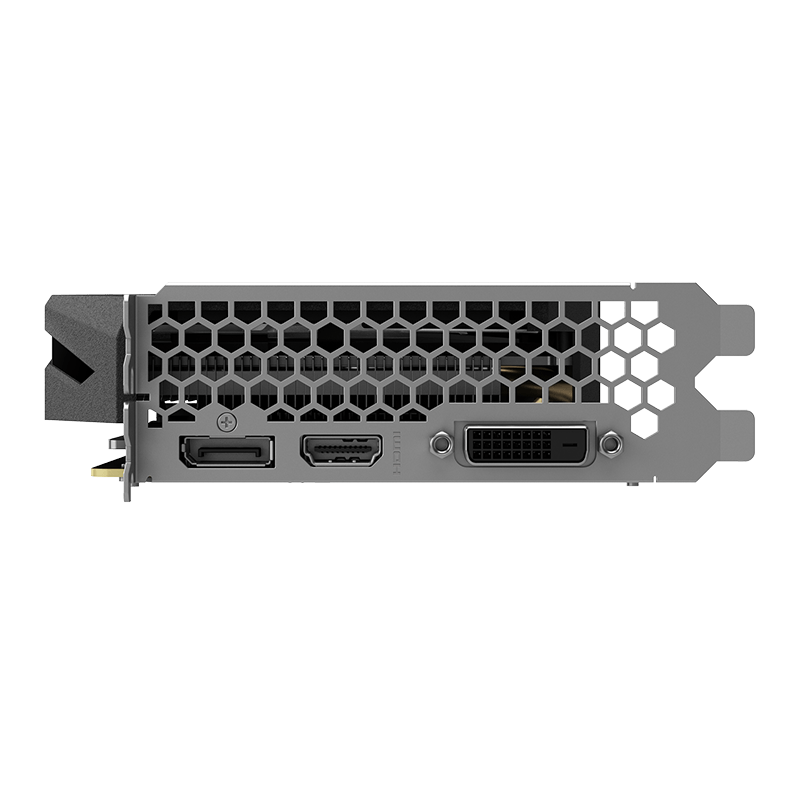

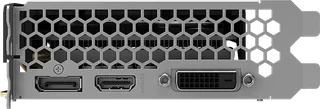

Pictured PNY Single Fan has DisplayPort 1.4, HDMI 2.0b and DVI-D; partner layouts vary
Maximum resolution
7680 × 4320 on PNY's specification
Power connector
1 × 8-pin
Recommended power supply
NVIDIA specifies 450 W; requirements depend on the system
Slot width
Two slots for PNY's pictured Single Fan and NVIDIA's reference specification
Size (reference card)
NVIDIA reference is 145 × 111 mm; pictured PNY Single Fan is 1.57 × 6.61 × 4.96 inches
Video encode and decode
Turing NVIDIA Encoder; PNY specifies PCIe 3.0 x16

Pros and cons

Pros

  • 6 GB of GDDR6 on a 192-bit memory bus
  • Turing hardware video encoder
  • Published 125 W graphics-card power

Cons

  • No hardware RT or Tensor Cores
  • No NVIDIA DLSS support
  • Requires an eight-pin power connector

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce GTX 1660 Ti
6 GB1,5361,770 MHz–120 WFeb 2019
NVIDIAGeForce GTX 1650 SUPER
4 GB1,2801,725 MHz–100 WNov 2019
AMDRadeon RX 6600
8 GB1,7922,491 MHz224 GB/s132 WOct 2021

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/compare
  2. nvidianews.nvidia.com/news/a-hero-for-every-gamer-nvidia-introduces-new-geforce…
  3. pny.com/pny-geforce-gtx-1660-super-6gb-single-fan
