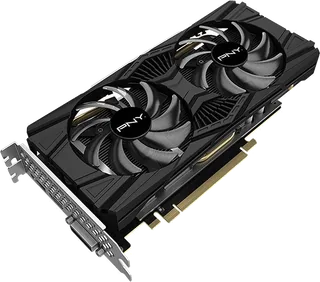

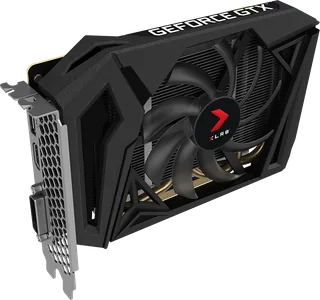

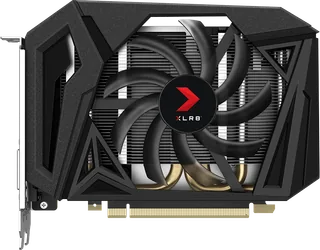

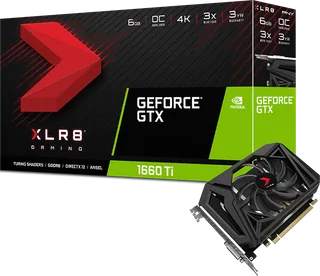

Photo 1 of 21

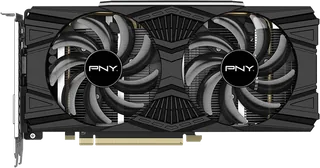

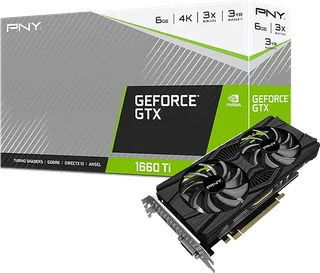

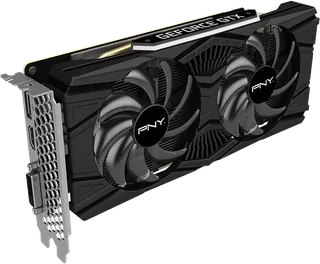

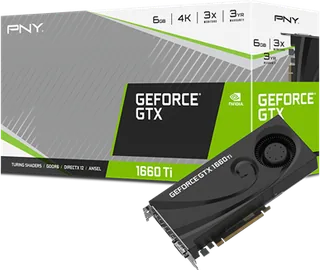

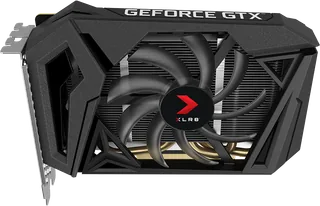

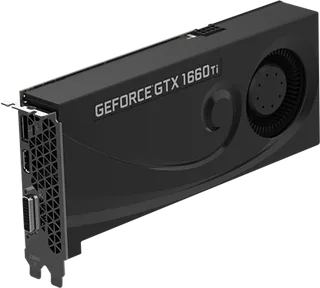

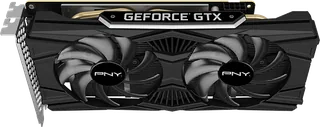

NVIDIA GeForce GTX 1660 Ti · Photo source

NVIDIA GeForce GTX 1660 Ti
Photo 1 of 21

NVIDIA GeForce GTX 1660 Ti · Photo source

NVIDIA · GeForce

GeForce GTX 1660 Ti

Released February 2019

A Turing graphics card with 6 GB of GDDR6 memory, introduced for 1080p gaming without RTX hardware.

Model history · 2 models, 2016–2019
  1. 2016GeForce GTX 1060Compare
  2. 2019GeForce GTX 1660 Ti
Memory
6 GB
Shaders
1,536
Boost clock
1,770 MHz
Bandwidth
–
Power
120 W

What reviewers say

Reviewers praise strong 1080p performance, efficiency and results near the GTX 1070. Demanding 1440p games need settings reduced, while the RTX 2060 offers more headroom and RTX features. PC Gamer and PCWorld test overclocked ASUS ROG Strix boards; their cooler praise and price reservations concern that partner design.

From pcgamer.com, expertreviews.co.uk and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Turing
Shader cores
1,536
Boost clock
1,770 MHz
Architecture

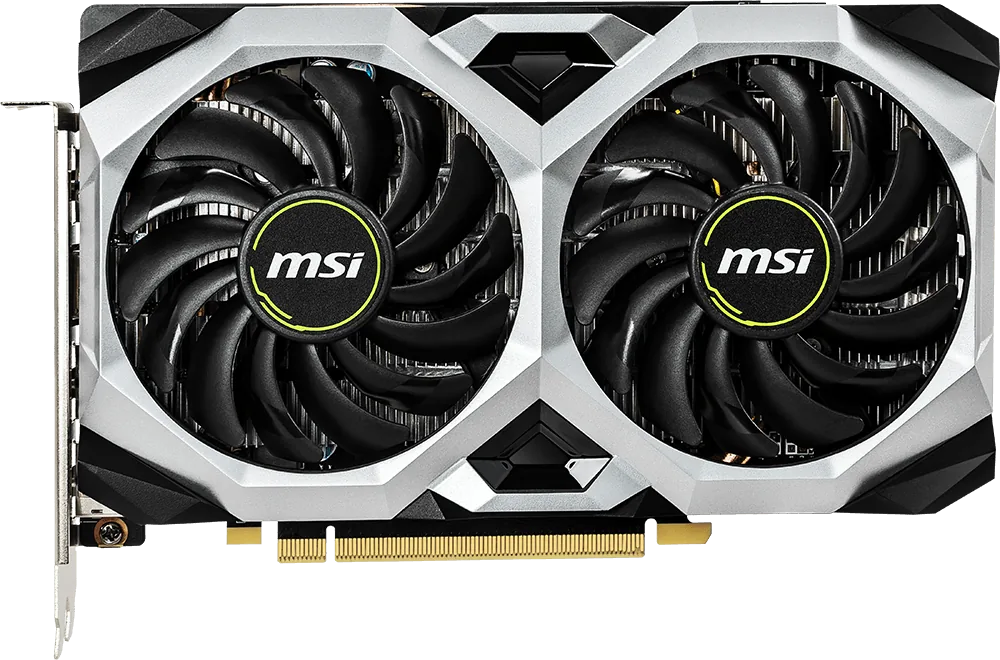

NVIDIA reference figures; no Founders Edition was sold. Photo shows MSI's stock-clocked GTX 1660 Ti VENTUS XS 6G, whose dimensions and outputs are specified below.
Ray tracing
No dedicated RT Cores
AI cores
No Tensor Cores
Upscaling and frame generation
No NVIDIA DLSS
Base clock
1500 MHz

Memory

Video memory
6 GB GDDR6
Memory bus
192-bit
Memory detail
12 Gbps GDDR6 (MSI VENTUS XS 6G); numerical bandwidth omitted because the maker sources used do not publish it.

Connections and power

Board power
120 W
Interface
PCIe 3.0
Display outputs
3 × DisplayPort 1.4a and 1 × HDMI 2.0b; up to 4 displays; HDCP 2.2 (MSI VENTUS XS 6G)
Maximum resolution
7680 × 4320 (MSI VENTUS XS 6G)
Power connector
1 × 8-pin
Recommended power supply
450 W
Size (reference card)
204 × 128 × 42 mm and 669 g (pictured MSI VENTUS XS 6G). NVIDIA's reference dimensions are 145 × 111 mm, two slots; actual partner boards vary.
Video encode and decode
Turing NVENC encoder, also used by the contemporary RTX range

Pros and cons

Pros

  • 6 GB of GDDR6 memory
  • Turing NVENC video encoder
  • 120 W reference board power

Cons

  • No dedicated ray tracing or Tensor Cores
  • No NVIDIA DLSS
  • Requires an 8-pin power connector

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce GTX 1660 SUPER
6 GB1,4081,785 MHz336 GB/s125 WOct 2019
NVIDIAGeForce GTX 1650 SUPER
4 GB1,2801,725 MHz–100 WNov 2019
AMDRadeon RX 6600
8 GB1,7922,491 MHz224 GB/s132 WOct 2021

Previous model: GeForce GTX 1060.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/compare
  2. storage-asset.msi.com/datasheet/vga/global/GeForce-GTX-1660-Ti-VENTUS-XS-6G.pdf
  3. nvidia.com/en-in/geforce/news/nvidia-geforce-gtx-1660-ti
