NVIDIA GeForce RTX 3070 Ti · Photo source

NVIDIA GeForce RTX 3070 Ti
Photo 1 of 24

NVIDIA GeForce RTX 3070 Ti · Photo source

NVIDIA · GeForce

GeForce RTX 3070 Ti

Released June 2021

A 2021 Ampere graphics card with 8 GB of GDDR6X memory and a 290 W power rating, positioned above the RTX 3070.

Memory
8 GB
Shaders
6,144
Boost clock
1,770 MHz
Bandwidth
608 GB/s
Power
290 W

What reviewers say

Reviewers find strong 1440p performance, but a small improvement over the RTX 3070 alongside substantially higher power use. They question its value against the cheaper RTX 3070 and faster RTX 3080. PC Gamer and PCWorld criticise Founders Edition temperatures; PCWorld also questions whether 8 GB will remain sufficient for demanding 4K games.

From pcgamer.com, techradar.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ampere
Shader cores
6,144
Boost clock
1,770 MHz
Architecture

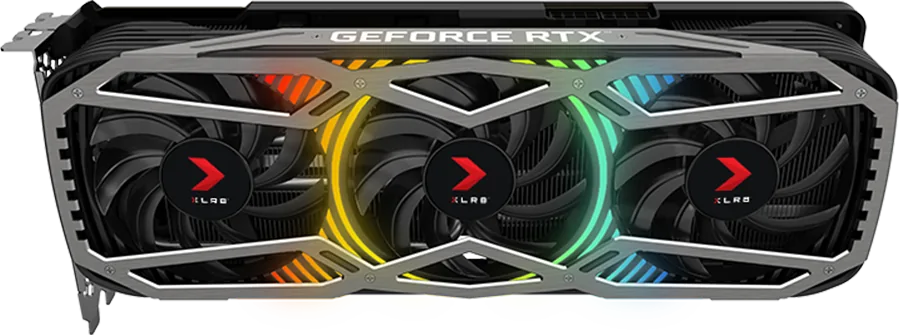

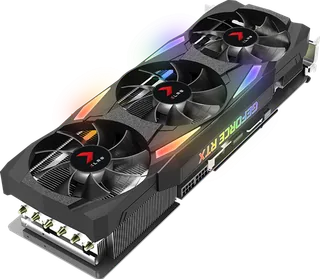

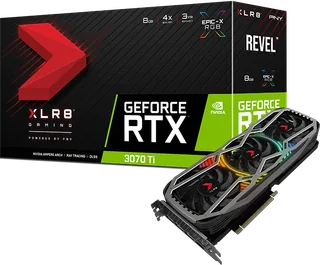

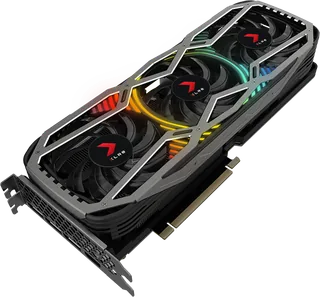

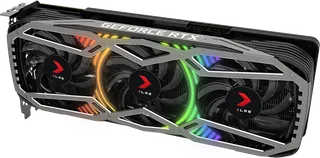

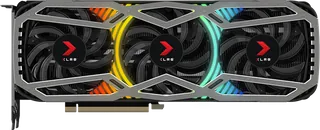

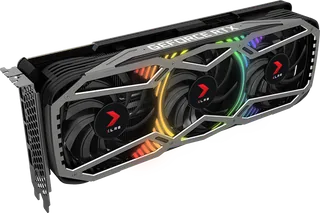

NVIDIA reference specifications. The photo shows PNY's stock-clock XLR8 Gaming REVEL EPIC-X RGB Triple Fan; its cooler differs from the Founders Edition geometry below.
Ray tracing
Second-generation RT Cores
AI cores
Third-generation Tensor Cores
Upscaling and frame generation
NVIDIA DLSS upscaling; no DLSS Frame Generation
Base clock
NVIDIA lists 1.58 GHz rounded; stock-clock PNY REVEL specifies 1575 MHz base and 1770 MHz boost

Memory

Video memory
8 GB GDDR6X
Memory bus
256-bit
Memory bandwidth
608 GB/s
Memory detail
19 Gbps GDDR6X; 608 GB/s bandwidth verified by PNY's stock-clock REVEL specification

Connections and power

Board power
290 W
Interface
PCIe 4.0
Display outputs

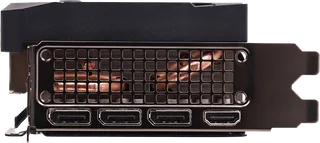

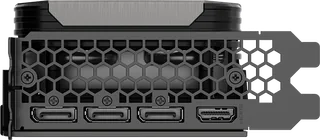

3 × DisplayPort 1.4a, 1 × HDMI 2.1; up to 4 displays; HDCP 2.3
Maximum resolution
7680 × 4320; HDMI supports 4K 120 Hz HDR or 8K 60 Hz HDR; DisplayPort supports 4K 240 Hz with DSC
Power connector
2 × PCIe 8-pin cables through the included adapter to 1 × 12-pin (Founders Edition)
Recommended power supply
750 W, based on NVIDIA's Intel Core i9-10900K test system
Slot width
2-slot (Founders Edition)
Size (reference card)
267 × 112 mm, 2-slot (Founders Edition)
Video encode and decode
Seventh-generation NVENC and fifth-generation NVDEC; no hardware AV1 encoding

Pros and cons

Pros

  • Hardware ray tracing and DLSS upscaling
  • 608 GB/s memory bandwidth
  • HDMI 2.1 and DisplayPort 1.4a outputs

Cons

  • 8 GB of video memory
  • 290 W graphics card power
  • No hardware AV1 encoding or DLSS Frame Generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 3070
8 GB5,8881,730 MHz448 GB/s220 WOct 2020
NVIDIAGeForce RTX 3060 Ti
8 GB4,8641,670 MHz448 GB/s or 608 GB/s200 W or –Dec 2020
AMDRadeon RX 7900 XT
20 GB5,3762,400 MHz800 GB/s315 WDec 2022

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/30-series/rtx-3070-3070ti
  2. pny.com/geforce-rtx-3070-ti-revel
  3. nvidianews.nvidia.com/news/its-time-for-ti-nvidia-introduces-gaming-flagship-th…
  4. pcworld.com/article/394671/nvidia-geforce-rtx-3070-ti-review.html
