AMD · Radeon

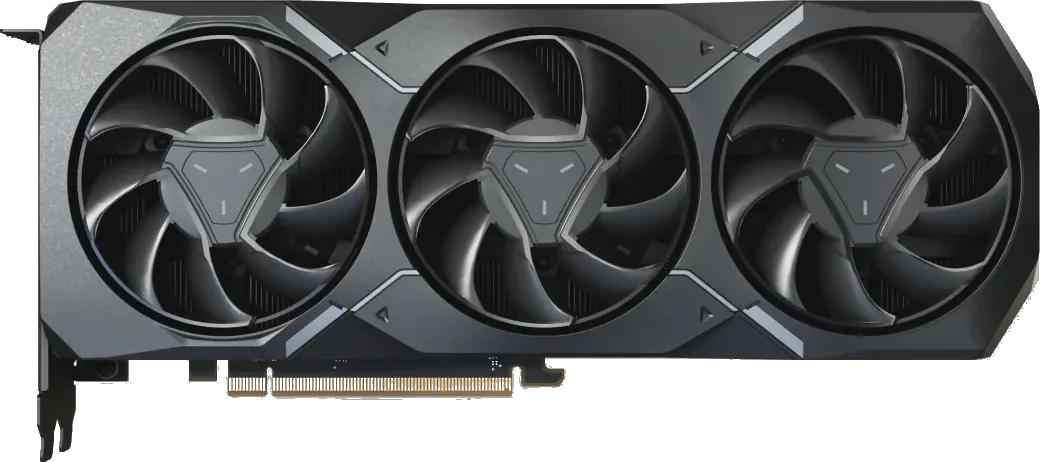

Radeon RX 7900 XT
A cut-down version of AMD's RDNA 3 flagship, with 20 GB of GDDR6, aimed at 1440p and 4K gaming.
- Memory
- 20 GB
- Shaders
- 5,376
- Boost clock
- 2,400 MHz
- Bandwidth
- 800 GB/s
- Power
- 315 W
What reviewers say
Reviewers agree it is a fast 4K card with plenty of memory, clearly quicker than the RX 6950 XT, in a well-designed reference cooler. All of them found it hard to recommend at launch because the faster RX 7900 XTX cost only a little more; power draw is high, and ray tracing still trails NVIDIA.
From tomshardware.com, pcgamer.com, techradar.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 3
- Shader cores
- 5,376
- Boost clock
- 2,400 MHz
- Architecture
- 84 compute units, 192 ROPs; game clock 2000 MHz; 58 billion transistors
- Manufacturing process
- Chiplet design; 5nm Graphics Compute Die with 6nm Memory Cache Dies
- Ray tracing
- 84 second-generation Ray Accelerators
- AI cores
- 168 AI Accelerators; 103 TOPS INT8
- Upscaling and frame generation
- AMD FSR, Radeon Super Resolution
- Cache
- 80 MB AMD Infinity Cache (second generation)
Memory
- Video memory
- 20 GB GDDR6
- Memory bus
- 320-bit
- Memory bandwidth
- 800 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps; AMD quotes up to 2900 GB/s effective bandwidth with Infinity Cache
Connections and power
- Board power
- 315 W
- Display outputs
- DisplayPort 2.1 (UHBR 13.5), HDMI 2.1a, USB Type-C
- Maximum resolution
- Up to 4K 480 Hz or 8K 165 Hz over DisplayPort 2.1
- Power connector
- 2 × 8-pin
- Recommended power supply
- 750 W
- Slot width
- 2.5-slot (reference card)
- Size (reference card)
- 276 mm long, 2.5-slot (reference card)
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 20 GB of 20 Gbps GDDR6 on a 320-bit bus (800 GB/s)
- 80 MB of Infinity Cache
- DisplayPort 2.1 outputs, plus USB-C on AMD's reference card
Cons
- 315 W typical board power; AMD recommends a 750 W power supply
- 84 compute units against the RX 7900 XTX's 96
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 24 GB | 6,144 | 2,500 MHz | 960 GB/s | 355 W | Dec 2022 | |
| 16 GB or 8 GB | 4,096 | – | 560 GB/s or 512 GB/s | 225 W | Oct 2022 | |
| 16 GB | 9,728 | 2,510 MHz | 716.8 GB/s | 320 W | Nov 2022 |
