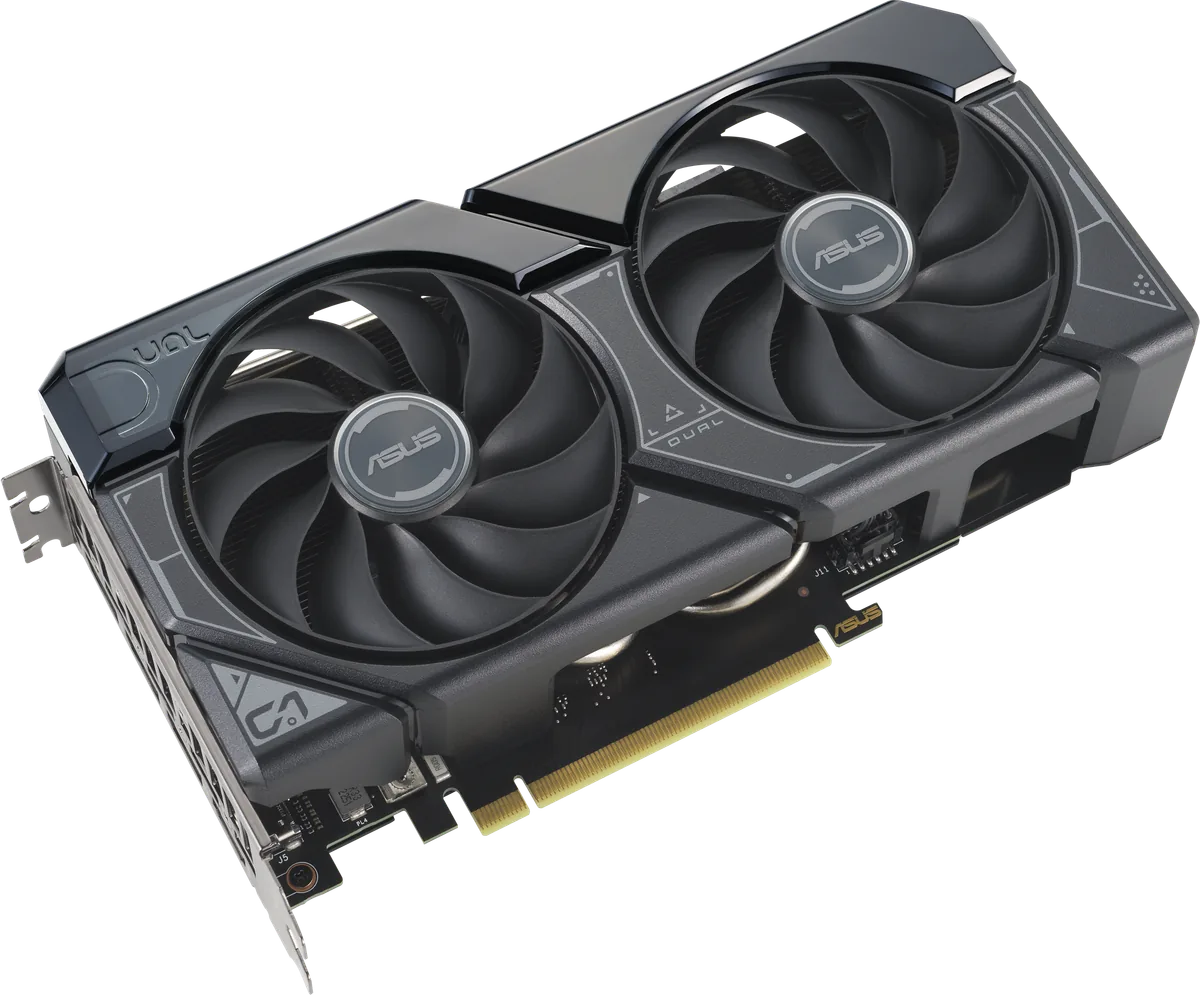

NVIDIA GeForce RTX 4060 · Photo source

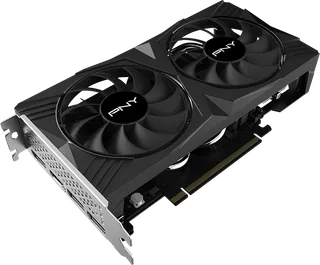

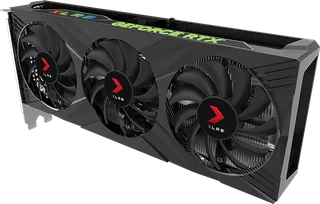

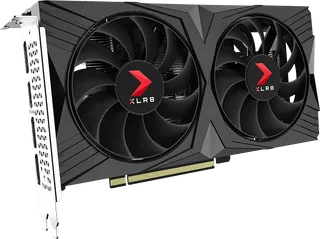

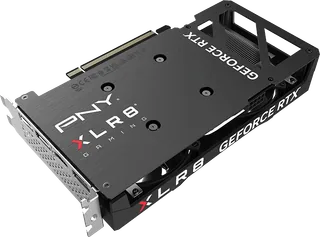

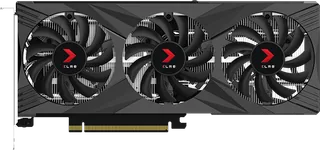

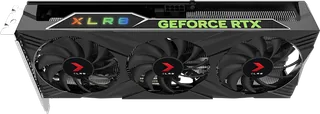

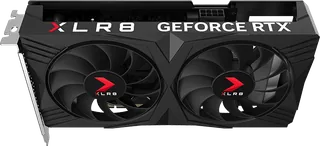

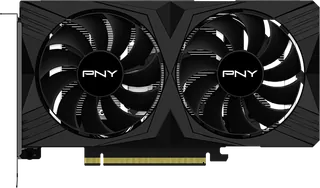

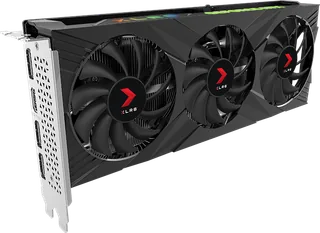

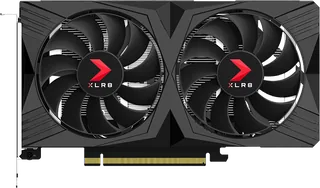

NVIDIA GeForce RTX 4060
Photo 1 of 25

NVIDIA GeForce RTX 4060 · Photo source

NVIDIA · GeForce

GeForce RTX 4060

Released June 2023

An entry-level Ada Lovelace graphics card with 8 GB of GDDR6, sold only as partner cards, aimed at 1080p gaming.

Memory
8 GB
Shaders
3,072
Boost clock
2,460 MHz
Bandwidth
272 GB/s
Power
115 W

What reviewers say

Reviewers agree it is a very efficient 1080p card that beats the RTX 3060, with DLSS 3 frame generation as a bonus. The common criticisms are that its 8 GB of memory and 128-bit bus are a step back from the RTX 3060, limiting it above 1080p, and that the generational gain is small; PC Gamer likened it to an xx50-class card.

From tomshardware.com, pcgamer.com and kitguru.net

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ada Lovelace
Shader cores
3,072
Boost clock
2,460 MHz
Ray tracing
Third-generation RT Cores; 35 RT TFLOPS
AI cores
Fourth-generation Tensor Cores; 242 AI TOPS
Upscaling and frame generation
DLSS 3.5 with Super Resolution, DLAA, Ray Reconstruction and Frame Generation
Base clock
1.83 GHz
Cache
24 MB L2

Memory

Video memory
8 GB GDDR6
Memory bus
128-bit
Memory bandwidth
272 GB/s
Memory detail
NVIDIA quotes 453 GB/s effective bandwidth with the L2 cache

Connections and power

Board power
115 W
Interface
PCIe 4.0

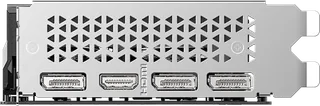

Display outputs

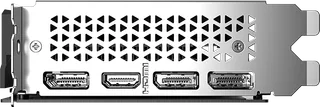

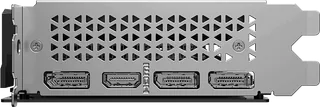

3 × DisplayPort 1.4a, 1 × HDMI 2.1a; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 240 Hz or 8K at 60 Hz with DSC
Power connector

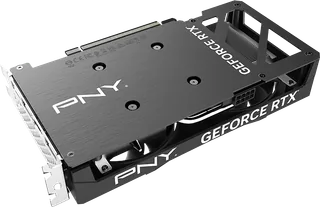

1 × PCIe 8-pin cable, or a 300 W or greater PCIe Gen 5 cable (adapter in the box); some partner cards use 1 × 6-pin
Recommended power supply
550 W
Slot width
2-slot
Video encode and decode
1 × eighth-generation NVENC, 1 × fifth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • 115 W total graphics power; runs from a 550 W power supply
  • Eighth-generation NVENC with AV1 encoding
  • DLSS 3 Frame Generation support

Cons

  • 8 GB of video memory on a 128-bit bus (272 GB/s)
  • DisplayPort 1.4a outputs; no DLSS Multi Frame Generation
  • No Founders Edition; size and cooling vary by manufacturer

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 7600
8 GB2,0482,655 MHz288 GB/s165 WMay 2023
NVIDIAGeForce RTX 3050
8 GB or 6 GB2,560 or 2,3041,780 MHz or 1,470 MHz224 GB/s or –130 W or 70 WJan 2022
AMDRadeon RX 7700 XT
12 GB3,4562,544 MHz432 GB/s245 WSept 2023

Newer model: GeForce RTX 5060.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/40-series/rtx-4060-4060ti
  2. nvidia.com/en-gb/geforce/graphics-cards/compare
  3. nvidia.com/en-gb/geforce/news/geforce-rtx-4060-4060ti
  4. nvidia.com/en-gb/geforce/news/geforce-rtx-4060-available-june-29
  5. nvidia.com/en-us/geforce/news/geforce-rtx-4060-available-june-29
